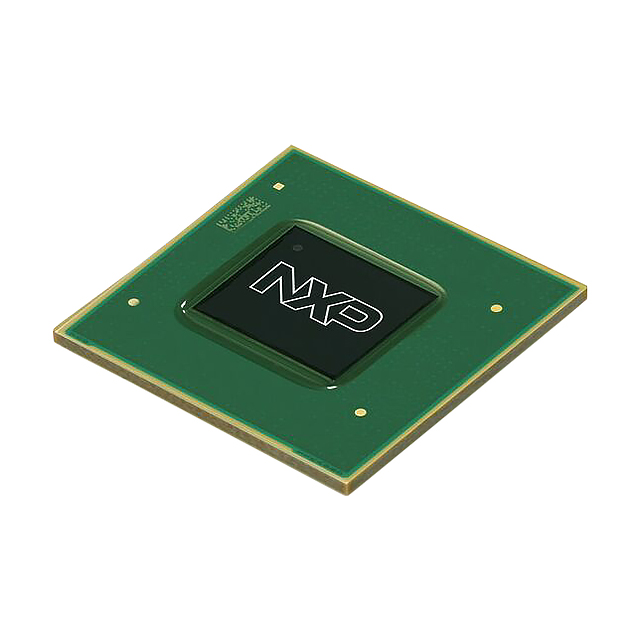

MIMX8MQ6DVAJZAB

The MIMX8MQ6DVAJZAB is a consumer‑qualified microprocessor from NXP’s i.MX 8MQ family featuring a quad Arm® Cortex®‑A53 application cluster operating up to 1.5 GHz plus an integrated Cortex‑M4 co‑processor for low‑power tasks. Designed for connected streaming audio/video devices, scanning and imaging equipment, and other high‑performance, low‑power products, the device combines multi‑core compute, graphics acceleration, and rich I/O to support multimedia and sensor‑heavy applications.

With flexible DRAM controller support (DDR3L, DDR4, LPDDR4), multiple display and camera interfaces, GbE and USB 3.0 connectivity, and on‑chip security engines, this 621‑FCPBGA (17×17 mm) package targets designs that require performance, integration, and a compact surface‑mount form factor.

Key Features

• Core architecture Quad Arm® Cortex®‑A53 cores (64‑bit) running up to 1.5 GHz for main application processing.
• Co‑processor Integrated Arm® Cortex®‑M4 for low‑power real‑time processing and offload tasks.
• Memory support DRAM controller compatible with DDR3L, DDR4 and LPDDR4 memory types to match diverse system memory requirements.
• Graphics and video Graphics acceleration is present; the i.MX 8M Quad / Dual families include hardware acceleration for video playback (series‑level capability).
• Display and camera interfaces Multiple controllers including eDP, HDMI, MIPI‑CSI and MIPI‑DSI enable multi‑display and camera connectivity.
• High‑speed I/O Dual USB 3.0 ports and GbE provide high‑throughput peripheral and network connectivity.
• Additional interfaces External bus interfaces (EBI/EMI) expand peripheral and memory attachment options.
• Security and system protection On‑chip security features include ARM TrustZone, CAAM, HAB, RDC, RTC, SJC and SNVS for a layered security approach.
• Package and mounting 621‑FCPBGA package (17×17 mm) with surface‑mount mounting type suitable for compact system designs.
• Operating range & compliance Rated for 0 °C to 95 °C operation and RoHS compliant; consumer qualification.

Typical Applications

• Connected streaming audio/video devices Uses the quad Cortex‑A53 cluster and series video acceleration to deliver high‑performance multimedia playback and streaming capabilities.
• Scanning and imaging equipment Multi‑core processing, MIPI‑CSI camera interfaces and graphics acceleration support image capture and processing workflows.
• High‑performance, low‑power embedded products Combines application cores with a Cortex‑M4 co‑processor to balance performance and energy efficiency for mixed workloads.

Unique Advantages

• Highly integrated multimedia platform: Quad Cortex‑A53 plus graphics acceleration and multiple display/camera controllers reduce external component requirements for multimedia designs.
• Flexible memory options: Support for DDR3L, DDR4 and LPDDR4 provides system designers choice to optimize cost, performance and power.
• Broad high‑speed connectivity: USB 3.0 (two ports) and GbE enable high bandwidth peripheral and network interfacing for demanding data flows.
• Layered security features: Hardware security modules and TrustZone support help harden devices against software and system threats.
• Compact, surface‑mount package: 621‑FCPBGA (17×17 mm) delivers a small footprint for space‑constrained embedded platforms.
• Consumer qualification and documentation: Consumer product qualification and comprehensive NXP datasheet coverage support design and validation.

Why Choose MIMX8MQ6DVAJZAB?

The MIMX8MQ6DVAJZAB positions itself as a balanced solution for embedded designs that need multi‑core application performance, multimedia capability, and secure system integration in a compact surface‑mount package. Its combination of quad Cortex‑A53 cores, a Cortex‑M4 co‑processor, flexible DRAM support and extensive I/O lets engineers address streaming, imaging and other compute‑intensive tasks while controlling BOM complexity.

Ideal for product teams building consumer multimedia and imaging devices, this device delivers a scalable feature set backed by NXP documentation and series capabilities — offering a platform that supports rapid integration and sustained development across a range of connected embedded products.

Request a quote or submit a procurement inquiry for MIMX8MQ6DVAJZAB to begin your design evaluation or production planning.
