MPC5200BV400

The MPC5200BV400 is a single-core 32-bit microprocessor based on the PowerPC G2_LE architecture, clocked at 400 MHz. Designed for embedded and communications-focused systems, it combines a high-performance core with a broad set of integrated peripheral functions to simplify system integration and accelerate time to market.

Targeted at embedded designs requiring on-chip memory controllers and versatile I/O, the device delivers platform-level integration with DDR/SDRAM support, 10/100 Ethernet, USB 1.1 ports, ATA and PCI connectivity, and a BestComm I/O subsystem for efficient peripheral offload.

Key Features

• Core PowerPC G2_LE single-core 32-bit processor running at 400 MHz, offering general-purpose embedded processing.
• Memory SDRAM and DDR memory controller support for flexible system memory configurations and built-in initialization/refresh capabilities.
• Connectivity & Networking Integrated 10/100 Mbps Ethernet interface and two USB 1.1 ports to support networked and peripheral-rich applications.
• Storage & Bus On-chip ATA controller and a PCI controller (PCI 2.2 compatible) for disk and peripheral bus integration, including 32-bit PCI operation.
• Peripheral Subsystems BestComm I/O subsystem and six Programmable Serial Controllers (PSC) plus I2C, SPI, CAN, J1850, timers and GPIOs for broad peripheral interfacing.

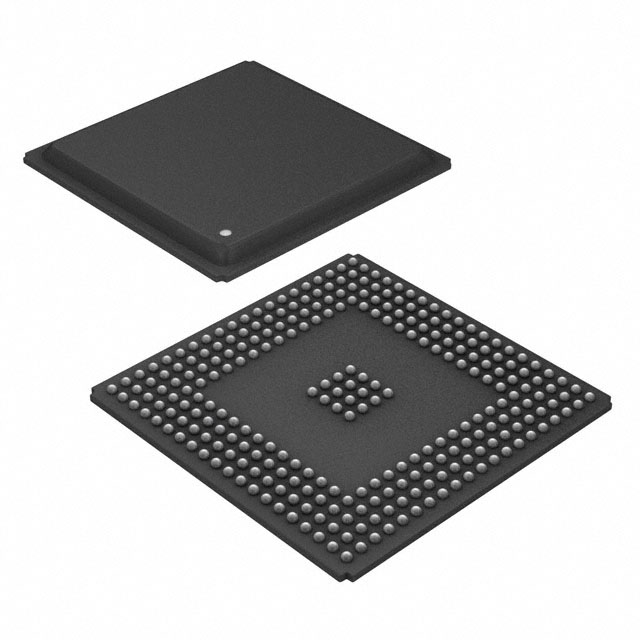

• Package & Mounting 272-ball PBGA package (272-PBGA, 27×27) with surface-mount mounting for compact board-level integration.
• Operating Range Specified for operation from 0 °C to 70 °C to suit standard commercial-temperature embedded systems.
• Environmental RoHS compliant to meet current lead-free environmental requirements.

Typical Applications

• Networked Embedded Systems – Use the integrated 10/100 Ethernet and USB interfaces for routers, gateways, and network appliances that require on-chip connectivity.
• Storage Controllers and IDE Devices – Leverage the ATA controller and PCI support for disk drive connectivity and storage interface designs.
• Communications Equipment – BestComm I/O, multiple serial controllers, and CAN/SPI/I2C support make the device suitable for communications modules and systems integration platforms.
• Industrial Controls – A compact 272-PBGA package with robust peripheral sets supports industrial embedded controllers that require field I/O and real-time interfaces.

Unique Advantages

• Highly integrated peripheral set: Ethernet, USB, ATA, PCI and a wide variety of serial interfaces reduce external components and simplify BOM.
• Flexible memory support: Built-in SDRAM/DDR controller with initialization and refresh simplifies memory subsystem design and speeds development.
• Offload-capable I/O subsystem: The BestComm DMA-oriented I/O subsystem isolates routine peripheral maintenance from the CPU for more efficient system operation.
• Compact board-level package: 272-PBGA (27×27) surface-mount package supports space-constrained designs while providing high I/O density.
• Commercial temperature rating and RoHS compliance: Ready for standard commercial applications with lead-free manufacturing compatibility.

Why Choose MPC5200BV400?

The MPC5200BV400 combines a 400 MHz PowerPC G2_LE core with a comprehensive set of on-chip peripherals and memory interfaces tailored for embedded and communications-focused applications. Its integration of Ethernet, USB, ATA, PCI, and multiple serial interfaces reduces board complexity and accelerates system development.

This device is well suited for designers seeking a single-chip solution that balances processing capability with I/O versatility and memory flexibility. Backed by NXP Semiconductors documentation and engineering resources for the MPC5200 series, the MPC5200BV400 offers a reliable platform for scalable embedded system designs.

If you would like pricing or availability, request a quote or submit a quote inquiry and our team will respond with details and options for procurement.
