MPC5200CBV400

The MPC5200CBV400 is a 32-bit embedded microprocessor based on the PowerPC G2_LE core, operating at 400 MHz. It combines a high-performance G2_LE core with a rich set of peripherals and I/O subsystems focused on communications and systems integration.

Designed for embedded and industrial applications, the device delivers system-level integration with memory controllers, networking and storage interfaces, and a BestComm I/O subsystem to offload routine peripheral tasks from the CPU core.

Key Features

• Core  The PowerPC G2_LE core runs at 400 MHz, delivering 760 MIPS at rated frequency and includes 16 kB instruction and 16 kB data caches plus a double-precision FPU and MMU.
• Processor Configuration  Single 32-bit core optimized for embedded control and communications tasks.
• Memory  Integrated SDRAM/DDR memory controller supporting SDRAM and DDR SDRAM up to 132 MHz, with 32-bit data bus and up to 256 MByte addressing per chip-select.
• External Bus and PCI  Flexible external bus interface with up to eight programmable chip selects and a PCI controller (PCI v2.2 compatible) supporting 32-bit transfers at 33/66 MHz.
• Storage and Audio  Built-in ATA (Version 4) controller for IDE connectivity and AC97 audio interface for multimedia/voice applications.
• Connectivity  Integrated 10/100 Mbps Ethernet (1), dual USB 1.1 ports, six programmable serial controllers (PSC), I²C, SPI, CAN, and J1850 support for broad peripheral interoperability.
• DMA and I/O Offload  BestComm DMA subsystem provides intelligent virtual DMA to isolate routine peripheral maintenance from the core.

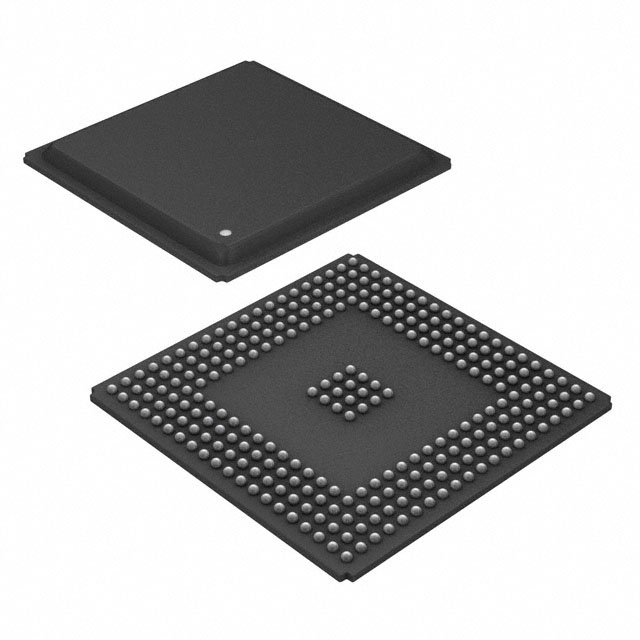

• Package and Mounting  Supplied in a 272-PBGA package (27×27 mm) and intended for surface-mount PCB assembly.
• Industrial Qualification & Temperature Range  Industrial-qualified device rated for operation from −40 °C to 85 °C.
• Compliance  RoHS compliant.

Typical Applications

• Networking and Communications  Use in routers, switches, and gateways where integrated Ethernet, PCI and serial peripherals enable packet processing and system integration.
• Industrial Control and Automation  Suitable for embedded controllers and automation equipment that require industrial temperature operation and multiple fieldbus/serial interfaces.
• Embedded Storage and NAS  ATA controller plus PCI and DMA capabilities make the device suitable for storage controller and embedded NAS designs.
• Multimedia and Telephony Interfaces  AC97 audio support combined with serial and USB connectivity for voice, audio, and multimedia edge devices.

Unique Advantages

• High single-core performance: The PowerPC G2_LE core at 400 MHz delivers up to 760 MIPS for compute-intensive embedded tasks.
• System-level integration: On-chip memory controllers, PCI, ATA, Ethernet, USB and multiple serial interfaces reduce external components and simplify system design.
• I/O offload with BestComm: The BestComm DMA subsystem isolates peripheral maintenance from the CPU, improving deterministic performance for real-time tasks.
• Flexible memory and bus options: Support for SDRAM and DDR, multiple chip selects and a flexible external bus enable a wide range of memory and peripheral topologies.
• Industrial-grade reliability: Industrial qualification and a −40 °C to 85 °C operating range support deployment in demanding environments.
• RoHS compliant: Conforms to RoHS requirements for environmental compliance in modern designs.

Why Choose MPC5200CBV400?

The MPC5200CBV400 positions itself as a performance-oriented, highly integrated embedded processor for communications and systems integration tasks. Its PowerPC G2_LE core, extensive peripheral set and BestComm DMA subsystem provide a balanced combination of compute throughput and I/O capability for embedded designs.

Engineers building industrial controllers, networking equipment, storage controllers or multimedia edge devices will find the MPC5200CBV400 useful for reducing BOM complexity while meeting industrial temperature and environmental requirements, backed by documentation and support from the product family.
