MPC5200CBV266

The MPC5200CBV266 is a single‑core PowerPC G2_LE microprocessor operating at 266 MHz, designed for embedded communications and systems integration. It combines a PowerPC G2_LE core with a broad set of on‑chip peripherals and memory interfaces to simplify system design for industrial and embedded applications.

Key Features

• PowerPC G2_LE Core  Single 32‑bit core running at 266 MHz with the G2_LE PowerPC architecture for general embedded compute tasks.
• On‑chip Cache and FPU  Series documentation references 16 KB instruction and 16 KB data caches and a double‑precision FPU for enhanced compute efficiency in control and signal tasks.
• Memory Controller  Integrated SDRAM/DDR memory controller supporting SDRAM and DDR SDRAM, with up to 32‑bit data bus and built‑in initialization/refresh functionality.
• Flexible External Bus Interface (EBI)  Multi‑function EBI supports interfacing to ROM/Flash/SRAM and other memory‑mapped devices with programmable chip selects and various data widths.
• PCI and ATA  On‑chip PCI controller (32‑bit address/data) with 33/66 MHz operation and an ATA controller for direct connection to IDE storage devices.
• Ethernet and USB  Integrated 10/100 Mbps Ethernet controller (1) and two USB 1.1 ports for networked and peripheral connectivity.
• Rich Serial and Multimedia Interfaces  Six Programmable Serial Controllers (PSC) plus I2C, SPI, CAN, J1850 and AC97 support for audio, legacy vehicle bus, sensor, and peripheral interconnects.
• BestComm DMA Subsystem  Intelligent DMA subsystem isolates routine peripheral maintenance from the CPU core to improve throughput and reduce host overhead.
• Industrial Qualification & Temperature Range  Qualified for industrial use with an operating temperature range of −40 °C to 85 °C.

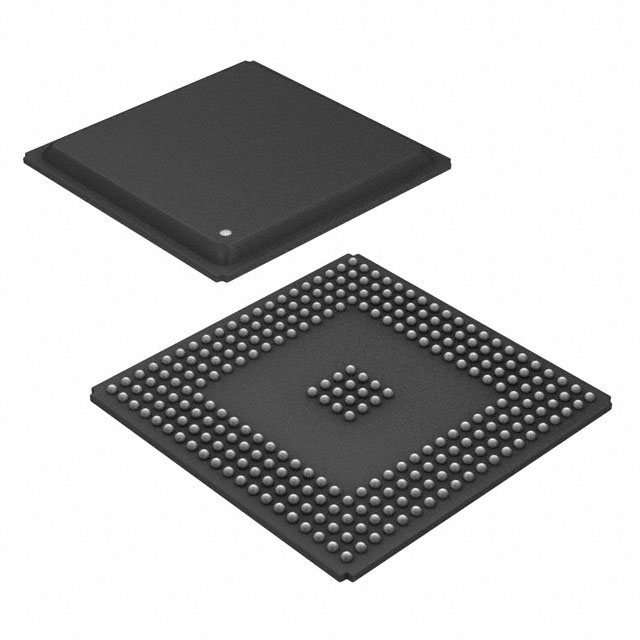

• Package & Mounting  Supplied in a 272‑PBGA package (27×27 mm), surface mount, suitable for compact board layouts.
• RoHS Compliant  Device is RoHS compliant to support regulatory and environmental requirements.

Typical Applications

• Embedded Networking Equipment  Use the integrated 10/100 Mbps Ethernet and USB ports for gateways, routers, and networked controllers.
• Industrial Control and Automation  Industrial qualification and wide temperature range make it suitable for PLCs, motion controllers, and machine interfaces.
• Storage and System Controllers  PCI and ATA controllers enable application in storage subsystems, host controllers, and integrated system platforms.
• Multimedia and Audio Interfaces  AC97 and multiple serial interfaces provide a foundation for audio subsystems and human‑machine interface controllers.

Unique Advantages

• Highly Integrated Connectivity: On‑chip Ethernet, USB, PCI, ATA, and multiple serial buses reduce external components and simplify BOM.
• Offloaded Peripheral Processing: BestComm DMA subsystem and dedicated controllers for common peripherals free the CPU for application tasks.
• Memory Flexibility: SDRAM and DDR SDRAM support plus a flexible external bus interface accommodate a wide range of memory configurations.
• Industrial‑Grade Reliability: Industrial qualification and −40 °C to 85 °C operating range support deployment in demanding environments.
• Compact, Surface‑Mount Package: 272‑PBGA (27×27) package enables dense, space‑efficient board designs.
• Standards‑Oriented Peripherals: PCI 2.2 compatibility, USB 1.1 ports, and common serial interfaces help integrate with standard system components.

Why Choose MPC5200CBV266?

The MPC5200CBV266 delivers a balanced combination of processing capability and integrated peripherals tailored for embedded communications and system integration projects. With a PowerPC G2_LE core, dedicated memory controllers, a full complement of I/O and bus interfaces, and industrial qualification, it is positioned for use in designs that require dependable connectivity, storage, and peripheral handling in temperature‑sensitive environments.

Designed for engineers who need a compact, highly integrated microprocessor solution, the MPC5200CBV266 helps reduce external component count and simplify system architecture while providing the interfaces and control needed for industrial and embedded applications.

Request a quote or submit an inquiry to receive pricing and lead‑time information for the MPC5200CBV266.
