MPC5200CVR266

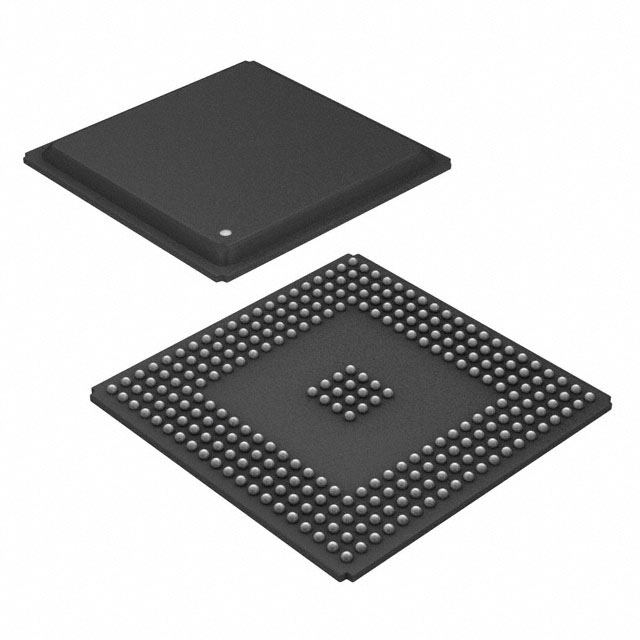

The MPC5200CVR266 is a 32-bit PowerPC G2_LE microprocessor operating at 266 MHz, offered in a 272-pin PBGA (27×27 mm) package. It combines a high-performance G2_LE core with a broad set of on-chip peripherals and system interfaces targeted at embedded communications and systems-integration applications.

Designed for industrial use, the device integrates memory controllers, high-speed I/O and a dedicated I/O subsystem to offload routine peripheral maintenance from the CPU core, enabling efficient system designs that require rich connectivity and deterministic operation across a wide temperature range.

Key Features

• Core  The PowerPC G2_LE superscalar core provides a single 32-bit processing core running at 266 MHz.
• Memory  Integrated SDRAM and DDR memory controllers with support for up to 132 MHz operation and 32-bit data bus addressing options.
• Connectivity  Single 10/100 Mbps Ethernet interface and two USB 1.1 ports provide standard wired connectivity for networked and peripheral devices.
• PCI and Storage  On-chip PCI controller (PCI 2.2 compatible) with 32-bit PCI address/data and 33/66 MHz operation, plus an ATA (version 4) controller for IDE disk connectivity.
• Peripheral Set  Rich peripheral mix including six Programmable Serial Controllers (PSC), I2C, SPI, CAN, J1850, timers and GPIOs for flexible system interfacing.
• BestComm I/O Subsystem  Built-in BestComm DMA/I/O subsystem isolates routine peripheral maintenance from the CPU core to improve overall system efficiency.
• System Integration  Flexible External Bus Interface with multiple chip selects and support for ROM/Flash/SRAM memory mapping and burst modes.
• Industrial Qualification and Temperature Range  Qualified for industrial use with operating temperature from −40 °C to 85 °C.
• Package and Mounting  Available in a 272-PBGA (27×27 mm) surface-mount package.
• Compliance  RoHS compliant.

Typical Applications

• Embedded Communications  Ideal for routers, gateways and network appliances that require integrated Ethernet, USB and PCI functionality.
• Industrial Control  Suited for control systems and automation equipment where industrial temperature qualification and robust I/O integration are required.
• Storage and Mass-Storage Controllers  ATA (IDE) support and PCI connectivity make it appropriate for embedded storage subsystems and disk-interface designs.
• Systems Integration  Useful in integrated systems that consolidate multiple interfaces (serial, CAN, I2C, SPI) and require an on-chip DMA-capable I/O subsystem.

Unique Advantages

• Highly integrated peripheral set: Combines Ethernet, USB, PCI, ATA and multiple serial interfaces on-chip to reduce BOM and simplify board-level design.
• BestComm I/O offload: The BestComm subsystem isolates peripheral maintenance from the core, improving CPU availability for application tasks.
• Flexible memory support: SDRAM and DDR memory controller support with 32-bit data bus and up to 132 MHz operation for adaptable system memory configurations.
• Industrial-grade operation: Rated for −40 °C to 85 °C and specified as industrial, supporting deployment in harsh and temperature-variable environments.
• PCI and ATA integration: Built-in PCI 2.2 compatibility and ATA v4 controller enable high-performance peripheral and storage expansion options.
• RoHS compliant: Meets RoHS environmental requirements for modern product development and manufacturing.

Why Choose MPC5200CVR266?

The MPC5200CVR266 positions itself as a single-chip solution for embedded systems that require balanced processing performance and a comprehensive peripheral set tailored to communications and systems-integration tasks. With a PowerPC G2_LE core, BestComm I/O subsystem and integrated memory and I/O controllers, it reduces external component count and simplifies system architecture.

This device is suited to developers and designers building industrial and networking equipment who need a documented, series-based microprocessor with industrial temperature qualification and a wide mix of on-chip interfaces. Backed by the MPC5200 family documentation from the manufacturer, it supports reliable long-term deployment in embedded applications.

Request a quote or submit an inquiry to evaluate the MPC5200CVR266 for your next embedded design and obtain pricing and availability information.
