MPC5200CVR400BR2

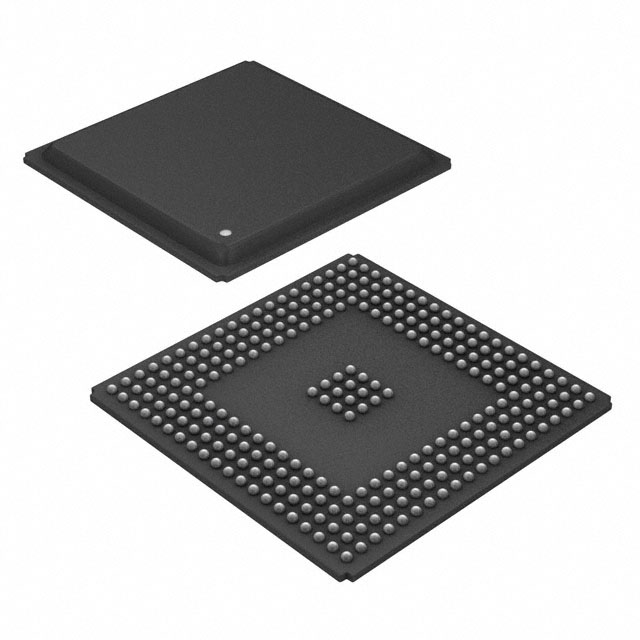

The MPC5200CVR400BR2 is a PowerPC e300-based microprocessor IC configured as a single 32-bit core running at 400 MHz in a 272-pin PBGA package. It targets embedded and industrial designs that require a high-performance core with broad on-chip peripheral integration and support for DDR/SDRAM memory interfaces.

Designed for connectivity and system integration, the device combines processor performance, on-chip DMA and memory controllers, multiple serial interfaces and Ethernet/USB support with an industrial operating temperature range for robust deployment.

Key Features

• Core and Performance PowerPC e300 core (MPC603e series), superscalar architecture delivering up to 760 MIPS at 400 MHz, with 16 KB instruction cache and 16 KB data cache, plus a double-precision FPU and instruction/data MMU.
• Memory Subsystem SDRAM/DDR memory interface supporting up to 133 MHz operation, 32-bit data bus, built-in initialization and refresh, and up to 256 MB addressing range per chip select with two chip selects available.
• External Bus and Storage Flexible multi-function external bus interface supporting ROM/Flash/SRAM and other memory-mapped devices with 8 programmable chip selects, non-multiplexed and multiplexed data access options and 8-/16-/32-bit data widths. Integrated ATA controller (Version 4) for IDE disk connectivity.
• High-speed Peripherals and Connectivity On-chip PCI controller (Version 2.2) with 32-bit address/data bus supporting 33/66 MHz operation in both initiator and target modes; Fast Ethernet Controller (FEC) supporting 100 Mbps and 10 Mbps IEEE 802.3 MII interfaces.
• USB and Serial Interfaces Integrated USB 1.1 host controller (OHCI) with an integrated hub and two ports, plus six programmable serial controllers (PSC) providing UART/RS232, CODEC, I2S, AC97, SPI and IrDA modes. Additional I2C and SPI interfaces are available.
• Specialized Network and Bus Support Dual CAN 2.0 A/B controllers (MSCAN) and J1850 byte data link controller support for legacy vehicle network and low-speed serial communications protocols.
• DMA, Timers and GPIO BestComm DMA subsystem with intelligent virtual DMA controller and dedicated DMA channels, local 16 KB SRAM; up to 56 GPIO pins with timer capability and interrupt/wakeup support.
• System Management and Reliability Real-time clock, watchdog (systems protection), interrupt controller with multiple internal/external sources, power management modes (Nap, Doze, Sleep, Deep Sleep) and wake-up support from GPIO, RTC and CAN.
• Test and Debug JTAG (IEEE 1149.1) test access port and Common On-chip Processor (COP) debug port; on-board PLL and clock generation.
• Package and Temperature 272-pin PBGA (272-PBGA / 272-BBGA) 27 mm × 27 mm surface-mount package; industrial operating temperature range of -40 °C to +85 °C. RoHS compliant.

Typical Applications

• Industrial Networking — Use as a communication and control processor for industrial Ethernet nodes and networked controllers leveraging the integrated Fast Ethernet and CAN interfaces.
• Embedded Storage and Controllers — Ideal for systems requiring ATA/IDE connectivity and an external bus for flash or ROM boot/storage devices.
• Peripheral-rich Embedded Systems — Suitable for appliances and instruments that need multiple serial interfaces, USB host capability and rich DMA support for data movement.
• Connectivity Gateways — Acts as a protocol and interface bridge where PCI, USB, Ethernet and serial buses must be aggregated and managed.

Unique Advantages

• High processor throughput: The e300 core at 400 MHz with 16 KB instruction/data caches and a double-precision FPU delivers substantial compute performance for embedded control and networking tasks.
• Broad on-chip integration: Integrated PCI, USB host (OHCI), Ethernet, ATA, multiple serial controllers and DMA reduce external component count and simplify board design.
• Flexible memory and external bus: Support for SDRAM and DDR, plus a versatile external bus with 8 programmable chip selects, enables varied memory and peripheral configurations.
• Industrial-grade operation: -40 °C to +85 °C operating range and surface-mount 272-PBGA package support deployment in industrial environments.
• Comprehensive system features: On-chip timers, RTC, watchdog, power management modes and extensive GPIO/wakeup options make system-level integration straightforward.

Why Choose MPC5200CVR400BR2?

The MPC5200CVR400BR2 positions itself as a high-performance, highly integrated embedded microprocessor for designs that require a robust PowerPC e300 core alongside extensive on-chip peripherals and memory support. Its combination of Ethernet, USB host, PCI, ATA and multiple serial interfaces addresses connectivity-heavy applications while the integrated DMA, timers and system management features simplify software and hardware integration.

This device is suited to engineering teams building industrial and embedded systems that demand a balance of compute performance, peripheral integration and industrial temperature operation. Backed by NXP Semiconductors' MPC5200 series documentation and on-chip debug/test features, it offers a platform for scalable and robust product development.

Request a quote or submit an inquiry to obtain pricing and availability for MPC5200CVR400BR2 and to discuss your design requirements with our product specialists.
