MPC5200VR400B

The MPC5200VR400B is a single-core PowerPC e300 microprocessor in the MPC5200 series from NXP Semiconductors. It delivers a 32-bit, 400 MHz core with integrated memory controllers and a wide range of on-chip peripherals optimized for embedded applications.

Designed for embedded systems that require integrated connectivity and peripheral support, this device combines CPU performance, memory interface flexibility (SDRAM/DDR), Ethernet and USB connectivity, and comprehensive I/O to reduce system complexity and BOM count.

Key Features

• Core — PowerPC e300, 32-bit, 400 MHz Superscalar e300 architecture with on-chip instruction and data caches (16 KB each) and a double-precision FPU. The series datasheet lists performance up to 760 MIPS at 400 MHz.
• Memory — DDR/SDRAM controller Supports SDRAM and DDR SDRAM with up to 133 MHz operation, two chip-selects, 256 MB addressing range per CS and a 32-bit data bus for flexible memory configurations.
• External Bus & Storage Flexible multi-function external bus interface with 8 programmable chip selects for ROM/Flash/SRAM and an ATA v4 compatible controller for IDE disk drive connectivity.
• Peripherals & Connectivity Integrated Fast Ethernet controller (10/100 Mbps), USB 1.1 host with two ports and integrated hub, AC97/CODEC interface, two I2C, SPI and dual CAN 2.0 A/B controllers plus J1850 BDLC support.
• PCI & DMA Subsystems PCI controller compatible with PCI v2.2 supporting 32-bit, 33/66 MHz operation (initiator/target) and the BestComm DMA subsystem with dedicated DMA channels and 16 KB local SRAM.
• System & Timing Rich system features including interrupt controller, up to 56 GPIOs (with timer capability on multiple pins), real-time clock, on-board PLL/clock generation and system protection functions (watchdog, bus monitor).
• Power Management & Low-Power Modes Multiple low-power states (Nap, Doze, Sleep, Deep Sleep) with wake-up sources including GPIO, RTC and CAN to support power-sensitive embedded designs.

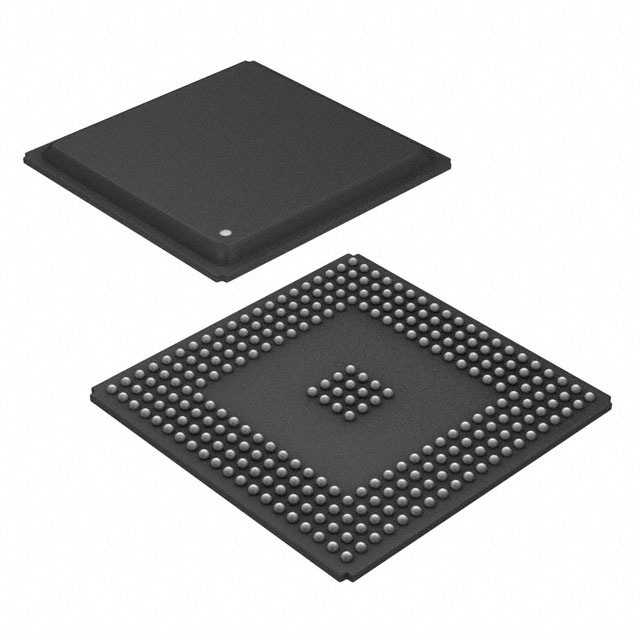

• Package & Environmental 272-PBGA (27 × 27 mm) surface-mount package, RoHS compliant, and rated for an operating temperature range of 0 °C to 70 °C.

Typical Applications

• Networking & Communications — Use the integrated Fast Ethernet, USB host and PCI interfaces for network gateways, switches and communication endpoints that require onboard protocol handling and connectivity.
• Storage & Peripheral Controllers — ATA v4 (IDE) support and flexible external bus make the device suitable for embedded storage controllers and systems with attached Flash or ROM.
• Multimedia & Audio Interfaces — AC97 and CODEC interfaces combined with USB host capability support audio I/O and soft-modem or media-handling functions.
• Industrial Control & Automation — Multiple serial controllers, SPI, I2C, CAN and extensive GPIO/timer resources enable sensor interfacing, fieldbus nodes and embedded control tasks.

Unique Advantages

• Highly integrated connectivity: On-chip Ethernet, USB, PCI, CAN, I2C and SPI reduce external components and simplify board design.
• Flexible memory support: Native SDRAM and DDR SDRAM interfaces with multiple chip-selects enable a variety of memory configurations and capacity scaling.
• Comprehensive peripheral set: ATA, AC97/CODEC, PSCs and extensive serial options provide a platform for storage, audio and communication-focused embedded designs.
• System-level features included: RTC, watchdog, extensive GPIO, interrupt controller and power management modes support robust embedded system operation and low-power use cases.
• Standard packaging and compliance: 272-PBGA surface-mount package and RoHS compliance ease assembly and regulatory alignment for consumer-grade products.

Why Choose MPC5200VR400B?

The MPC5200VR400B positions a 400 MHz PowerPC e300 core with a broad set of integrated peripherals and memory interfaces into a single-package solution, balancing CPU performance with system integration to simplify embedded system design. Its combination of Ethernet, USB, PCI, ATA and rich serial interfaces makes it suitable for designs that require on-chip connectivity and peripheral handling.

This device is ideal for engineers building consumer-grade embedded products that need moderate processing performance, flexible memory support and a wide range of I/O in a compact 272-PBGA package. RoHS compliance and comprehensive system features help support long-term deployment in production embedded systems.
