MPC5200CVR400B

The MPC5200CVR400B is a PowerPC e300-based 32-bit microprocessor from the MPC5200 series by NXP Semiconductors, running at 400 MHz. Designed for embedded applications, it combines a high-performance CPU core with a broad set of on-chip peripherals and system features to support networking, storage, and industrial control designs.

Key Features

• Core and Performance  PowerPC e300 core, single 32-bit core at 400 MHz; datasheet lists up to 760 MIPS at 400 MHz with on-chip instruction and data MMUs and double-precision FPU for compute and control tasks.
• Caches  16 KB instruction cache and 16 KB data cache to reduce external memory bandwidth for code and data accesses.
• Memory Interfaces  Integrated SDRAM/DDR memory controller supporting up to 133 MHz operation, 32-bit data bus, two chip selects with up to 256 MB addressing range per CS.
• External Bus & Storage  Flexible external bus interface with 8 programmable chip selects for non-multiplexed or multiplexed memory access and a Version 4 ATA controller for IDE disk connectivity.
• High-Speed Connectivity  Fast Ethernet controller supporting 10/100 Mbps IEEE 802.3 MII and USB 1.1 host controller with two integrated USB ports and hub functionality.
• Serial & Codec Interfaces  Six programmable serial controllers (PSC) supporting UART/RS232, I2S, AC97, SPI and CODEC modes for audio and serial peripheral connectivity.
• Field Bus & Vehicle Network Interfaces  Dual CAN 2.0 A/B controllers (MSCAN) and J1850 BDLC support for CAN and J1850 serial networking requirements.
• DMA and Local Memory  BestComm DMA subsystem with intelligent virtual DMA controller and 16 KB of local SRAM to offload peripheral transfers from the CPU.
• System & Power Management  Extensive system features including interrupt controller (multiple internal/external sources), up to 56 GPIOs, watchdog timer, real-time clock, and multiple low-power modes (Nap, Doze, Sleep, Deep Sleep).

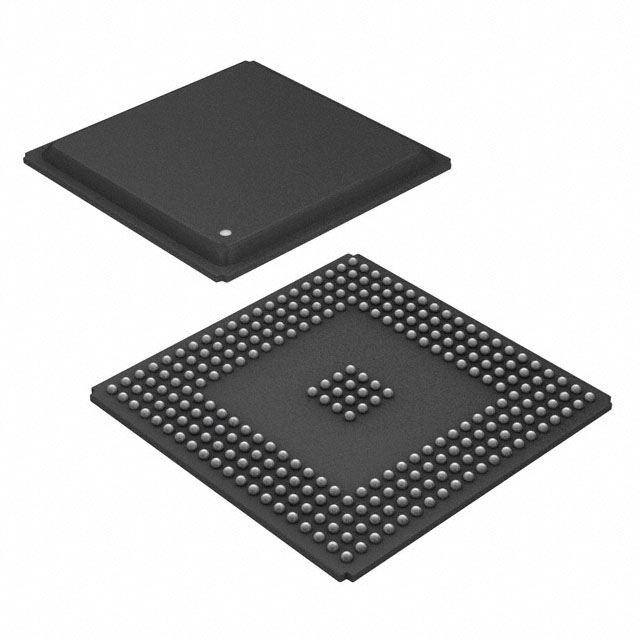

• Package and Environmental  272‑PBGA (27 × 27 mm) surface-mount package, industrial qualification with operating temperature range −40 °C to +85 °C, and RoHS compliant.

Typical Applications

• Industrial Control  Deterministic processing, extensive I/O and low‑temperature operating range make this device suitable for automation controllers and machine control nodes.
• Networking & Communications  Integrated 10/100 Mbps Ethernet, USB host, PCI controller and multiple serial interfaces support routers, gateways and network appliances.
• Embedded Storage Controllers  On-chip ATA controller and flexible external bus enable control of IDE storage and memory-mapped peripheral subsystems.
• Audio & Codec Systems  Built-in AC97 and CODEC-capable PSCs support voice and media interface designs for embedded multimedia applications.

Unique Advantages

• High on-chip integration: Reduces external component count by combining CPU, memory controllers, DMA, Ethernet, USB and multiple serial controllers on a single device.
• Proven PowerPC e300 core performance: 400 MHz operation with floating-point support and MMU features enables compute and control tasks in a compact embedded footprint.
• Versatile memory and bus options: SDRAM/DDR support plus a flexible external bus with multiple chip selects simplifies interface to a wide range of external memories and peripherals.
• Extensive connectivity: Integrated Ethernet, USB, PCI, CAN, J1850, I2C and SPI provide broad options for system networking, peripheral connection and in-field communications.
• Industrial-grade packaging and temperature range: 272‑PBGA surface-mount package with −40 °C to +85 °C operation meets industrial environment demands.
• Energy and system control features: Multiple low-power modes, watchdog and real-time clock enable robust power and fault management strategies.

Why Choose MPC5200CVR400B?

The MPC5200CVR400B delivers a balanced combination of processing capability, peripheral breadth and ruggedness for embedded system designs requiring a PowerPC e300 CPU at 400 MHz. Its integrated memory controllers, extensive serial and networking interfaces, and DMA subsystem make it well suited to compact systems where board space and BOM reduction are priorities.

Backed by NXP Semiconductors' MPC5200 series documentation and industrial qualification, this device fits projects that demand long-term stability, multiple connectivity options and predictable operating behavior across −40 °C to +85 °C environments.

Request a quote or submit an inquiry to check pricing and availability for the MPC5200CVR400B and to discuss how it fits your next embedded design.
