MVF30NN151CKU26

The MVF30NN151CKU26 is an NXP Vybrid VF3xx series microprocessor IC featuring a single ARM® Cortex®-A5 32-bit core running at 266 MHz. Designed for industrial applications, it combines compute, multimedia acceleration and a broad set of integrated peripherals to address embedded HMI, connectivity and secure control use cases.

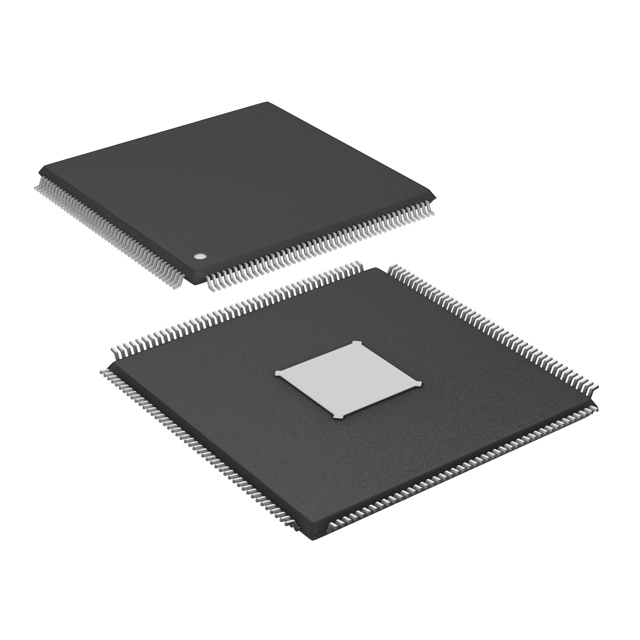

With industrial temperature qualification and a 176-HLQFP (24×24) surface-mount package, this device delivers balanced performance, rich I/O and hardware security features for robust embedded system designs.

Key Features

• Core  ARM® Cortex®-A5 32-bit processor core operating at 266 MHz, with NEON™ MPE multimedia co-processor and double-precision floating point support as defined in the Vybrid series core features.
• Memory and Storage Interfaces  Supports LPDDR2, DDR3 and external DRAM controllers; dual Quad SPI with Execute-In-Place (XIP) and NAND/Flash controllers with ECC as provided in the series feature set.
• Display and Graphics  Integrated display controllers and graphics acceleration with DCU, GPU, LCD support, VideoADC and Video Interface Unit (VIU) for camera and display system integration.
• Connectivity  Dual 10/100 Mbps Ethernet ports, USB 2.0 OTG with integrated PHY, and CAN interface support for industrial networking and gateway applications.
• Timers and Real-time  Multiple timers including motor control/general purpose FTM, periodic interrupt timers (PITs), and low-power timer (LPTMR0) for deterministic control tasks.
• Analog and Audio  Dual 12-bit SAR ADCs (1 MS/s), dual 12-bit DACs and multiple audio interfaces including SAI, ESAI and SPDIF for mixed-signal and audio-capable designs.
• Security  Comprehensive security features including ARM TrustZone, CAAM (cryptographic acceleration and assurance module), High Assurance Boot (HAB), Secure JTAG, SNVS, RTIC, tamper detection, TrustZone Address Space Controller and TrustZone Watchdog.
• System Reliability and Debug  Hardware watchdog, external watchdog monitor (EWM), standard JTAG and trace port support; hardware CRC and unique 128-bit chip identifier for system integrity and debug.
• Power and Clocks  Operates with IO at 3.3 V and supports series-defined clock options including 24 MHz and 32 kHz crystals plus internal reference clocks and low-jitter PLLs for stable timing.
• Package and Temperature  176-LQFP exposed pad / 176-HLQFP (24×24) surface-mount package rated for industrial operation from −40 °C to 85 °C. RoHS compliant.

Typical Applications

• Industrial HMI and Display Controllers  Drives color TFT displays and camera interfaces using the integrated DCU, GPU and VIU for graphical user interfaces and machine vision front ends.
• Secure Embedded Gateways  Dual Ethernet, CAN and USB OTG combined with TrustZone and CAAM enable secure connectivity and edge processing in industrial networks.
• Multimedia and Audio Devices  NEON™ MPE, floating-point support and multiple audio interfaces facilitate media playback, voice processing and audio transport designs.
• Motor and Motion Control Systems  Integrated timers and real-time features support motor-control and deterministic control loops in automation equipment.
• General Embedded Controllers  Rich peripheral set, memory interface flexibility and robust security make this device suitable for embedded controllers requiring mixed-signal I/O and secure boot.

Unique Advantages

• Balanced compute and multimedia: NEON MPE and floating-point support alongside a 266 MHz Cortex-A5 core provide capable signal and media processing without requiring an external accelerator.
• Comprehensive security stack: ARM TrustZone, CAAM, HAB, Secure JTAG and tamper detection deliver layered hardware security for protected boot and runtime integrity.
• Broad connectivity: Dual 10/100 Ethernet, CAN and USB OTG with PHY simplify networked and field‑bus designs while reducing external component count.
• Flexible memory support: Controllers for LPDDR2, DDR3 and external flash/NAND enable scalable memory configurations for diverse application storage and performance needs.
• Industrial-ready package and range: 176-HLQFP surface-mount package with industrial temperature rating (−40 °C to 85 °C) and RoHS compliance for deployment in demanding environments.

Why Choose MVF30NN151CKU26?

The MVF30NN151CKU26 combines a single ARM® Cortex®-A5 core at 266 MHz with integrated multimedia, rich peripheral I/O and an extensive hardware security feature set, making it well suited for industrial embedded systems that require both compute and secure connectivity. Its support for multiple DRAM types, display interfaces and industrial networking options lets designers tailor system memory, UI and communications to application needs.

With industrial temperature qualification, robust system monitoring and package options for surface-mount assembly, this Vybrid part offers a practical platform for scalable, secure and reliable embedded designs in HMI, gateway, multimedia and control applications.

Request a quote or submit a pricing and availability request to obtain lead time and ordering information for the MVF30NN151CKU26.
