MVF30NS152CKU26

The MVF30NS152CKU26 is an NXP Vybrid VF3xx-series microprocessor IC based on an ARM® Cortex®-A5 core running at 266 MHz. It targets embedded and industrial applications that require a 32‑bit single‑core MPU with multimedia acceleration, integrated security features, and broad peripheral support.

With on‑chip support for display, video and networking interfaces plus industrial temperature qualification, this device is suited for networked human‑machine interfaces, imaging and control systems where integration and system security are priorities.

Key Features

• Core – ARM® Cortex®‑A5 32‑bit single core at 266 MHz with NEON™ MPE multimedia co‑processor and double‑precision floating point support as described for the Vybrid series.
• Memory Controllers – Support for LPDDR2, DDR3 and general DRAM interfaces, plus NAND and external bus options referenced in the Vybrid series architecture.
• Display & Graphics – Integrated display interface controllers (DCU, GPU, LCD), VideoADC and Video Interface Unit (VIU) for camera and video applications; graphics acceleration indicated for the device.
• Connectivity – Dual 10/100 Mbps Ethernet interfaces, USB 2.0 OTG with PHY, CAN and multiple serial buses for networked and fielded systems.
• Security – Comprehensive security features including ARM TrustZone, CAAM, High Assurance Boot (HAB), Secure JTAG, SNVS, RTIC, tamper support, TrustZone address space controller and TZ watchdog as provided in the Vybrid series.
• Analog & Audio – On‑chip analog peripherals referenced in the series such as dual 12‑bit SAR ADCs and DACs, and multiple audio interfaces (SAI, ESAI, SPDIF).
• System & Reliability – Industrial qualification, hardware watchdog, CRC module, dual DMA controller and standard JTAG/trace support for development and robust operation.
• Power & Clocks – 3.3 V I/O and series clocking features including crystal oscillator support and PLLs as detailed for Vybrid devices.

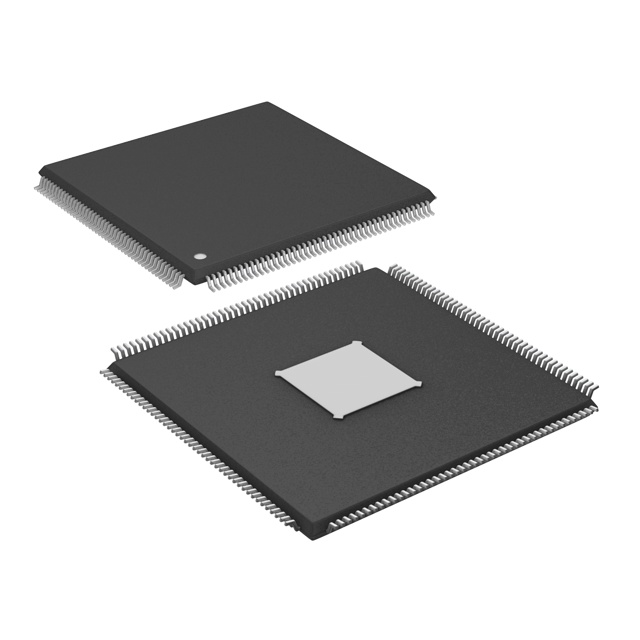

• Package & Temperature – 176‑HLQFP (24×24) exposed pad surface‑mount package rated for an operating ambient temperature range of −40 °C to 85 °C and RoHS compliant.

Typical Applications

• Industrial Control and Automation – Use as a secure, industrial‑qualified MPU for control nodes and human‑machine interface units with Ethernet and CAN connectivity.
• Imaging and Video Systems – Drive camera interfaces and display pipelines using the VIU, VideoADC and DCU subsystems with graphics acceleration.
• Networked Embedded Devices – Implement gateway and appliance functions leveraging dual 10/100 Ethernet, USB OTG and multiple serial interfaces.
• Multimedia HMI – Power touchscreen or display‑based operator panels with integrated GPU and audio interfaces for multimedia playback and user interaction.

Unique Advantages

• Integrated multimedia acceleration: NEON™ MPE and floating‑point capabilities in the Cortex‑A5 core enable efficient media and signal processing tasks.
• Comprehensive security stack: On‑chip TrustZone, CAAM, HAB, Secure JTAG and tamper features provide layered security for protected boot and runtime integrity.
• Broad connectivity: Dual Ethernet, USB OTG with PHY, CAN and multiple serial buses simplify system design for networked and fielded products.
• Flexible memory support: Controllers for LPDDR2, DDR3 and DRAM offer memory interface options to match application performance and capacity needs.
• Industrial temperature and packaging: Surface‑mount 176‑HLQFP exposed pad package and −40 °C to 85 °C ambient rating enable deployment in industrial environments.
• Developer and system support features: Standard JTAG, trace port, watchdogs and DMA channels aid debugging and help achieve reliable system behavior.

Why Choose MVF30NS152CKU26?

The MVF30NS152CKU26 combines a single‑core ARM® Cortex®‑A5 MPU running at 266 MHz with a range of integrated peripherals and series‑level security features, making it a practical choice for embedded and industrial designs that require multimedia capability, secure boot and diverse I/O. Its memory controller flexibility and rich connectivity options reduce external component count and simplify board-level integration.

Engineers building industrial HMIs, imaging subsystems, networked controllers or multimedia‑enabled embedded products will find the device’s industrial qualification, exposed‑pad HLQFP package and on‑chip system features supportive of robust, long‑lifecycle designs backed by the Vybrid series architecture.

Request a quote or submit an inquiry to receive pricing and availability information for MVF30NS152CKU26 and to discuss how this Vybrid device can fit your project requirements.
