MVF30NS151CKU26

The MVF30NS151CKU26 is an ARM® Cortex®-A5 microprocessor from the VYBRID VF3xx family, featuring a single 32-bit core running at 266 MHz. It targets embedded applications that require a balance of compute performance, multimedia capability, and extensive on-chip connectivity.

Designed for industrial use, this device combines a 266 MHz Cortex-A5 core with hardware security, broad memory interface support, and a rich set of peripherals to address HMI, networking, and secure embedded control use cases.

Key Features

• Core: Single ARM® Cortex®-A5 32-bit core running at 266 MHz, with NEON™ MPE media processing engine support for enhanced multimedia performance.
• Memory Interfaces: Integrated RAM controllers supporting LPDDR2, DDR3 and DRAM, plus external memory controller options for flexible system memory configurations.
• Display and Video: Display interface controllers including DCU, GPU, LCD, VideoADC and VIU for camera and display subsystems, with graphics acceleration.
• Connectivity: Dual 10/100 Mbps Ethernet interfaces, USB 2.0 OTG with PHY, and CAN support for industrial networking and communications.
• Security: Comprehensive hardware security features including ARM TrustZone, CAAM, High Assurance Boot (HAB), RTIC, Secure JTAG, SNVS, tamper detection, TZ ASC, and TZ WDOG.
• Analog and Audio: Analog peripherals such as dual 12-bit SAR ADCs and dual 12-bit DACs, plus multiple audio interfaces (SAI/ESAI/SPDIF) for mixed-signal and multimedia designs.
• Timers and Control: Multiple timers including motor control/general purpose timer (FTM), periodic interrupt timers (PITs), and low-power timer for real-time control tasks.
• System and Reliability: Industrial qualification with operating temperature range −40 °C to 85 °C, hardware watchdog and external watchdog monitor, and CRC and integrity checking features.

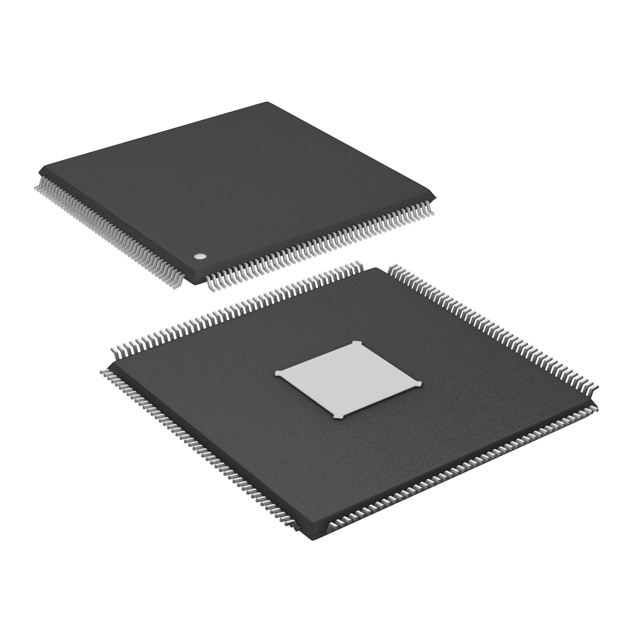

• Package and Mounting: 176-HLQFP (24 × 24) exposed pad package for surface-mount assembly, suitable for industrial PCB integration.
• Power: I/O voltage 3.3 V to match common industrial interfaces and I/O standards.

Typical Applications

• Industrial Automation: Real-time control and motor management using dedicated timers and robust peripheral interfaces in an industrial temperature-rated device.
• Human-Machine Interfaces (HMI): Driving color TFT displays and handling camera/video input with DCU, GPU and VIU support for responsive user interfaces.
• Networking & Gateways: Dual 10/100 Mbps Ethernet and USB OTG enable networked controllers, protocol gateways, and fieldbus interfaces.
• Secure Embedded Systems: Devices requiring hardware-enforced security and secure boot—leveraging TrustZone, CAAM, HAB and tamper detection for protected operation.

Unique Advantages

• Balanced compute and multimedia: 266 MHz Cortex-A5 core with NEON MPE provides efficient general-purpose processing plus enhanced media handling without excessive power.
• Extensive on-chip connectivity: Multiple Ethernet ports, USB OTG, CAN, and standard serial/peripheral interfaces reduce external component count and simplify system design.
• Industrial-grade reliability: Rated for −40 °C to 85 °C and qualified for industrial applications, enabling deployment in demanding environments.
• Hardware security suite: Integrated TrustZone, CAAM, secure boot and tamper detection help meet embedded security requirements and protect IP and data.
• Flexible memory support: LPDDR2/DDR3 and external DRAM controller compatibility allow designers to scale memory for performance or cost targets.
• Compact package: 176-HLQFP exposed pad surface-mount package offers a dense pinout and thermal path for medium-pin-count embedded systems.

Why Choose MVF30NS151CKU26?

The MVF30NS151CKU26 delivers a practical combination of 32-bit Cortex-A5 processing at 266 MHz, multimedia acceleration, comprehensive security, and a broad peripheral set in an industrial-temperature-rated package. It is well suited to embedded designers who need integration, connectivity, and hardware security in compact systems.

Manufactured by NXP Semiconductors and built on the VYBRID VF3xx family architecture, this device supports scalable memory and interface options that help simplify BOM and shorten time-to-market for industrial HMI, networking, and secure control applications.

Request a quote or submit an inquiry to receive pricing, availability, and volume information for the MVF30NS151CKU26. Our team can provide technical details and help evaluate this MPU for your embedded design needs.
