NE80546JG0802MM

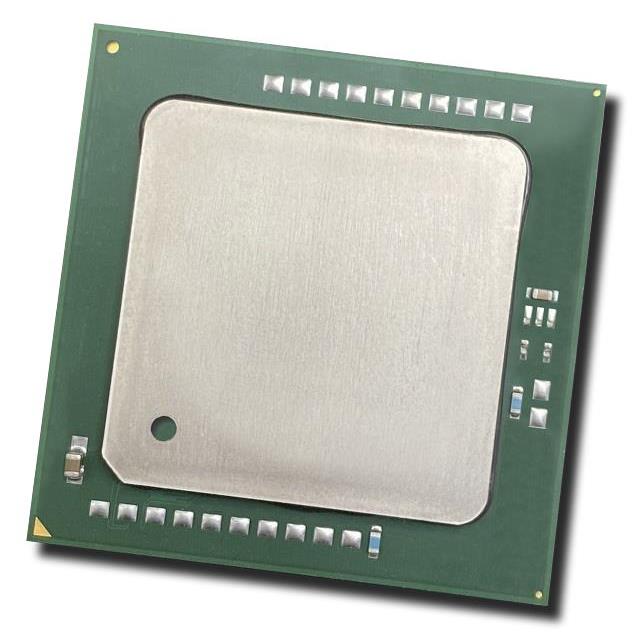

The NE80546JG0802MM is an Intel® Xeon® processor microprocessor in a 604-PPGA (42.5×42.5) package. It provides a single 64-bit core running at 3 GHz with MMX co-processor support and is offered as a commercial-grade, through-hole mounted device for embedded designs.

Designed for embedded and commercial applications, this processor delivers a compact socketed solution for systems that require single-core 64-bit processing at a fixed 3 GHz frequency within an operating temperature range of 0 °C to 70 °C.

Key Features

• Processor Core: Single Intel® Xeon® core with 64-bit execution, delivering native 64-bit processing capability for embedded workloads.
• Clock Speed: 3 GHz nominal core frequency providing deterministic single-core performance.
• Co-processor Support: MMX co-processor instruction support for accelerated multimedia and signal-processing operations.
• Package & Mounting: 604-PPGA (42.5×42.5) supplier device package with through-hole mounting for socketed or replaceable board-level implementations.
• Grade & Environment: Commercial grade device with an operating temperature range of 0 °C to 70 °C, suitable for standard commercial embedded environments.
• Standards Compliance: RoHS compliant, meeting common lead-free environmental requirements.
• Graphics Acceleration: No integrated graphics acceleration, suitable for designs where discrete graphics or headless operation is required.

Typical Applications

• Embedded Systems: Single-core 64-bit processing at 3 GHz for embedded platforms that require a socketed Xeon® processor.
• Commercial Equipment: Commercial-grade computing hardware operating within a 0 °C to 70 °C range.
• Board-Level Replacement/Upgrade: Through-hole 604-PPGA package enables socketed upgrades or replacements in legacy board designs.
• Media and Signal Tasks: MMX co-processor support to assist with multimedia and signal-processing workloads where dedicated graphics acceleration is not required.

Unique Advantages

• Socketed 604-PPGA Package: Through-hole 604-PPGA form factor simplifies replacement and field serviceability for board-level maintenance.
• Intel® Xeon® Single-Core Performance: Fixed 3 GHz 64-bit core offers consistent single-thread performance for embedded workloads.
• MMX Co-processor Support: Built-in MMX capabilities provide enhancement for multimedia and DSP-style operations without external coprocessors.
• Commercial Temperature Rating: Rated for 0 °C to 70 °C to match standard commercial deployment environments.
• RoHS Compliant: Meets lead-free environmental requirements for modern commercial product designs.

Why Choose NE80546JG0802MM?

The NE80546JG0802MM combines a single 64-bit Intel® Xeon® core running at 3 GHz with MMX co-processor support in a socketed 604-PPGA package, providing a straightforward, serviceable solution for embedded and commercial systems. Its through-hole mounting and commercial temperature rating make it appropriate for designs that prioritize maintainability and predictable operating conditions.

As a commercial-grade, RoHS-compliant component from Intel's i80546 series, this part is aimed at engineers and procurement teams seeking a known-architecture Xeon® processor in a replaceable package for board-level implementations and upgrades.

Request a quote or contact our sales team to obtain pricing, availability, and lead-time information for the NE80546JG0802MM.
