N80C286-20

The N80C286-20 is an 80C286 microprocessor IC from Advanced Micro Devices in the Am80286 series. It features a single 16-bit core running at 20 MHz and is supplied in a 68-pin PLCC surface-mount package.

Designed for commercial embedded applications, the N80C286-20 offers 5 V I/O, compatibility with the 80C287 math co-processor, and a commercial operating temperature range, making it suitable for a range of board-level integrations where a 16-bit microprocessor is required.

Key Features

• Core & Architecture 80C286 core with a single 16-bit processor delivering deterministic 16-bit operation.
• Performance 20 MHz clock speed for mid-rate processing in embedded designs.
• Power 5 V I/O voltage compatible with common commercial logic levels.
• Co-processor Supports the 80C287 math engine as the listed co-processor option.

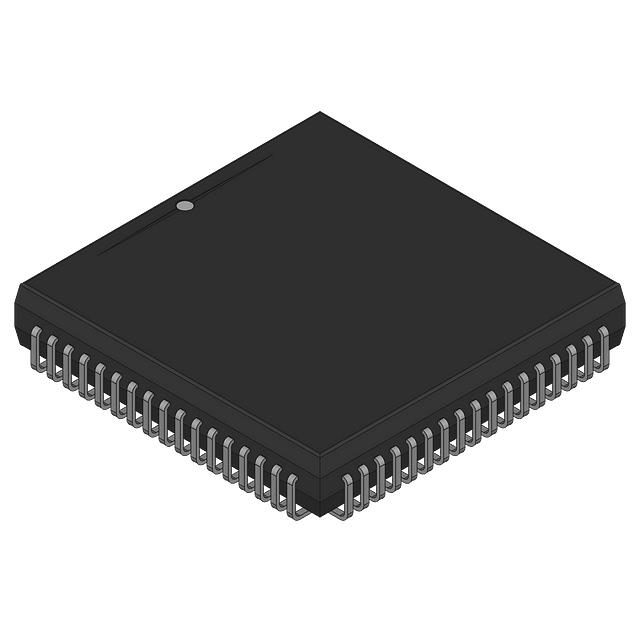

• Package & Mounting 68-PLCC package (24.21×24.21 mm) with a 68-LCC (J-Lead) case, intended for surface-mount PCB assembly.
• Temperature & Grade Commercial grade operation with an operating temperature range of 0 °C to 100 °C.
• Environmental Compliance RoHS compliant for environmental regulation adherence.

Typical Applications

• Embedded Systems Integration as a 16-bit microprocessor core in commercial embedded products requiring 20 MHz operation and 5 V I/O.
• Industrial Control Use in commercial industrial equipment where surface-mount PLCC packaging and the specified temperature range are appropriate.
• Instrumentation 16-bit processing tasks in commercial measurement and test instruments.
• Am80286 Series Designs Upgrades or new designs based on the Am80286 series architecture and associated co-processor support.

Unique Advantages

• Proven 80C286 Core: Single 16-bit core provides straightforward processing for embedded commercial applications.
• Co-processor Compatibility: Listed support for the 80C287 math engine enables enhanced numeric processing where needed.
• Compact Surface-Mount Package: 68-PLCC (24.21×24.21 mm) offers a standardized footprint for PCB assembly and integration.
• Commercial Temperature Range: Rated from 0 °C to 100 °C to meet common commercial environment requirements.
• Standard 5 V I/O: Ensures compatibility with widely used commercial logic families and system designs.
• RoHS Compliant: Conforms to RoHS environmental requirements for regulatory compliance.

Why Choose N80C286-20?

The N80C286-20 combines the established 80C286 core and Am80286 series pedigree with a 20 MHz operating frequency and 16-bit architecture, packaged in a surface-mount 68-PLCC form factor. Its 5 V I/O, compatibility with the 80C287 math co-processor, and commercial temperature rating make it a practical choice for designers targeting commercial embedded and instrumentation applications.

Manufactured by Advanced Micro Devices and RoHS compliant, the N80C286-20 is suited to projects that require a reliable 16-bit microprocessor solution with defined electrical and thermal characteristics for board-level integration.
