N80C286-16

The N80C286-16 is a single-core 80C286 microprocessor IC optimized for 16-bit embedded applications. It operates at 16 MHz and provides a straightforward, commercial-grade processing option for systems requiring a legacy 16-bit core and standard surface-mount packaging.

Manufactured by Advanced Micro Devices and part of the Am80286 series, this device targets embedded and industrial designs that need a 16-bit processor with 5 V I/O and a compact 68-pin PLCC footprint.

Key Features

• 80C286 Core  Single 16-bit core based on the 80C286 architecture for classic 16-bit processing requirements.
• Clock Speed  Operates at 16 MHz to meet modest performance requirements in embedded control and legacy systems.
• Power and I/O  5 V I/O voltage compatible with traditional TTL-level systems and established embedded power rails.
• Co-Processor Support  Supports the 80C287 math engine for systems that require optional hardware-assisted arithmetic.

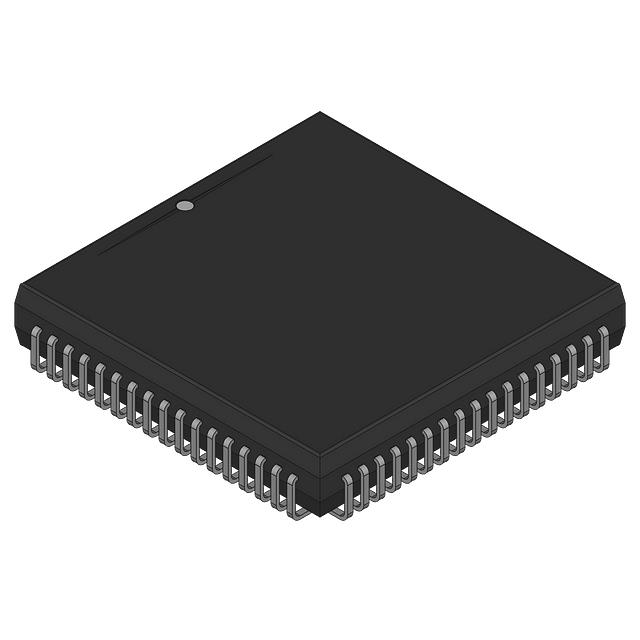

• Package and Mounting  Supplied in a 68-PLCC (24.21 × 24.21 mm) package with J-lead (68-LCC) configuration for surface-mount assembly.
• Operating Temperature  Commercial-grade range from 0°C to 100°C suitable for general industrial and commercial environments.
• Grade  Commercial grade device for standard embedded product applications.
• Graphics  No integrated graphics acceleration, focusing the device on core processing tasks.
• Environmental Compliance  RoHS compliant for reduced hazardous substance concerns in production and end products.

Typical Applications

• Embedded Control Systems  Used as a 16-bit control processor for industrial controllers, instrumentation, and automation where legacy architectures are required.
• Industrial Equipment  Suitable for machine control and process interfaces that operate within commercial temperature ranges and 5 V I/O domains.
• Legacy System Maintenance  Direct fit for repair, refurbishment, or continuation of products designed around the Am80286 family and PLCC packaging.

Unique Advantages

• Established 16-bit Architecture:  The 80C286 core provides a familiar instruction set and design approach for engineers working with Am80286-series designs.
• Standard PLCC Package:  68-PLCC (24.21 × 24.21 mm) with J-lead offers a compact, surface-mount footprint that fits legacy sockets and modern SMT assembly.
• Optional Math Co-Processor:  Support for the 80C287 math engine enables enhanced arithmetic performance where needed without changing the main CPU.
• Commercial Temperature Rating:  Rated 0°C to 100°C for deployment in a wide range of commercial and light industrial environments.
• RoHS Compliant:  Meets RoHS requirements to support environmentally conscious manufacturing and product compliance programs.

Why Choose N80C286-16?

The N80C286-16 delivers a straightforward, manufacturer-backed 16-bit processing solution for embedded designs that require the Am80286 architecture. With a 16 MHz clock, 5 V I/O, and surface-mount 68-PLCC packaging, it addresses applications where compatibility with existing 16-bit designs and standard PLCC footprints is important.

Its commercial temperature range and RoHS compliance make it suitable for general industrial and embedded use, while optional 80C287 co-processor support allows designers to add hardware math acceleration without changing core architecture. Manufactured by Advanced Micro Devices, the N80C286-16 is positioned for projects that prioritize proven 16-bit performance and standard packaging.
