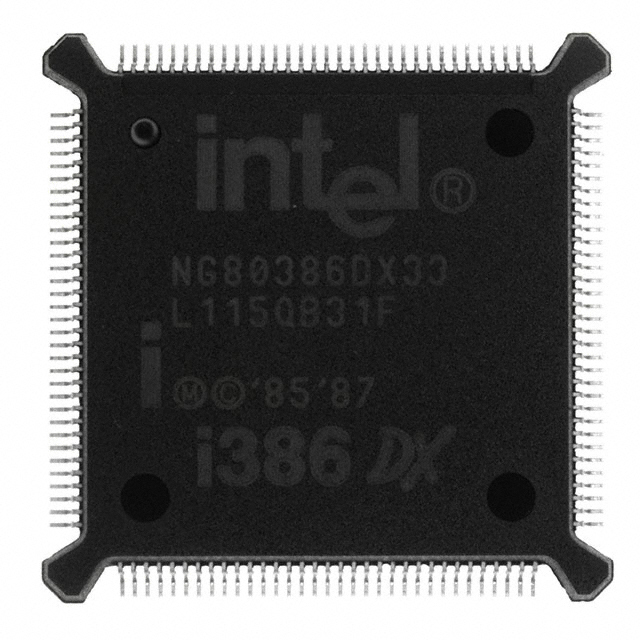

NG80386DX33

The NG80386DX33 is an Intel i386 series microprocessor featuring an Intel386 DX core running at 33 MHz. It provides a single 32-bit processing core with a DRAM controller and support for the Intel387 DX math coprocessor.

Designed for embedded applications, this commercial-grade, surface-mount device is offered in a 132-QFP package, operates from a 5 V I/O supply, and is RoHS compliant.

Key Features

• Core and Architecture Intel386 DX core providing a single 32-bit processing core at 33 MHz for general-purpose embedded processing.
• Memory Interface Integrated DRAM controller to support external DRAM memory configurations required by system designs.
• Coprocessor Support Compatible with the Intel387 DX math engine coprocessor for hardware-accelerated numeric operations.
• Power and I/O 5 V I/O operating voltage suitable for legacy 5 V embedded system designs.
• Package and Mounting 132-QFP supplier device package and surface-mount mounting type for PCB assembly in compact systems.
• Operating Range and Grade Commercial grade device with an operating temperature range of 0°C to 85°C.
• Standards and Compliance RoHS compliant for environmental regulatory requirements.
• Graphics No integrated graphics acceleration, focusing the device on CPU and numeric processing tasks.

Typical Applications

• Embedded Control Systems Single-chip 32-bit processing and DRAM support make it suitable for embedded controllers and system controllers within the commercial temperature range.
• Numeric and Signal Processing Use with the Intel387 DX math coprocessor for applications requiring additional floating-point or numeric computation acceleration.
• Legacy and Industrial Equipment 5 V I/O and 132-QFP surface-mount package accommodate integration into existing commercial embedded hardware platforms.

Unique Advantages

• Proven Intel386 DX Core: Provides a known 32-bit processing architecture at 33 MHz for predictable system behavior.
• DRAM Controller Included: Reduces external memory interface complexity by providing on-chip DRAM controller functionality.
• Coprocessor Compatibility: Enables the addition of the Intel387 DX math engine for enhanced numeric performance without changing the CPU.
• Surface-Mount 132-QFP: Compact package format suitable for PCB assembly in space-constrained embedded designs.
• Commercial Temperature Grade: Operates across 0°C to 85°C for typical commercial environment deployments.
• RoHS Compliant: Meets environmental compliance requirements for lead-free assemblies.

Why Choose NG80386DX33?

The NG80386DX33 combines a single 32-bit Intel386 DX core at 33 MHz with integrated DRAM control and Intel387 DX coprocessor support, packaged in a 132-QFP surface-mount device. Its 5 V I/O, commercial temperature rating, and RoHS compliance make it a practical choice for embedded system designs that require this specific combination of legacy voltage levels, numeric coprocessor support, and board-level integration.

Ideal for designers and procurement teams working on commercial embedded platforms that target the i386 series architecture, the NG80386DX33 delivers a straightforward, verifiable specification set for systems requiring 32-bit processing, DRAM interfacing, and optional math coprocessor expansion.

Request a quote or submit an inquiry today to check availability and pricing for the NG80386DX33.
