NG80386SXL-33

The NG80386SXL-33 is an Am386SXL-series microprocessor engineered for embedded applications. It provides a single 32-bit core running at 33 MHz with 3.3 V I/O and support for the 387SX math engine.

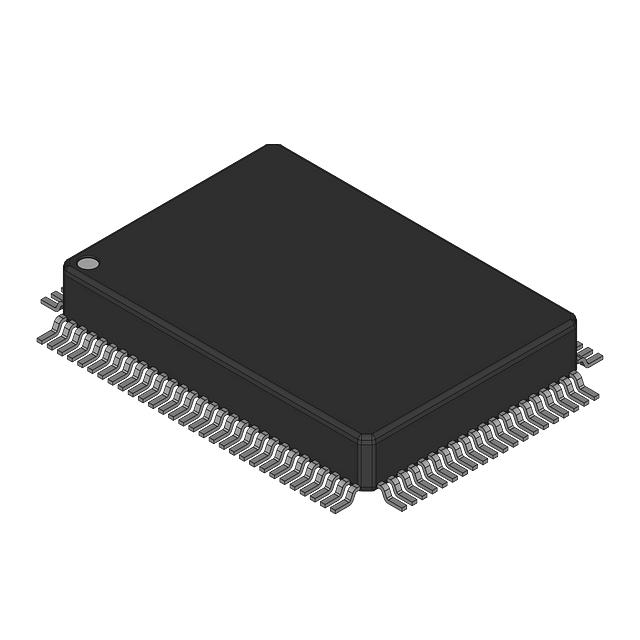

This device is supplied in a 100-pin PQFP surface-mount package (19.05 × 19.05 mm) and is targeted at commercial-grade embedded designs where a compact, RoHS-compliant 32-bit MPU is required.

Key Features

• Core  Am386SXL single-core, 32-bit processor operating at 33 MHz for general-purpose embedded computation.
• Math Co-Processor Support  Compatible with the 387SX math engine to accelerate floating-point operations where required.
• Power and I/O  3.3 V I/O for interface compatibility with 3.3 V logic domains.
• Package & Mounting  Supplier device package: 100-PQFP (19.05 × 19.05 mm); package case noted as 100-BQFP bumpered; designed for surface-mount assembly.
• Operating Range & Grade  Commercial grade with an operating temperature range of 0 °C to 100 °C.
• Environmental Compliance  RoHS compliant, meeting common lead-free requirements for electronic assembly.

Typical Applications

• Embedded Systems  For embedded designs requiring a single 32-bit core at 33 MHz and 3.3 V I/O.
• Board-Level Integration  Suitable for compact surface-mount board layouts using a 100-PQFP footprint.
• Commercial Control Equipment  Applicable in commercial-grade control and processing units that operate within 0 °C to 100 °C.

Unique Advantages

• 32-bit Processing at 33 MHz: Provides defined performance characteristics for deterministic embedded tasks.
• 387SX Math Engine Support: Enables offloading of floating-point calculations to a compatible co-processor.
• 3.3 V I/O Compatibility: Matches common 3.3 V logic domains for easier interface integration.
• Compact 100-PQFP Package: 100-pin PQFP (19.05 × 19.05 mm) surface-mount package suitable for high-density board designs.
• Commercial Temperature Grade: Rated for operation from 0 °C to 100 °C to meet typical commercial deployment environments.
• RoHS Compliant: Conforms to lead-free assembly requirements for modern electronics manufacturing.

Why Choose NG80386SXL-33?

The NG80386SXL-33 combines a single Am386SXL 32-bit core running at 33 MHz with 3.3 V I/O and optional 387SX math engine support in a compact 100-pin PQFP surface-mount package. Its commercial temperature rating (0 °C to 100 °C) and RoHS compliance make it suitable for a range of embedded, board-level applications where these specific electrical, thermal, and packaging characteristics are required.

Manufactured by Advanced Micro Devices and offered as a surface-mount 100-PQFP device, the NG80386SXL-33 is a practical choice for designers specifying a defined 32-bit MPU footprint, 3.3 V interfaces, and compatibility with 387SX floating-point co-processing.

Request a quote or submit an RFQ for the NG80386SXL-33 to receive pricing and availability information tailored to your project needs.
