NT80960JC5016

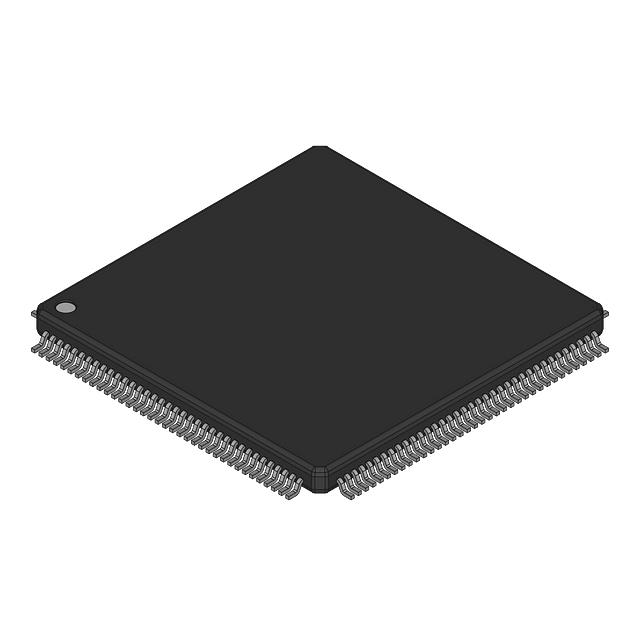

The NT80960JC5016 is an Intel i960 series microprocessor packaged in a 132‑pin QFP, featuring a single 32‑bit core running at 50 MHz. It is designed for embedded, commercial applications requiring a straightforward, DRAM‑capable processing element with standard 3.3 V I/O.

This surface‑mount MPU offers a compact package option and an operating temperature range of 0 °C to 100 °C, suitable for commercial embedded system designs where predictable performance and industry‑standard interfaces are required.

Key Features

• Core & Architecture Single i960 core, 32‑bit architecture running at 50 MHz for deterministic embedded processing.
• Memory Support Integrated support for DRAM controllers to simplify external memory interfacing in system designs.
• Power & I/O 3.3 V I/O voltage for compatibility with common commercial embedded logic levels.
• Package & Mounting 132‑pin QFP in a surface‑mount format for dense PCB layouts and automated assembly.
• Operating Range & Grade Commercial grade device specified for 0 °C to 100 °C operation.
• Compliance RoHS compliant, meeting standard environmental regulatory requirements for lead‑free assemblies.

Typical Applications

• Commercial Embedded Systems — Acts as a 32‑bit MPU for control and processing tasks in general embedded devices requiring a single 50 MHz core.
• DRAM‑Based Designs — Suitable where external DRAM is required, leveraging the device's DRAM controller capability for memory‑intensive tasks.
• Compact Surface‑Mount Products — The 132‑QFP package supports compact PCB layouts and automated surface‑mount assembly processes.
• Embedded Control and Communication Modules — Use as the main processing element in modules that interface with standard 3.3 V logic and memory subsystems.

Unique Advantages

• Predictable 32‑bit Performance: The single i960 core at 50 MHz provides a consistent processing profile for embedded control tasks.
• Direct DRAM Interface: Built‑in DRAM controller support reduces external glue logic and simplifies memory subsystem integration.
• Standard 3.3 V I/O: Ensures compatibility with common commercial logic families and peripheral devices.
• Surface‑Mount 132‑QFP: A compact, widely used package that supports automated assembly and dense board layouts.
• Commercial Temperature Range: Rated for 0 °C to 100 °C operation to meet typical commercial deployment conditions.
• RoHS Compliant: Meets environmental requirements for lead‑free manufacturing and assembly.

Why Choose NT80960JC5016?

The NT80960JC5016 combines the Intel i960 single 32‑bit core architecture with DRAM controller capability and standard 3.3 V I/O in a compact 132‑QFP surface‑mount package. It is positioned for commercial embedded designs that require a reliable, predictable MPU with straightforward memory interfacing and board‑level integration.

This part is suited for developers and procurement teams building commercial embedded products who need a known i960‑series solution packaged for surface‑mount assembly and compliant with RoHS requirements.

Request a quote or submit an inquiry to receive pricing, availability, and ordering details for NT80960JC5016. Our team can provide support for lead times and volume requirements.
