NT80960JT10016

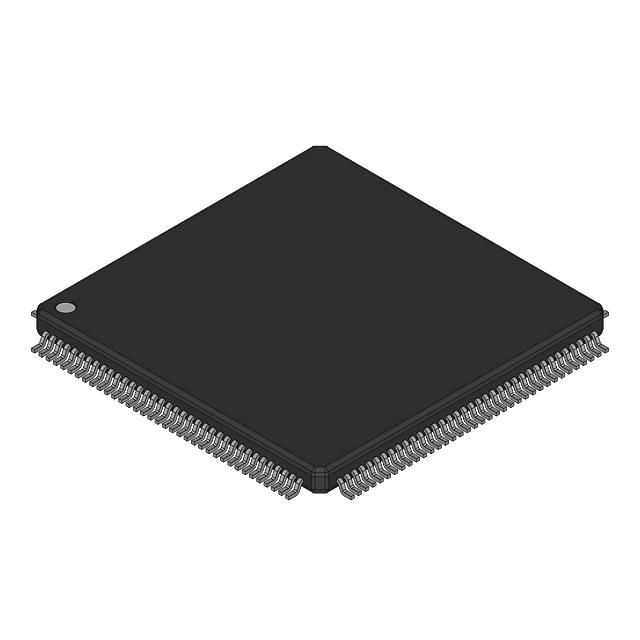

The NT80960JT10016 is a single-core, 32-bit microprocessor based on the Intel i960 core, operating at 100 MHz. It is supplied in a 132‑lead QFP surface-mount package and is intended for embedded and commercial applications requiring a compact, board‑level MPU solution.

Key attributes include a 100 MHz clock, 3.3 V I/O, integrated DRAM controller support, and a commercial operating temperature range of 0 °C to 100 °C, making it suitable for a range of general-purpose embedded designs.

Key Features

• Core and Architecture  Single i960 core, 32‑bit architecture for deterministic, general-purpose processing in embedded designs.
• Clock Speed  100 MHz operating frequency as specified for the device.
• Voltage and I/O  3.3 V I/O compatibility suitable for common board-level logic voltages.
• Memory Support  On-chip DRAM controller support for interfacing with external DRAM memory systems.
• Package and Mounting  132‑lead QFP (132‑QFP) surface-mount package for PCB integration and standard assembly flows.
• Operating Range and Grade  Commercial grade device with an operating temperature range of 0 °C to 100 °C.
• Graphics Acceleration  No graphics acceleration included; intended as a general-purpose MPU core.
• Environmental Compliance  RoHS compliant.

Typical Applications

• Embedded Systems  Board‑level MPU for general embedded control and processing tasks using the Intel i960 core.
• Commercial Equipment  Suited to commercial‑grade devices where a 0 °C to 100 °C operating range is acceptable.
• DRAM-Based Designs  Designs that require external DRAM memory can leverage the device’s DRAM controller support.
• Surface-Mount PCB Integration  132‑QFP surface-mount packaging enables compact PCB layouts and standard assembly processes.

Unique Advantages

• Single 32‑bit i960 Core: Provides a straightforward, single‑core processing element for deterministic embedded workloads.
• 100 MHz Operating Frequency: Clearly specified clock rate for design planning and performance budgeting.
• 3.3 V I/O Compatibility: Matches common logic voltage domains for easier integration with standard peripherals and interfaces.
• Integrated DRAM Controller: Simplifies memory interfacing for systems using external DRAM.
• Standard 132‑QFP Package: Enables broad PCB assembly compatibility and predictable mechanical footprint.
• Commercial Temperature and RoHS Compliance: Commercial‑grade operating range (0 °C to 100 °C) combined with RoHS compliance supports production deployment in commercial products.

Why Choose NT80960JT10016?

The NT80960JT10016 offers a practical, board‑level microprocessor solution based on the Intel i960 series, combining a single 32‑bit core at 100 MHz with on‑board DRAM controller capability and 3.3 V I/O. Its 132‑lead QFP surface-mount package and commercial temperature rating make it appropriate for compact embedded and commercial applications that require a known, specification-driven MPU.

As a RoHS‑compliant part from the Intel i960 family, this device is positioned for designers seeking a stable, producible MPU option for DRAM‑based, surface‑mount systems where the specified electrical and thermal characteristics match project requirements.

Request a quote or submit a purchase inquiry to obtain pricing and availability for NT80960JT10016.
