OMAP3503ECBCA

The OMAP3503ECBCA is a microprocessor IC in the OMAP3503 series featuring an ARM® Cortex®-A8 core. It is positioned for embedded applications that need a single 32‑bit application processor with integrated memory and peripheral controllers.

With an ARM Cortex‑A8 core, multimedia DSP/NEON co‑processing and on‑chip support for LPDDR, LCD and USB interfaces, the device offers a compact, connectivity‑focused building block for embedded systems requiring processor performance and peripheral integration.

Key Features

• Core: Single ARM® Cortex®‑A8 32‑bit core providing the primary application processing capability for embedded designs.
• Co‑Processors / DSP: Multimedia co‑processors including NEON™ SIMD for vector processing and additional multimedia DSP resources to accelerate signal and media tasks.
• Memory Interface: Integrated LPDDR controller to interface directly with low‑power DDR memory, simplifying memory subsystem design.
• Display Controller: LCD display interface controller for driving embedded display panels and user interfaces.
• USB Connectivity: Multiple USB ports including three USB 1.x ports and one USB 2.0 port to support a range of peripheral and host connectivity options.

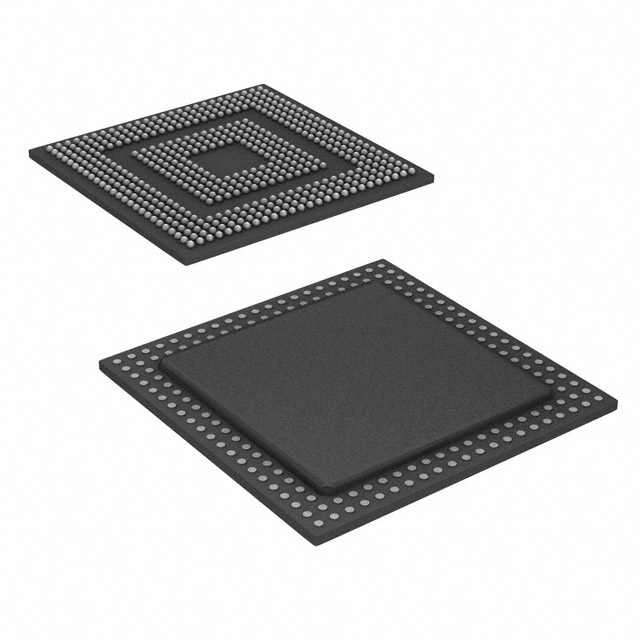

• Package & Mounting: Available in a 515‑VFBGA / FCBGA format with supplier device package 515‑POP‑FCBGA (14×14) and surface‑mount mounting for compact board layouts.
• Graphics Acceleration: No dedicated graphics acceleration is provided; the device focuses on general‑purpose CPU and multimedia DSP resources.
• Operating Temperature: Rated for commercial operation from 0 °C to 90 °C.
• Environmental Compliance: RoHS compliant, meeting common environmental material requirements.

Typical Applications

• Embedded multimedia and display systems — Use the Cortex‑A8 core together with the LCD controller and multimedia co‑processors to implement user interfaces and media playback in embedded products.
• USB‑enabled embedded devices — Multiple USB ports support connection to peripherals, storage and external interfaces for embedded appliances and equipment.
• Commercial and industrial control — The commercial operating temperature range and integrated peripherals suit a variety of embedded control and monitoring applications.

Unique Advantages

• Integrated processing and multimedia support: The combination of an ARM Cortex‑A8 core with multimedia DSP and NEON SIMD provides compute and signal processing capability without extensive external accelerators.
• On‑chip memory interface: LPDDR controller integration reduces external memory interface complexity and board‑level routing requirements.
• Built‑in display and USB interfaces: Native LCD controller plus multiple USB ports lower bill‑of‑materials and simplify system integration for display‑centric and connected devices.
• Compact FCBGA package: The 515‑ball FCBGA (515‑POP‑FCBGA 14×14) package enables a smaller PCB footprint for space‑constrained designs.
• Commercial temperature and RoHS compliance: Rated 0 °C to 90 °C and RoHS compliant, supporting standard commercial deployments with environmental material compliance.
• Manufacturer support: Produced by Texas Instruments, providing traceability to a major semiconductor supplier.

Why Choose OMAP3503ECBCA?

OMAP3503ECBCA combines a single ARM Cortex‑A8 core with multimedia co‑processors, LPDDR memory interface, LCD controller and multiple USB ports to deliver a well‑integrated microprocessor IC for embedded applications. Its packaging and surface‑mount form factor make it suitable for compact, board‑level implementations where integration and connectivity are priorities.

This part is suited to developers and designers building commercial embedded systems that require a balance of application processing, media handling and peripheral connectivity, backed by Texas Instruments manufacturing and product support.

Request a quote or submit an inquiry to obtain pricing and availability for OMAP3503ECBCA.
