OMAP3530DCBC72

The OMAP3530DCBC72 is an ARM® Cortex®‑A8 microprocessor IC from the OMAP3530 series, featuring a single 32‑bit core running at 720 MHz. Designed for embedded applications, it integrates multimedia acceleration, display control and a variety of peripheral interfaces to address feature‑rich commercial systems.

With on‑chip co‑processors for signal and multimedia processing, LPDDR memory controller support, LCD display controller and multiple USB ports, this device targets embedded designs that require balanced processing performance and integrated I/O.

Key Features

• Core — ARM® Cortex®‑A8 single core, 32‑bit operation at 720 MHz for general-purpose embedded processing.
• Co‑processors & Multimedia — Includes C64x+ DSP capabilities and NEON™ SIMD for signal processing and multimedia acceleration.
• Memory — LPDDR memory controller support for typical embedded memory architectures.
• Display — Integrated LCD display interface controller to support on‑board display subsystems.
• USB Connectivity — Provides USB 1.x (3 ports) and USB 2.0 (1 port) to support a range of USB host/device requirements.
• Additional Interfaces — HDQ/1‑Wire interface for simple peripheral connectivity.
• Graphics Acceleration — On‑chip graphics acceleration to support multimedia and UI tasks.

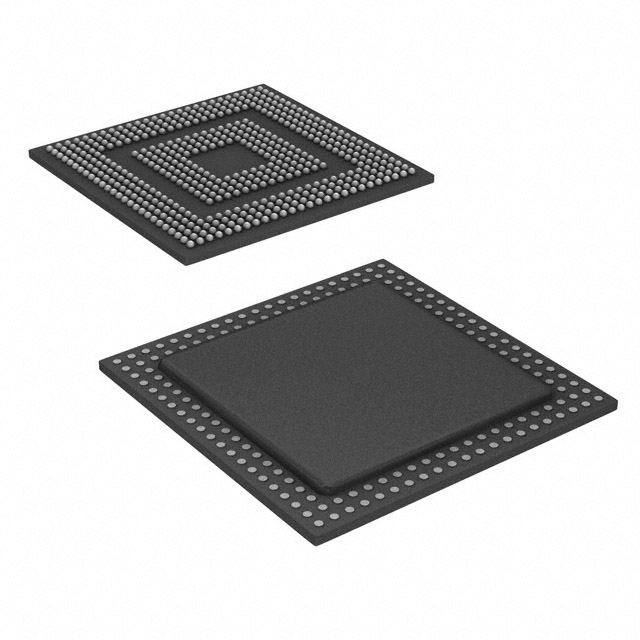

• Package & Mounting — Supplier device package: 515‑POP‑FCBGA (14×14); package case references include 515‑VFBGA and FCBGA. Surface mount mounting type.
• Operating Range & Compliance — Commercial grade operating temperature 0 °C to 90 °C. RoHS compliant.

Typical Applications

• Embedded multimedia platforms — Leverage the Cortex‑A8 core, NEON SIMD and C64x+ DSP for audio/video processing and media playback tasks.
• Display‑centric devices — Use the integrated LCD controller and graphics acceleration for user interfaces and display systems.
• USB‑enabled embedded systems — Multiple USB ports support connectivity for peripherals, storage and USB host/device functions.
• LPDDR memory designs — LPDDR controller support makes the device suitable for embedded systems that require external low‑power DRAM.

Unique Advantages

• Integrated multimedia and signal processing: C64x+ DSP and NEON™ SIMD co‑processors combined with graphics acceleration enable offload of compute‑intensive multimedia tasks.
• Versatile I/O mix: Multiple USB ports plus HDQ/1‑Wire and LCD controller coverage reduce the need for additional interface ICs.
• Compact POP FCBGA package: 515‑POP‑FCBGA (14×14) supplier package supports package‑on‑package assembly options and compact board layouts.
• Commercial temperature range: Rated 0 °C to 90 °C for a wide range of commercial embedded deployments.
• RoHS compliant and manufacturer‑backed: Built by Texas Instruments and compliant with RoHS requirements for regulated environments.

Why Choose OMAP3530DCBC72?

The OMAP3530DCBC72 positions itself as a highly integrated microprocessor for commercial embedded designs that require balanced compute performance, multimedia capabilities and a broad set of peripheral interfaces. Its single ARM® Cortex®‑A8 core at 720 MHz, combined with DSP and SIMD co‑processing and on‑chip graphics/display support, make it suitable for systems that consolidate processing and I/O in a single device.

Backed by the Texas Instruments OMAP3530 family, this device delivers a compact package option, LPDDR memory support and multiple USB interfaces—offering a practical platform for developers targeting feature‑rich embedded applications with documented commercial operating range and RoHS compliance.

Request a quote or submit an inquiry to receive pricing and availability information for the OMAP3530DCBC72 and to discuss how it fits your embedded design requirements.
