OMAP3530DCBCA

The OMAP3530DCBCA is a single-core ARM® Cortex®-A8 microprocessor IC running at 720 MHz from the Texas Instruments OMAP3530 series. It is a 32-bit embedded MPU designed for industrial-grade applications that require integrated signal-processing and multimedia acceleration.

With on-chip DSP and NEON™ SIMD support, LPDDR memory controller, display interface and a comprehensive set of peripheral interfaces, this device targets embedded and industrial systems needing performance, peripheral integration and extended operating temperature coverage.

Key Features

• Core  The device integrates one ARM® Cortex®-A8 core operating at 720 MHz, delivering single-core 32-bit processing.
• Co-Processors  Integrated signal-processing and multimedia co-processors: C64x+ DSP and NEON™ SIMD for accelerated media and signal workloads.
• Memory  LPDDR memory controller support for interfacing with low-power DDR memory.
• Graphics & Display  Graphics acceleration is included and an LCD display interface controller is provided for embedded display applications.
• Connectivity  USB support includes three USB 1.x ports and one USB 2.0 port; additional HDQ/1-Wire interface is available for simple device communications.

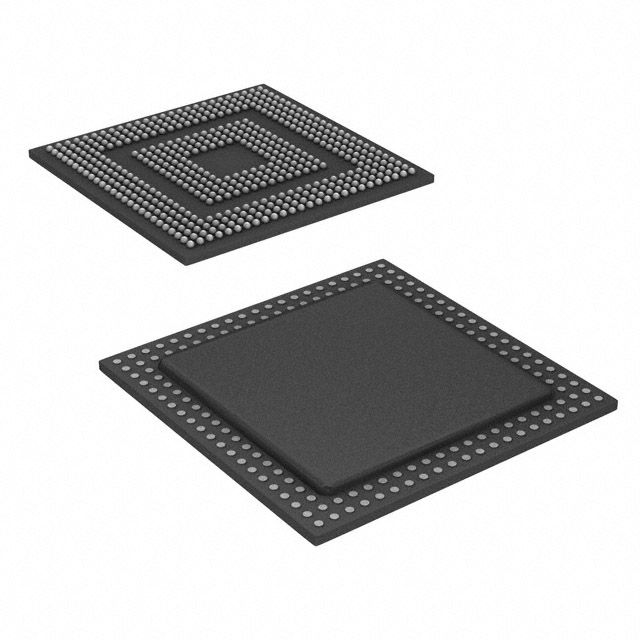

• Package & Mounting  Supplier device package: 515-POP-FCBGA (14x14). Package case listed as 515-VFBGA, FCBGA; designed for surface-mount assembly.
• Industrial Grade & Temperature Range  Industrial-grade device with an operating temperature range of −40 °C to 105 °C.
• Environmental  RoHS compliant.

Typical Applications

• Industrial Embedded Systems  Use the OMAP3530DCBCA in industrial controllers and automation platforms requiring an industrial temperature range and integrated processing.
• Human-Machine Interfaces (HMI)  Leverage the LCD controller and graphics acceleration for embedded user interfaces and display-driven control panels.
• Multimedia & Signal Processing Devices  Employ the C64x+ DSP and NEON™ SIMD co-processors for signal and multimedia processing tasks within embedded products.
• Peripheral-Connected Systems  Utilize multiple USB ports and HDQ/1-Wire for connectivity to sensors, storage and peripheral devices.

Unique Advantages

• High-performance ARM® Cortex®-A8 core: 720 MHz single 32-bit core provides a balanced compute capability for embedded workloads.
• Integrated DSP and SIMD acceleration: On-chip C64x+ and NEON™ SIMD co-processors accelerate signal and multimedia processing without adding external ICs.
• Display-ready integration: Built-in LCD controller and graphics acceleration simplify implementation of display-based user interfaces.
• Robust industrial operation: Rated for −40 °C to 105 °C to meet demanding environmental requirements.
• Compact surface-mount package: 515-POP-FCBGA (14x14) package supports space-constrained board designs.
• Comprehensive I/O set: Multiple USB ports plus HDQ/1-Wire support a wide range of peripherals and simple device communications.

Why Choose OMAP3530DCBCA?

The OMAP3530DCBCA combines a 720 MHz ARM® Cortex®-A8 core with integrated DSP and NEON™ SIMD acceleration, LPDDR memory support, display and USB interfaces, and an industrial temperature rating to deliver a highly integrated solution for embedded and industrial designs. It is a suitable option for designers seeking a single-chip MPU with multimedia and signal-processing capabilities in a compact FCBGA package.

As part of the Texas Instruments OMAP3530 series, this device is positioned for applications that require a balance of processing performance, peripheral integration and extended temperature operation, providing predictable implementation choices for long-term embedded product designs.

Request a quote or submit a quote for OMAP3530DCBCA to receive pricing and availability information for your design and procurement planning.
