OMAP3530DCBC

The OMAP3530DCBC is an ARM® Cortex®-A8 based microprocessor IC from the OMAP3530 series, delivering a 32-bit single-core CPU clocked at 720 MHz in a 515-POP-FCBGA (14×14) package. Designed for embedded applications, it integrates signal-processing and multimedia co-processors alongside display and connectivity interfaces to support compact, display-driven systems.

Key value comes from its integration of DSP and NEON™ SIMD engines, LPDDR memory controller, on-chip graphics acceleration and multiple USB interfaces, enabling streamlined designs for commercial embedded products operating across a 0 °C to 90 °C range.

Key Features

• Core — ARM® Cortex®-A8 single-core, 32-bit processor running at 720 MHz for general-purpose application processing.
• Co-Processors — Integrated signal processing and C64x+ DSP engines plus NEON™ SIMD for multimedia and compute-accelerated workloads.
• Memory Support — LPDDR memory controller for connection to low-power DDR memory devices.
• Display and Graphics — On-chip graphics acceleration and LCD display interface controller to support visual user interfaces and graphics rendering.
• Connectivity — Multiple USB ports: three USB 1.x and one USB 2.0, plus an HDQ/1-Wire interface for simple peripheral and sensor connectivity.

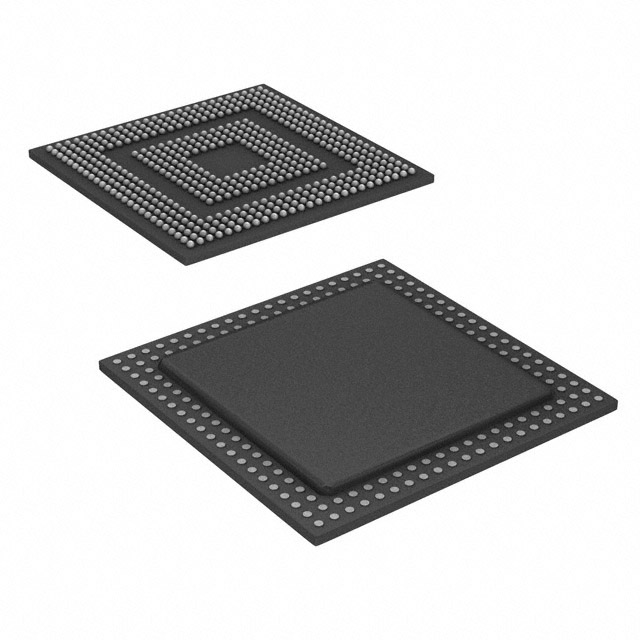

• Package & Mounting — 515-POP-FCBGA (14×14) supplier device package; 515-VFBGA FCBGA package case; surface-mount mounting type for compact PCB integration.
• Commercial Grade & Temperature — Commercial grade device with an operating temperature range of 0 °C to 90 °C.
• Compliance — RoHS compliant.

Typical Applications

• Embedded Systems — General embedded processing where a single 720 MHz Cortex-A8 core with DSP acceleration is required for control and application tasks.
• Multimedia Devices — Devices requiring multimedia processing and accelerated graphics with NEON™ SIMD and on-chip graphics acceleration paired with LCD control.
• USB-Connected Peripherals — Products that need multiple USB interfaces for peripheral connectivity and communication.
• User Interfaces — HMI and display-equipped designs leveraging the LCD controller and graphics acceleration for responsive visual interfaces.

Unique Advantages

• Integrated Processing and DSP: Combines an ARM® Cortex®-A8 core with C64x+ DSP and NEON™ SIMD to handle control, signal processing, and multimedia workloads within a single device.
• Display-Ready Integration: On-chip graphics acceleration plus an LCD controller reduce external component needs for display-driven applications.
• Multiple USB Interfaces: Three USB 1.x ports and one USB 2.0 port enable flexible peripheral and host connectivity options without extensive external logic.
• Compact, Surface-Mount Packaging: 515-POP-FCBGA (14×14) package supports high-density PCB designs and surface-mount assembly processes.
• Commercial Temperature and RoHS Compliance: Rated for 0 °C to 90 °C operation and RoHS compliant to meet commercial product requirements.
• LPDDR Memory Support: On-chip LPDDR controller simplifies memory subsystem design for systems requiring low-profile DRAM.

Why Choose OMAP3530DCBC?

The OMAP3530DCBC positions itself as a compact, integrated MPU for commercial embedded designs that need a balanced combination of general-purpose processing, DSP acceleration, multimedia capabilities, and display connectivity. Its 720 MHz Cortex-A8 core combined with C64x+ DSP and NEON™ SIMD enables designs that consolidate processing tasks and multimedia offload within a single package.

As part of the OMAP3530 series from Texas Instruments, this device is suited to development efforts focused on display-driven embedded products and USB-connected peripherals where package density, integrated interfaces, and compliance with commercial temperature ranges and RoHS are important considerations.

Request a quote or submit a purchase inquiry to receive pricing and availability for the OMAP3530DCBC and to discuss suitability for your design requirements.
