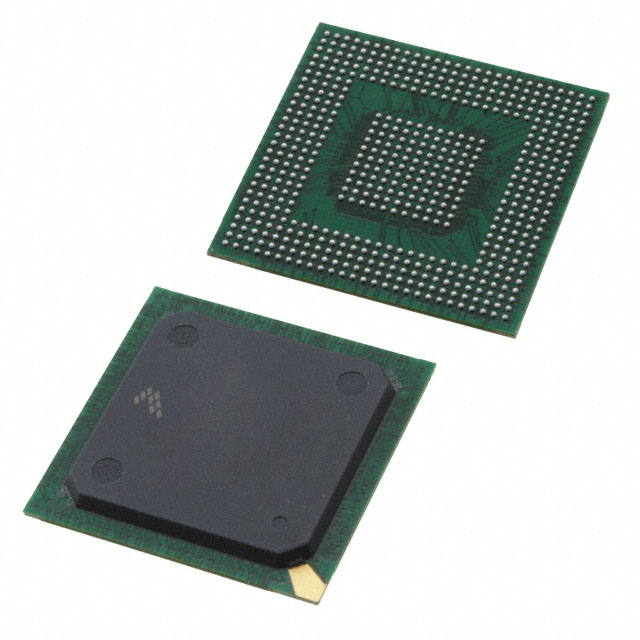

P1015NSE5DFB

The P1015NSE5DFB from NXP Semiconductors is a single-core PowerPC e500v2 microprocessor running at 667 MHz, offered in a 561-TEPBGA surface-mount package. Designed for industrial applications, it delivers an integrated communications-focused feature set including multi-gigabit Ethernet, USB 2.0 with PHY, DDR3 memory controller and hardware security functions.

Key Features

• Core & Architecture PowerPC e500v2 32-bit core operating at 667 MHz, suitable for single-core embedded control and communications tasks.
• Cache & Memory 256 KB L2 cache with configurable partitioning and a DDR3 memory controller for system memory interfacing.
• Security & Acceleration Integrated security acceleration (SEC 4.4), cryptography support and a hardware random number generator to support secure communications and cryptographic workloads.
• Networking Interfaces Three 10/100/1000 Mbps Ethernet ports for multi-port networking and gateway applications.
• USB & Peripheral Interfaces Two USB 2.0 ports with PHY, plus DUART and other peripheral interfaces for control and connectivity.
• System & I/O On-chip networking elements and DMA controllers support data movement; additional on-chip peripherals include timers, I2C, SPI and SD/MMC (series-level features).
• Process & Integration Built on 45 nm technology (series-level), offering an integration balance between performance and power for communications and control applications.
• Package & Temperature 561-TEPBGA I (23×23) surface-mount package in tray; industrial operating temperature range 0 °C to 125 °C.

Typical Applications

• Multi-service Gateways Single-core processing with multiple Gigabit Ethernet ports and hardware security makes this device suitable for compact gateway and routing designs.
• Ethernet Switch Controllers Integrated Ethernet interfaces and DMA support enable use as a controller in small form-factor switch applications.
• Wireless LAN Access Points 32-bit e500v2 performance, USB connectivity and high-speed Ethernet support WLAN control and backhaul tasks.
• Industrial Control Systems Industrial temperature qualification and robust peripheral set support controller roles in industrial networking and automation equipment.

Unique Advantages

• Single-core, focused performance: 667 MHz PowerPC e500v2 core provides deterministic 32-bit processing for control and communications workloads.
• Integrated memory and I/O: DDR3 controller, multiple Ethernet ports and USB 2.0 with PHY reduce external component count and simplify board design.
• Hardware security: SEC 4.4 acceleration, cryptography and a random number generator support secure data paths without offloading to external devices.
• Compact thermal footprint: 561-TEPBGA package and 45 nm process (series-level) support compact, thermally constrained designs.
• Industrial readiness: Specified operating range of 0 °C to 125 °C and industrial qualification target deployments in harsher environments.

Why Choose P1015NSE5DFB?

The P1015NSE5DFB combines a 667 MHz PowerPC e500v2 core with a comprehensive set of communications and security peripherals, making it a practical choice for industrial networking, gateway and controller designs that require integrated Ethernet, USB and memory interfaces. Its on-chip accelerators and configurable L2 cache help optimize performance and system integration while reducing external BOM.

This device is suited to engineers and procurement teams building compact, industrial-grade embedded systems that need reliable networking, integrated security, and a proven Power Architecture core backed by NXP’s QorIQ P1 series design approach.

Request a quote or submit a purchase inquiry to get pricing, availability and lead-time information for the P1015NSE5DFB.
