P1015NSN5FFB

The P1015NSN5FFB is a single-core microprocessor featuring a PowerPC e500v2 core running at 667 MHz. It is part of the QorIQ P1 family, designed for embedded networking and communications applications that require a balance of performance, integration and power efficiency.

Targeted markets include networking, telecom, defense and industrial applications where integrated interfaces, hardware security acceleration and compact packaging are important design considerations.

Key Features

• Core  PowerPC e500v2 single-core processor running at 667 MHz with 32-bit bus width and 32 KB L1 instruction and 32 KB L1 data caches.
• Level 2 Cache  256 KB L2 cache available for performance optimization and configurable partitioning.
• Memory  Integrated DDR3 SDRAM controller for modern external memory interfacing.
• Security Acceleration  On-chip security co-processor (SEC 4.4) with cryptography and a hardware random number generator to support secure communications and cryptographic services.
• Ethernet Connectivity  Three 10/100/1000 Mbps Ethernet MACs for multi-port networking and switching applications.
• USB & Peripheral Interfaces  Two USB 2.0 ports with PHY support plus additional interfaces including DUART, I²C, SPI and SD/MMC as provided in the P1 platform.

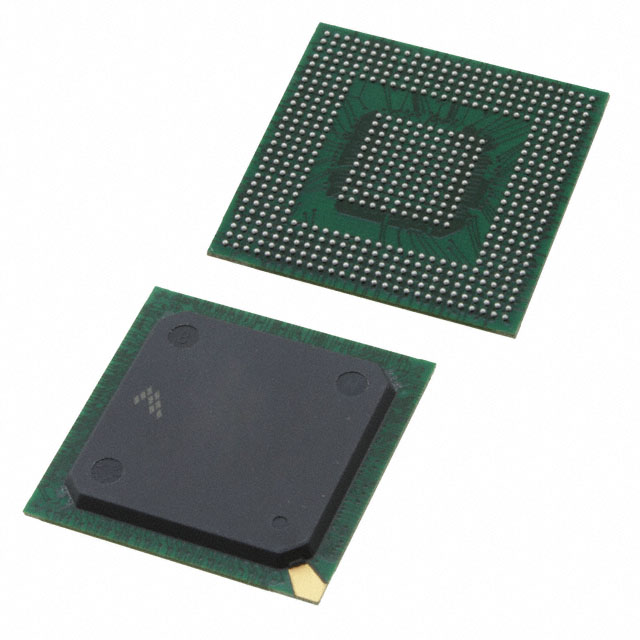

• Package & Mounting  561-TEPBGA I (23×23) supplier device package, surface-mount mounting; supplied in tray packaging.
• Operating Range & Qualification  Consumer-grade qualification with an operating temperature range of 0 °C to 125 °C.
• Process Technology  P1 family devices are built on 45 nm technology to enable lower power operation.

Typical Applications

• Multi-service Gateways: Use the integrated Ethernet ports and DDR3 controller to implement routing and gateway functions with hardware security support for encrypted links.
• Ethernet Switch Controllers: Multiple Gigabit Ethernet interfaces and DMA controllers support switch control and packet-handling tasks.
• Wireless LAN Access Points: Compact package, integrated interfaces and security acceleration make the device suitable for embedded WLAN control and secure management functions.
• General-purpose Embedded Control: Single-core performance with L1/L2 cache and peripheral integration for control-plane tasks in industrial or telecom equipment with tight thermal constraints.

Unique Advantages

• Balanced single-core performance: 667 MHz PowerPC e500v2 core provides deterministic processing capacity for control and networking tasks without unnecessary multi-core complexity.
• Integrated security engine: SEC 4.4 co-processor, cryptography support and hardware RNG reduce software overhead for secure communications and simplify system security design.
• Rich Ethernet connectivity: Three Gigabit Ethernet interfaces enable multi-port networking designs and consolidated board-level integration.
• Memory subsystem integration: On-chip DDR3 controller and substantial L1/L2 cache reduce external memory management complexity and improve system throughput.
• Compact surface-mount package: 561-TEPBGA (23×23) package supports designs with tight PCB area and thermal constraints.
• Platform scalability: Part of the QorIQ P1 family built on 45 nm technology, enabling design scalability within the P1 product set and software compatibility with the series.

Why Choose P1015NSN5FFB?

The P1015NSN5FFB combines a 667 MHz PowerPC e500v2 core with integrated DDR3 memory support, multi-port Gigabit Ethernet and hardware security acceleration to deliver a practical, integrated solution for embedded networking and communications applications. Its combination of cache architecture and peripheral integration simplifies board design while addressing common control-plane and data-plane requirements.

This device is suited to designers seeking a single-core, software-compatible member of the QorIQ P1 family for gateway, switch controller, access point or general-purpose embedded control applications where compact packaging and integrated security are required.

Request a quote or submit an inquiry to our sales team for availability, pricing and to discuss how P1015NSN5FFB fits your next embedded networking design.
