P1015NSN5BFB

The P1015NSN5BFB is a PowerPC e500v2-based microprocessor in the QorIQ P1 family, delivering a single 32-bit core running at 667 MHz. It integrates networking and security features with memory and peripheral controllers targeted at networking, telecom, defense and industrial applications.

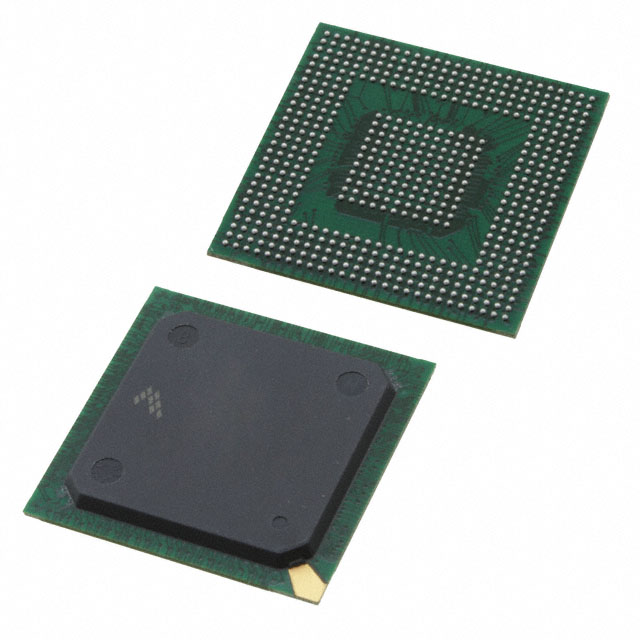

Built on 45 nm technology for low power, the device combines on-chip security acceleration, multiple high-speed interfaces and a DDR3 memory controller in a compact 561-TEPBGA (23×23) surface-mount package, making it suitable for designs that require integration, thermal efficiency and industrial temperature operation.

Key Features

• Core & Architecture  PowerPC e500v2 single 32-bit core operating at 667 MHz, providing deterministic processing for control and networking tasks.
• Cache & Memory  Includes a 256 KB L2 cache and an integrated DDR3 SDRAM controller to support system memory and buffering requirements.
• Security & Acceleration  On-chip security acceleration (SEC 4.4) with cryptography and a hardware random number generator for secure communications and data protection.
• Networking Interfaces  Three 10/100/1000 Mbps Ethernet ports for robust wired network connectivity.
• USB & Peripheral Interfaces  Two USB 2.0 ports with PHY, DUART plus additional peripheral support including I2C, SPI and SD/MMC as provided by the platform.
• High‑speed I/O & Interconnect  Platform-level peripherals such as PCI Express lanes, SerDes and DMA controllers enable high-throughput data movement and system expansion.
• Package & Temperature  561-TEPBGA I (23×23) surface-mount package; industrial operating temperature range 0 °C to 125 °C; supplied in tray format.
• Qualification  Industrial qualification supporting deployment in industrial and similar environments.

Typical Applications

• Multi-service gateways  Integrate routing, security and service processing using the single-core e500v2 and on-chip network interfaces.
• Ethernet switch controllers  Use the multiple Gigabit Ethernet ports and DMA engines for switch control and traffic management.
• Wireless LAN access points  Provide control-plane processing and peripheral support for high-performance wireless access designs.
• General-purpose control processors  Serve as a compact control processor in systems with tight thermal constraints and industrial temperature requirements.

Unique Advantages

• Highly integrated platform: Reduces external component count by combining CPU, DDR3 controller, multiple Ethernet ports, USB and peripheral interfaces on-chip.
• Hardware security: Integrated SEC 4.4, cryptography engines and a hardware RNG provide a foundation for secure communications and data protection without relying solely on software.
• Deterministic single-core performance: A 667 MHz e500v2 core delivers predictable processing for control and networking tasks where single-thread latency matters.
• Industrial-ready operation: Rated for 0 °C to 125 °C and supplied in a compact BGA package suitable for industrial applications with space and thermal constraints.
• Family scalability: Part of the QorIQ P1 family, offering pin and software compatibility across related devices to simplify design scaling and product variants.
• Low-power process technology: Built on 45 nm technology to help balance performance and power for embedded networking and control applications.

Why Choose P1015NSN5BFB?

The P1015NSN5BFB combines a PowerPC e500v2 core with integrated memory controllers, multi-gigabit Ethernet, USB and hardware security acceleration to deliver a compact, industrial-ready processing solution for networking and control applications. Its integration reduces board-level complexity while providing the interfaces and acceleration needed for secure embedded systems.

Ideal for designs that require efficient single-core performance, on-chip security and a rich peripheral set within an industrial temperature envelope, this device offers scalability within the QorIQ P1 family and supports long-term deployment needs through a robust platform and ecosystem.

Request a quote or submit a procurement inquiry to receive pricing and availability details for the P1015NSN5BFB.
