P1015NSN5DFB

The P1015NSN5DFB is an NXP QorIQ P1 family microprocessor based on a single PowerPC e500v2 core running at 667 MHz. It combines a 32-bit core with on-chip memory and peripheral integration targeted at networking, telecom, defense and industrial applications.

Designed on a 45 nm process for efficient power and integration, the device delivers a compact, industrially qualified processing solution with multiple high-speed interfaces and hardware security acceleration suitable for multi-service gateway, Ethernet switching and embedded control designs.

Key Features

• Core & Performance  Single PowerPC e500v2 32-bit core running at 667 MHz with 32 KB L1 instruction and 32 KB L1 data caches and a 256 KB L2 cache for improved on-chip performance and deterministic behavior.
• Memory  Integrated DDR3 SDRAM controller to support system memory requirements for networking and control workloads.
• Security & Acceleration  On-chip security acceleration (SEC 4.4) plus cryptography engines and a hardware random number generator to offload security operations and accelerate encrypted traffic handling.
• Networking Interfaces  Three 10/100/1000 Mbps Gigabit Ethernet ports and on-chip networking elements including TDM accelerators and enhanced local bus controller (eLBC) for robust connectivity options.
• High-speed I/O  Two USB 2.0 controllers with PHY, two PCI Express lanes, 4-lane SerDes, SD/MMC, SPI and DUART support to cover a broad set of peripheral and expansion needs.
• Data Movement  On-chip 4-channel DMA controllers and on-chip interconnect to optimize peripheral-to-memory data transfers and reduce CPU overhead.

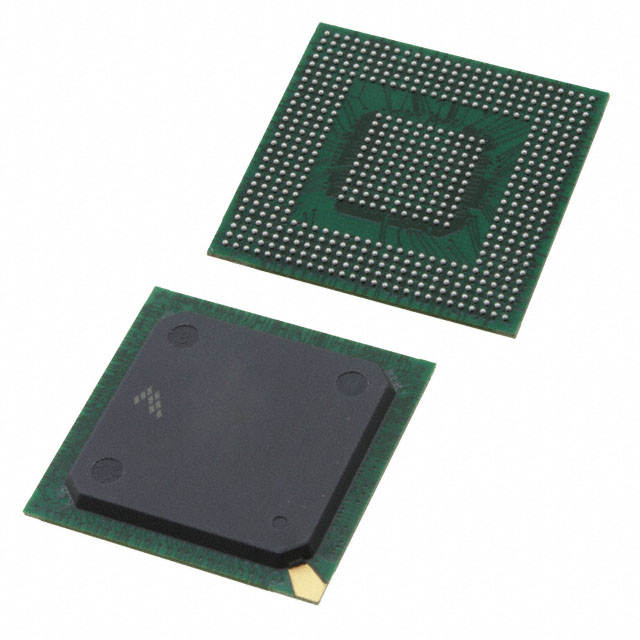

• Package & Thermal  561-TEPBGA I (23×23 mm) surface-mount package supplied in tray; industrial operating temperature range 0°C to 125°C.

Typical Applications

• Multi-service Gateways  Handles routing, security acceleration and packet processing tasks using integrated Ethernet, security engines and DMA.
• Ethernet Switch Controllers  Provides management and control processing with multiple Gigabit Ethernet ports and on-chip networking elements for switch control planes.
• Wireless LAN Access Points  Delivers control-plane processing and connectivity with USB, PCIe and DDR3 memory support for modern access point designs.
• Industrial and Defense Networking  Suited for embedded controllers that require industrial qualification, hardware security features and a wide operating temperature range.

Unique Advantages

• Integrated Security Acceleration: Hardware SEC 4.4, cryptography engines and RNG reduce CPU load for secure communications and accelerate encryption workflows.
• Rich On-chip Connectivity: Three Gigabit Ethernet ports, USB 2.0 with PHY, PCIe, SerDes and common peripheral interfaces minimize external components and lower BOM complexity.
• Efficient On-chip Memory Architecture: 32 KB L1 I/D caches and a 256 KB L2 cache improve latency and throughput for embedded networking and control tasks.
• Designed for Embedded Environments: Industrial qualification and a 0°C to 125°C operating range make the device suitable for demanding deployment scenarios.
• Platform Scalability: QorIQ P1 family heritage and software compatibility across related devices enable migration and common software architectures for product families.

Why Choose P1015NSN5DFB?

The P1015NSN5DFB positions a single-core, 667 MHz PowerPC e500v2 processor with extensive on-chip connectivity and security acceleration into a compact 561-ball TEPBGA package. Its combination of DDR3 memory support, multiple Gigabit Ethernet interfaces and hardware security blocks makes it a practical choice for embedded networking, gateway and industrial control designs that require integration and deterministic performance.

Because it is part of the QorIQ P1 family and built on proven platform elements, the device supports scalable design approaches and software compatibility across related processors, helping simplify development and extend product lifecycles.

Request a quote or submit an inquiry for pricing, lead time and availability for the P1015NSN5DFB to move your design forward.
