P1015NXE5DFB

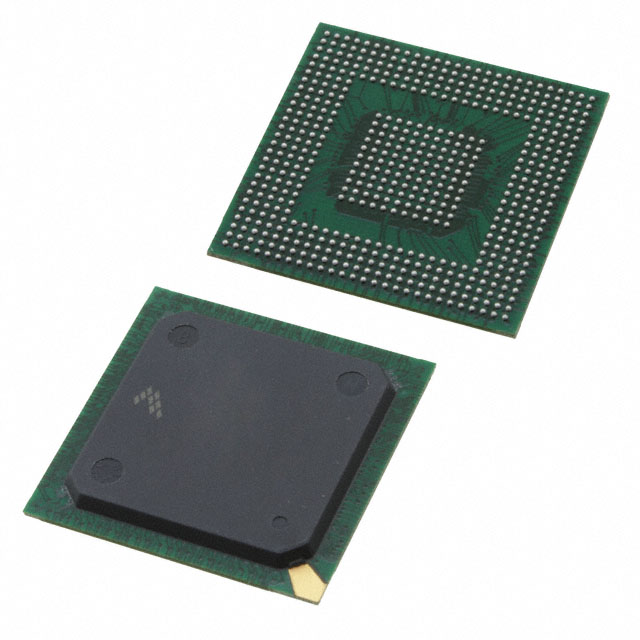

The P1015NXE5DFB is a PowerPC e500v2-based microprocessor in the QorIQ P1 family, delivering a single 32-bit core running at 667 MHz in a 561-TEPBGA (23×23) package. Designed for industrial-class deployments, it combines integrated networking peripherals, DDR3 memory support and hardware security features for embedded communications and control applications.

Typical target markets include networking, telecom and industrial systems that require efficient integration, moderate processing performance and hardened temperature operation.

Key Features

• Core and Performance — PowerPC e500v2 core, single 32-bit core at 667 MHz with 32 KB L1 instruction and 32 KB L1 data caches and a 256 KB L2 cache as described in the QorIQ P1 family.
• Memory — Integrated DDR3 SDRAM controller for system memory interfacing.
• Networking Interfaces — Three 10/100/1000 Mbps Ethernet MACs for multi-port gigabit networking.
• USB and Peripheral I/O — Two USB 2.0 interfaces with PHY, plus additional serial interfaces such as DUART; on-chip peripherals include I2C, SPI, SD/MMC and timers as part of the platform feature set.
• Security Acceleration — On-chip security features including cryptography acceleration, a random number generator and SEC 4.4 security co-processor capabilities.
• System Integration — On-chip DMA controllers, PCI Express lanes and SerDes capability are part of the P1 platform feature set to simplify system-level design.
• Package and Mounting — 561-TEPBGA I (23×23) surface-mount device supplied in tray format for production assembly.
• Industrial Temperature Range — Qualified for operation from −40 °C to 125 °C for deployment in harsh environments.

Typical Applications

• Multi-service Gateways — Integrated gigabit Ethernet and USB interfaces enable gateway designs that consolidate networking and peripheral connectivity.
• Ethernet Switch Controllers — Multiple gigabit Ethernet ports and DMA support facilitate switch-control and traffic management functions.
• Wireless LAN Access Points — Processing performance and SerDes/PCIe support allow use in access-point control and backhaul interfaces.
• Industrial Control Systems — Industrial-grade temperature rating and integrated security features suit robust control and monitoring applications.

Unique Advantages

• Integrated Networking Peripherals: Three gigabit Ethernet MACs and USB 2.0 PHYs reduce external component count for streamlined board designs.
• Hardware Security: Cryptography acceleration, a random number generator and SEC 4.4 support provide dedicated security processing without burdening the CPU.
• Memory and Throughput: DDR3 controller and onboard DMA/PCIe/SerDes elements support efficient data movement and high-throughput connectivity.
• Industrial Robustness: Rated for −40 °C to 125 °C operation and supplied in a production-ready surface-mount BGA package for demanding environments.
• Platform Scalability: Part of the QorIQ P1 family, enabling software and architectural commonality across multiple performance points within the series.

Why Choose P1015NXE5DFB?

The P1015NXE5DFB balances a focused single-core processing element with rich on-chip peripherals and hardware security, making it suitable for embedded networking and industrial control applications that need reliable, integrated functionality. Its DDR3 memory support, multiple gigabit Ethernet interfaces and industrial temperature rating target systems with tight thermal and integration constraints.

As a member of the QorIQ P1 family, this device offers design scalability and software compatibility across related platform options, helping reduce development effort while delivering long-term value for communications and industrial designs.

Request a quote or submit an inquiry to obtain pricing, lead time and availability for the P1015NXE5DFB for your next embedded design.
