R9A07G063U01GBG#AC0

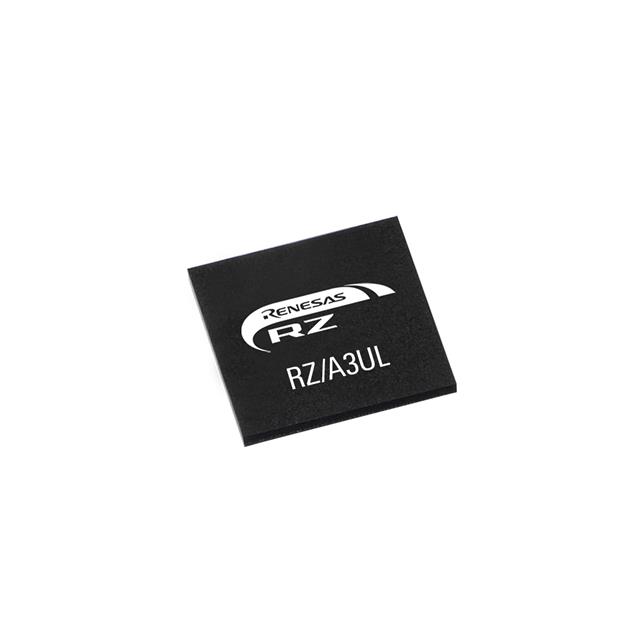

The R9A07G063U01GBG#AC0 is a Renesas RZ/A3UL microprocessor IC featuring a single ARM® Cortex®-A55 64-bit core running at 1 GHz. It is designed for embedded applications that require a compact, industrial-grade processing element with integrated memory and peripheral interfaces.

Built with integrated memory controllers and multiple connectivity options, this device addresses embedded designs needing networked communication, display or camera interfaces, and industrial temperature operation.

Key Features

• Processor Core — Single ARM® Cortex®-A55 64-bit core operating at 1 GHz, providing a general-purpose embedded processing engine.
• Memory Support — Integrated controllers for DDR3L and DDR4 memory to support a range of system memory configurations.
• Display and Camera Interfaces — On-chip LCD controller and MIPI/CSI2 support for display panels and camera modules.
• Wired Networking — Dual 10/100/1000 Mbps Ethernet interfaces for robust wired connectivity and high-throughput networked applications.
• USB and Fieldbus — Two USB 2.0 ports and CANbus support for peripheral connectivity and industrial field communications.
• Package and Mounting — 361-PBGA (13×13) package in a surface-mount form factor suitable for compact board layouts.
• Industrial Qualification & Temperature Range — Industrial qualification with an operating temperature range of −40 °C to 85 °C for demanding environments.
• RoHS Compliant — Conforms to RoHS environmental requirements.

Typical Applications

• Industrial Control — Embedded controllers and PLC adjuncts that require industrial temperature operation and CANbus or Ethernet connectivity.
• Human–Machine Interfaces (HMI) — Touch panels and display-driven interfaces using the on-chip LCD controller and MIPI support for graphics or camera input.
• Networked Embedded Systems — Gateways, edge devices, and controllers that need dual Gigabit Ethernet and USB connectivity for peripherals and uplink communication.
• Camera-equipped Embedded Devices — Systems that integrate image capture or vision sensors via MIPI/CSI2 for inspection, monitoring, or machine-vision adjunct functions.

Unique Advantages

• Integrated Connectivity — Dual Gigabit Ethernet, USB 2.0 ports, and CANbus reduce external interface components and simplify system integration.
• Flexible Memory Options — Support for DDR3L and DDR4 memory controllers enables design choices across cost and performance targets.
• Industrial-ready Operation — Qualified for industrial use with a −40 °C to 85 °C operating range for deployment in harsh environments.
• Compact Surface-mount Package — 361-PBGA (13×13) packaging allows for a small PCB footprint while preserving required signal density.
• Single 64-bit Core at 1 GHz — Provides a balanced processing capability for control, connectivity, and interface tasks in embedded designs.

Why Choose R9A07G063U01GBG#AC0?

The R9A07G063U01GBG#AC0 positions itself as a compact, industrial-grade microprocessor solution that combines a 1 GHz ARM® Cortex®-A55 core with broad memory and peripheral support. Its integrated Ethernet, USB, CANbus, and display/camera interfaces make it suitable for embedded systems that require tight integration of networking and I/O without excessive external components.

Engineers and procurement teams designing industrial controls, HMIs, networked gateways, or camera-enabled devices will find this Renesas MPU offers a practical balance of performance, connectivity, and temperature-rated reliability—backed by the Renesas product family for consistent supply and technical continuity.

Request a quote or submit a parts inquiry to receive pricing and availability for the R9A07G063U01GBG#AC0. Our team can provide configured quotes and lead-time information to support your design schedule.
