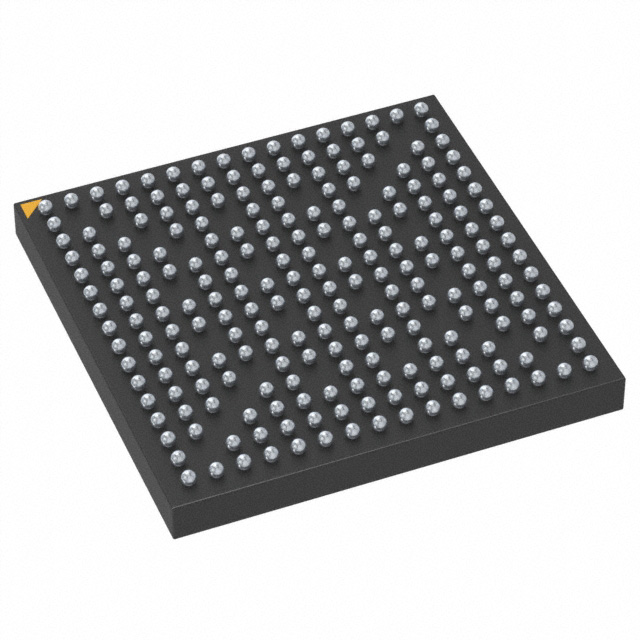

SAM9X60-V/DWB

The SAM9X60-V/DWB is a single‑core ARM926EJ-S microprocessor IC running at 600 MHz in a 228‑TFBGA (11×11) package. Built for embedded and industrial applications, it combines a 32‑bit core with extensive memory controller support, multiple high‑speed interfaces and integrated security features.

Typical use cases include networked embedded systems and human‑machine interfaces where connectivity, display control and robust security are required within an industrial operating temperature range.

Key Features

• Core & Performance — ARM926EJ‑S single 32‑bit core operating at 600 MHz for deterministic embedded processing.
• Memory Support — Integrated controllers for LPDDR, LPSDR, DDR2, SDR and SRAM, providing flexibility across memory types.
• Interfaces & Connectivity — Dual 10/100 Mbps Ethernet ports and three USB 2.0 interfaces to support networked and peripheral connectivity.
• Display & HMI — Display interface controllers for keyboard, LCD and touchscreen combined with graphics acceleration for responsive user interfaces.
• Security & Tamper Protection — Built‑in boot security, cryptography, memory scrambling, secure JTAG, secure key storage, secure RTC and tamper pins for enhanced system protection.
• Power & I/O — 3.3 V I/O voltage for standard embedded logic-level compatibility.
• Package & Mounting — 228‑TFBGA (11×11) surface‑mount package suitable for compact board designs.
• Industrial Grade Operation — Rated for operation from −40 °C to 105 °C for demanding environmental conditions.

Typical Applications

• Industrial Control: Use as the main processor in industrial controllers where Ethernet connectivity and industrial temperature range are required.
• Human‑Machine Interfaces (HMIs): Drive LCD and touchscreen displays with graphics acceleration for responsive operator panels and input handling.
• Networked Embedded Devices: Implement networked appliances or gateways leveraging dual 10/100 Mbps Ethernet and multiple USB 2.0 ports.
• Memory‑Flexible Designs: Support a variety of DRAM and SRAM types to match cost, performance and density requirements across product families.

Unique Advantages

• Single‑Core Performance: A 600 MHz ARM926EJ‑S core delivers predictable 32‑bit processing suitable for real‑time embedded tasks.
• Flexible Memory Options: Multiple memory controller support lets designers choose LPDDR, DDR2, SDR or SRAM based on system needs.
• Integrated Connectivity: Dual Ethernet and three USB 2.0 interfaces reduce external components for networked and peripheral functionality.
• Comprehensive Security Feature Set: On‑chip boot security, cryptography, secure JTAG and secure key storage help protect firmware and sensitive data.
• Industrial Reliability: Industrial grade temperature range and surface‑mount 228‑TFBGA packaging support deployment in harsh environments.
• Display‑Ready: Built‑in display interface controllers and graphics acceleration simplify HMI implementation.

Why Choose SAM9X60-V/DWB?

The SAM9X60-V/DWB positions itself as a robust, integrated microprocessor for embedded and industrial applications that need a balance of processing performance, connectivity and security. Its ARM926EJ‑S core at 600 MHz combined with flexible memory support and multiple Ethernet/USB interfaces makes it suitable for designs requiring networked I/O and responsive user interfaces.

Backed by Microchip Technology, this industrial‑grade device offers a compact 228‑TFBGA package and an extended operating temperature range, delivering long‑term value for applications prioritizing integration, security and environmental robustness.

Request a quote or submit an inquiry to receive pricing and availability for the SAM9X60-V/DWB for your next embedded design.
