SAM9X60D1GT-I/4FB

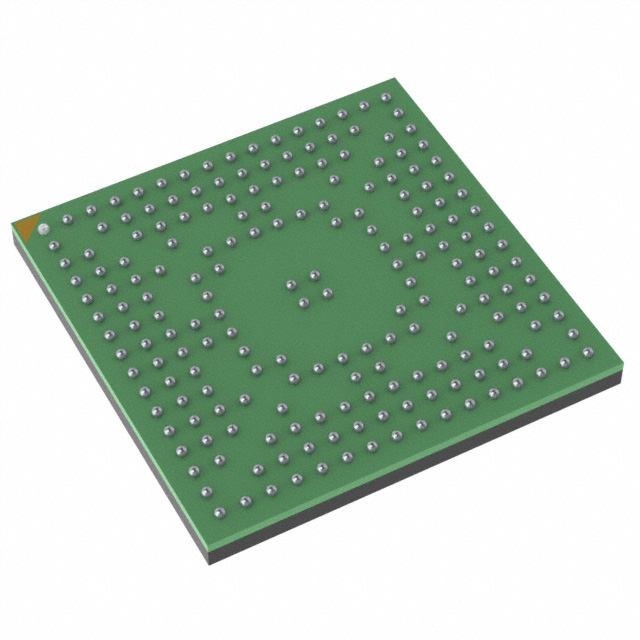

The SAM9X60D1GT-I/4FB is an ARM926EJ-S based microprocessor IC featuring a single 32-bit core running at 600 MHz in a 233-TFBGA (14×14) surface-mount package. Designed for embedded and industrial applications, it combines processing performance with integrated connectivity and hardware security.

Key use cases include embedded control, human-machine interfaces and networked devices where industrial temperature range operation and secure boot/cryptography are required.

Key Features

• Core & Performance ARM926EJ-S single 32-bit core running at 600 MHz for deterministic embedded processing.
• Memory Controllers Supports LPDDR, LPSDR, DDR2, SDR and SRAM memory interfaces to match a range of external memory options.
• Connectivity Two 10/100 Mbps Ethernet controllers and three USB 2.0 ports provide flexible wired networking and peripheral connectivity.
• Display & Human Interface Integrated display interface controllers for keyboard, LCD and touchscreen enable HMI implementations.
• Security On-chip security features include boot security, cryptography, memory scrambling, secure JTAG, secure key storage, secure RTC and tamper pins for protected systems.
• Power & I/O 3.3 V I/O voltage for common embedded I/O compatibility.
• Graphics Acceleration Includes graphics acceleration to support graphical displays and UI rendering.
• Package & Mounting 233-TFBGA (14×14) surface-mount package optimized for compact board designs.
• Industrial Temperature Range Rated for operation from −40 °C to 85 °C for deployment in industrial environments.
• RoHS Compliance RoHS compliant to support regulatory and manufacturing requirements.

Typical Applications

• Industrial Control and Automation Use the SAM9X60D1GT-I/4FB for control logic and communication in industrial systems that require an industrial temperature range and secure boot.
• Human‑Machine Interfaces (HMI) Integrated LCD and touchscreen controllers plus graphics acceleration enable responsive operator interfaces and display control.
• Networked Embedded Devices Dual 10/100 Mbps Ethernet and multiple USB 2.0 ports make it suitable for networked appliances and connectivity gateways.
• Secure Embedded Systems Built-in cryptography, secure key storage and tamper pins support designs that require hardware-backed security and authenticated boot.

Unique Advantages

• High-frequency single-core processing: 600 MHz ARM926EJ-S core delivers consistent embedded compute performance for control and HMI tasks.
• Comprehensive memory support: Multiple memory controller options (LPDDR, LPSDR, DDR2, SDR, SRAM) provide design flexibility across performance and cost targets.
• Integrated wired connectivity: Two 10/100 Mbps Ethernet controllers and three USB 2.0 ports reduce external component needs for networked products.
• Hardware security suite: Boot security, cryptography, secure JTAG and secure key storage enable robust system protection and trusted boot chains.
• Industrial-ready operation: −40 °C to 85 °C rating and a compact 233-TFBGA package support rugged, space-constrained board designs.
• RoHS compliant manufacturing: Meets RoHS requirements for modern electronics production and supply chains.

Why Choose SAM9X60D1GT-I/4FB?

The SAM9X60D1GT-I/4FB positions itself as a performance-oriented, industrial-grade microprocessor for embedded designs that require secure operation, integrated connectivity and display capabilities. Its 600 MHz ARM926EJ-S core combined with extensive memory interface options and hardware security features makes it suitable for control systems, HMIs and networked embedded appliances.

Manufactured by Microchip Technology and offered in a compact 233‑TFBGA package with a −40 °C to 85 °C operating range and RoHS compliance, this device supports long-term deployments where reliability, secure operation and flexible system integration are priorities.

Request a quote or contact sales to discuss pricing, availability and how SAM9X60D1GT-I/4FB can be integrated into your next embedded or industrial design.
