SAM9X60D6K-I/4GB

The SAM9X60D6K-I/4GB is an ARM926EJ-S based microprocessor IC delivering a single 32‑bit core at 600 MHz in a 196‑TFBGA (11×11) package. Targeted for embedded and industrial applications, it combines processing performance with a range of on‑chip controllers and security features for robust system integration.

With industrial temperature grading and a broad set of interfaces—including Ethernet, USB, CAN, and display controllers—this device supports designs requiring connectivity, human‑machine interfaces, and secure boot and key storage.

Key Features

• Processor Core ARM926EJ‑S single core, 32‑bit architecture running at 600 MHz for deterministic embedded processing.
• Memory Controllers Integrated support for SDR, LPDDR, LPSDR and SRAM memory types to accommodate varied memory topologies.
• Connectivity Dual 10/100 Mbps Ethernet interfaces and CAN support provide wired networking and fieldbus connectivity options.
• USB Multiple USB 2.0 interfaces (5) for peripheral connectivity and host/device support in embedded systems.
• Display and Input Controllers for keyboard, LCD and touchscreen interfaces combined with graphics acceleration to enable responsive HMIs.
• Security Features On‑chip boot security, cryptography, memory scrambling, secure JTAG, secure key storage, secure RTC and tamper pins to help protect system integrity.

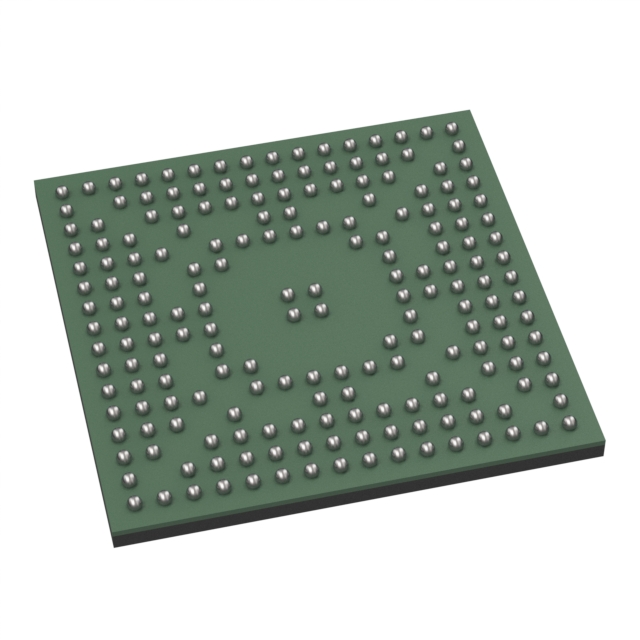

• Package and Mounting 196‑TFBGA (11×11) surface‑mount package suitable for compact embedded board designs.
• Industrial Temperature Range Rated for operation from −40°C to 85°C for industrial environments.
• Compliance RoHS compliant.

Typical Applications

• Industrial Control Single‑core performance, industrial temperature rating and fieldbus/CAN connectivity support control and monitoring nodes.
• Human‑Machine Interfaces (HMIs) LCD/touchscreen controllers plus graphics acceleration make the device suitable for embedded displays and operator panels.
• Edge Networking Devices Dual 10/100 Mbps Ethernet interfaces and integrated security features support networked edge equipment requiring secure connectivity.

Unique Advantages

• Single‑chip integration: Multiple memory controllers, USB, Ethernet and display interfaces reduce external component count and simplify board design.
• Built‑in security primitives: Boot security, cryptography, secure key storage and secure JTAG enhance system protection without extensive external crypto hardware.
• Industrial robustness: −40°C to 85°C operating range and industrial grade classification support deployment in demanding environments.
• Flexible connectivity: Combination of Ethernet, USB and CAN enables a wide range of wired communication topologies for embedded systems.
• Compact packaging: 196‑TFBGA (11×11) surface‑mount footprint facilitates dense, space‑constrained designs.

Why Choose SAM9X60D6K-I/4GB?

The SAM9X60D6K-I/4GB positions itself as a versatile microprocessor for embedded and industrial applications that require a balance of processing performance, integrated peripheral support, and hardware security. Its ARM926EJ‑S core at 600 MHz, broad memory controller support and extensive interface set make it suitable for designs requiring HMI functionality, network connectivity and secure system boot.

This device is appropriate for engineering teams focused on compact, industrially rated solutions that benefit from reduced external BOM and integrated security features, offering a dependable platform for long‑term embedded product development and deployment.

Request a quote or submit a procurement inquiry to access pricing, availability and technical support for SAM9X60D6K-I/4GB.
