SAM9X60T-V/DWB

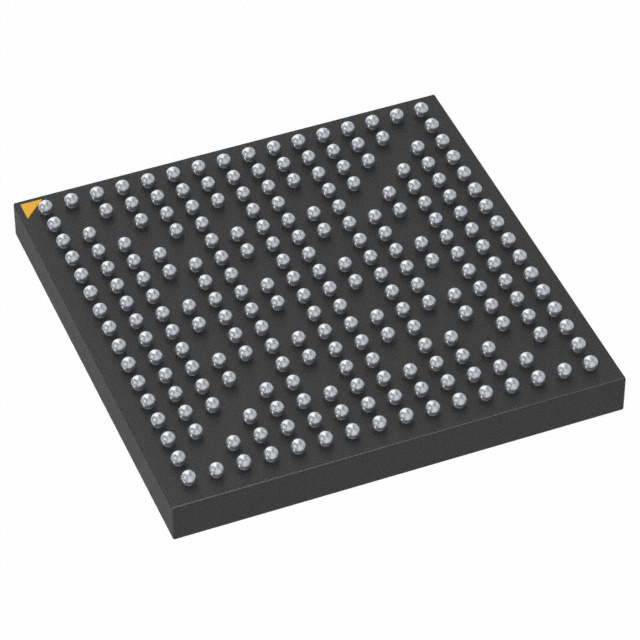

The SAM9X60T-V/DWB is a single-core ARM926EJ-S microprocessor IC running at 600 MHz, packaged in a 228-TFBGA (11×11) surface-mount package. Designed for embedded systems, it targets industrial applications that require a balance of processing performance, onboard connectivity and hardware security.

With integrated interfaces including multiple USB 2.0 ports and dual 10/100 Mbps Ethernet, plus a broad set of memory controller options and display interface support, the device is suited for compact, secure embedded designs where reliability across an extended temperature range is required.

Key Features

• Core  ARM926EJ-S single-core, 32-bit processor running at 600 MHz for deterministic embedded processing.
• Memory Support  On-chip controllers for LPDDR, LPSDR, DDR2, SDR and SRAM, enabling flexible memory subsystem choices for performance or cost-optimized designs.
• Connectivity  Two 10/100 Mbps Ethernet interfaces and three USB 2.0 ports provide robust wired connectivity options for networking and peripheral integration.
• Display and HMI  Support for keyboard, LCD and touchscreen display interfaces plus graphics acceleration to simplify human‑machine interface implementations.
• Security  Extensive hardware security features including boot security, cryptography, memory scrambling, secure JTAG, secure key storage, secure RTC and tamper pins for protected device operation.
• Power and I/O  I/O voltage defined at 3.3 V to match common embedded peripheral standards.
• Package and Mounting  228-TFBGA (11×11) supplier device package with surface-mount mounting type for dense board integration.
• Industrial Grade and Temperature Range  Industrial grade device rated for operation from –40 °C to 105 °C.

Typical Applications

• Industrial Control & Automation  Leverage the 600 MHz ARM926EJ-S core, multiple Ethernet ports and industrial temperature rating for control nodes and networked automation controllers.
• Human‑Machine Interfaces (HMI)  Use built-in display interface controllers and graphics acceleration to drive LCD touchscreens and keyboard inputs for operator panels.
• Edge Networking and Gateways  Dual 10/100 Mbps Ethernet and multiple USB 2.0 ports enable compact network gateways and protocol converters in embedded networks.
• Secure Embedded Devices  Hardware boot security, cryptography and secure key storage make the device suitable for designs that require on-device data protection and tamper detection.

Unique Advantages

• Balanced Processing Performance: 600 MHz ARM926EJ-S core provides sufficient compute for many embedded tasks while maintaining a compact system footprint.
• Comprehensive Memory Flexibility: Support for LPDDR, LPSDR, DDR2, SDR and SRAM controllers lets designers choose memory types that match performance and cost targets.
• Integrated Connectivity: Multiple Ethernet and USB interfaces reduce the need for external controllers and simplify board-level design.
• Hardware Security Suite: Built-in features such as secure JTAG, secure key storage and memory scrambling address device integrity and data protection requirements.
• Industrial Reliability: Industrial grade construction and an operating range of –40 °C to 105 °C support reliable operation in demanding environments.
• Compact Surface‑Mount Package: 228-TFBGA (11×11) package enables high-density board designs while providing the I/O needed for embedded systems.

Why Choose SAM9X60T-V/DWB?

The SAM9X60T-V/DWB combines a 600 MHz ARM926EJ-S core with rich peripheral integration and an extensive hardware security feature set in an industrial-grade package. It is positioned for embedded designs that require a secure, connected processor solution with flexible memory interfaces and display/HMI support.

Manufactured by Microchip Technology, this device suits engineers and procurement teams building industrial embedded systems, networked gateways, HMIs and secure devices where long-term reliability, compact packaging and proven connectivity options are priorities.
