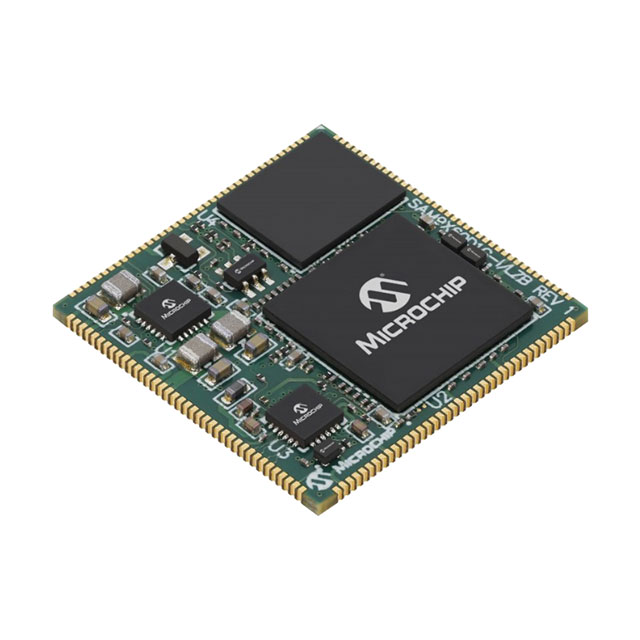

SAM9X60D1G-I/LZB

The SAM9X60D1G-I/LZB is an ARM926EJ-S microprocessor IC featuring a single 32-bit core running at 600 MHz, designed for embedded and industrial applications. It combines high-speed processing with extensive peripheral integration and hardware security features to support secure, networked, and display-oriented embedded systems.

With multiple memory controller options, industrial-grade temperature support, and a broad set of connectivity interfaces, this device targets designs that require networking, human-machine interfaces, and secure operation across a wide temperature range.

Key Features

• Core  ARM926EJ-S single 32-bit core running at 600 MHz, providing deterministic processing for embedded workloads.
• Memory Controllers  Integrated controllers for DDR2, LPDDR, LPSDR and SRAM to support a variety of memory configurations and performance targets.
• Display & HMI  Display interface controllers for keyboard, LCD and touchscreen to enable human-machine interface and local display functionality.
• Connectivity  Dual 10/100 Mbps Ethernet ports and CAN for industrial networking; multiple USB 2.0 interfaces (USB 2.0 (5)) for host/device connectivity.
• Security  Comprehensive security features including Boot Security, Cryptography, Memory Scrambling, Secure JTAG, Secure Key Storage, Secure RTC, Tamper Pins, and TDES / AES / SHA for protected boot and data handling.
• Graphics Acceleration  Hardware graphics acceleration to offload display rendering and improve UI responsiveness.
• Package & Mounting  Surface mount device suitable for standard PCB assembly processes.
• Industrial Grade & Temperature Range  Industrial grade device rated for operation from -40 °C to 85 °C for deployment in harsh environments.
• Environmental Compliance  RoHS compliant.

Typical Applications

• Industrial Embedded Systems  Suitable for industrial controllers and equipment that require reliable processing and networking in wide temperature environments.
• Human-Machine Interfaces (HMIs)  Drives LCD and touchscreen interfaces with hardware graphics acceleration for responsive UIs and local control panels.
• Networked Gateways and Communication Nodes  Dual Ethernet ports, CAN and multiple USB 2.0 interfaces support industrial networking, data aggregation, and peripheral connectivity.
• Secure Embedded Applications  Built-in cryptography, secure key storage and tamper protection support secure boot and protected data handling in embedded devices.

Unique Advantages

• Balanced Processing Performance: 600 MHz ARM926EJ-S core provides a balance of speed and predictability for embedded control and HMI tasks.
• Flexible Memory Support: Multiple memory controller options (DDR2, LPDDR, LPSDR, SRAM) allow designers to choose memory types that match cost and performance targets.
• Integrated Networking and I/O: Dual 10/100 Mbps Ethernet ports, CAN and multiple USB 2.0 interfaces reduce external components and simplify system architecture.
• Comprehensive Security Suite: Hardware cryptography, secure boot and tamper features help protect device integrity and sensitive data.
• Industrial Reliability: Operating range of -40 °C to 85 °C and industrial grade classification make it suitable for demanding environments.
• HMI-Ready: Dedicated display and touchscreen controllers plus graphics acceleration streamline development of local user interfaces.

Why Choose SAM9X60D1G-I/LZB?

The SAM9X60D1G-I/LZB positions itself as a well-integrated microprocessor solution for embedded and industrial designs that require processing performance, robust connectivity, display capabilities and hardware security. Its combination of a 600 MHz ARM926EJ-S core, versatile memory controllers, dual Ethernet, CAN and multiple USB ports supports compact, feature-rich system architectures.

Backed by Microchip Technology and compliant with RoHS, this industrial-grade MPU is suited for designers building secure networked systems, HMIs and embedded controllers that must operate reliably across a wide temperature range.

Request a quote or submit an inquiry to receive pricing and availability details for the SAM9X60D1G-I/LZB.
