Suntsu RF coaxial connectors are precision crafted for high-performance wireless system applications. These 50 Ohm connectors are perfect for WiFi, GPS, LTE, Bluetooth, and other wireless communications standards. Choose from several popular standard PCB or Panel Mount RF connector types including SMA, RP-SMA, Micro Coaxial (MCX), Micro-Miniature Coaxial (MMCX), and N-Type. Other form factors and options are available for customized requirements. Contact us for a full consultation.

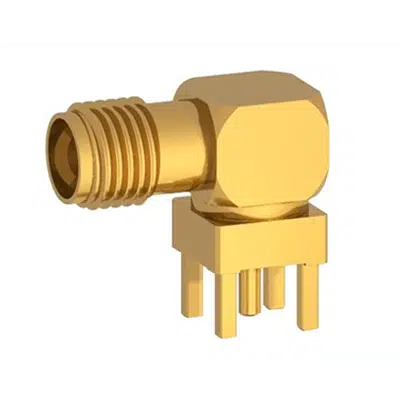

RF Connectors
| Part No. | Image | Type | Gender | Impedance | Frequency Range | Orientation | Mount Type | Datasheet |
|---|---|---|---|---|---|---|---|---|
| SCNRF-6AAP-SAFS |  | SMA | Female (Jack) | 50 Ohms | 0 - 6 GHz | Straight | PCB Thru-hole |  |

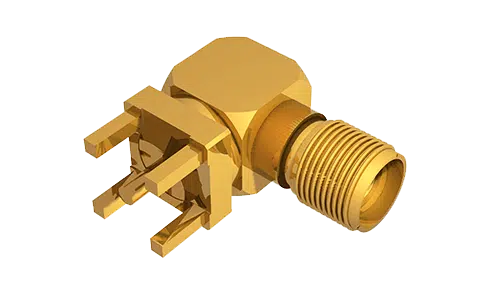

| SCNRF-6AAP-SAFR |  | SMA | Female (Jack) | 50 Ohms | 0 - 6 GHz | Right Angle | PCB Thru-hole | |
| SCNRF-6AAN-SAFS |  | SMA | Female (Jack) | 50 Ohms | 0 - 6 GHz | Straight | Panel | |
| SCNRF-6AAS-RAFE |  | RP-SMA | Female (Jack) | 50 Ohms | 0 - 6 GHz | Edge Launch | PCB SMT | |
| SCNRF-6AAP-RAFR |  | RP-SMA | Female (Jack) | 50 Ohms | 0 - 6 GHz | Right Angle | PCB Thru-hole | |
| SCNRF-6AAP-MXFR |  | MCX | Female (Jack) | 50 Ohms | 0 - 6 GHz | Right Angle | PCB Thru-hole | |
| SCNRF-6AAP-MXFS |  | MCX | Female (Jack) | 50 Ohms | 0 - 6 GHz | Straight | PCB Thru-hole | |
| SCNRF-6AAS-MMFE |  | MMCX | Female (Jack) | 50 Ohms | 0 - 6 GHz | Edge Launch | PCB SMT | |
| SCNRF-6AAP-MMFS |  | MMCX | Female (Jack) | 50 Ohms | 0 - 6 GHz | Straight | PCB Thru-hole | |
| SCNRF-6AAP-MMFR |  | MMCX | Female (Jack) | 50 Ohms | 0 - 6 GHz | Right Angle | PCB Thru-hole | |
| SCNRF-6AAN-NYFS |  | N-Type | Female (Jack) | 50 Ohms | 0 - 6 GHz | Straight | Panel | |

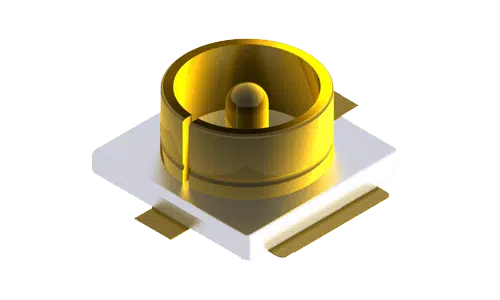

| SCNRF-6AAN-P1FS |  | IPEX | Female (Jack) | 50 Ohms | 0 - 6 GHz | Straight | Panel | |
