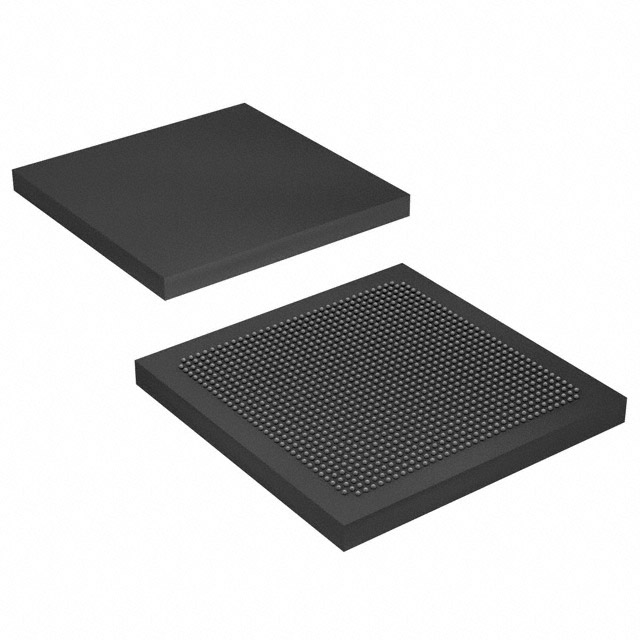

10AX032H2F34I2LG

The 10AX032H2F34I2LG is an Intel Arria 10 GX series FPGA in a 1152-ball FCBGA package designed for mid-range, performance- and power-sensitive applications. As a member of the Arria 10 family, this device targets markets such as wireless infrastructure, wireline communications, broadcast, computing and storage, medical imaging, and defense systems.

Built to combine high logic density with substantial embedded memory and flexible I/O, the device supports designs that require a balance of performance, integration, and industrial temperature operation.

Key Features

• Core Logic 320,000 logic elements for implementing complex custom logic, packet processing, and hardware acceleration tasks.
• Embedded Memory 21,040,128 total RAM bits to support large buffering, on-chip caches, and data-path storage.
• I/O and Interfaces 384 I/O pins providing broad external connectivity for memory interfaces, transceivers, and peripheral subsystems.
• Power Supply Core voltage range of 870 mV to 980 mV to match system power rails and enable power-managed designs.
• Package and Mounting 1152-BBGA (FCBGA) package, supplier package 1152-FBGA, FC (35×35), surface-mount for compact, high-density board layouts.
• Operating Range Industrial-grade operation from −40 °C to 100 °C for deployment in temperature-demanding environments.
• Arria 10 Family Capabilities Family-level features include advanced clock networks and PLLs, variable-precision DSP blocks, hard IP for PCIe Gen1/2/3, and low-power serial transceivers as described in the Arria 10 device documentation.

Typical Applications

• Wireless Infrastructure Channel processing, remote radio head electronics, and mobile backhaul modules that require programmable logic and high I/O density.
• Wireline Communications Line cards, muxponders and transponders for 40G/100G systems that need embedded memory and protocol hard IP.
• Data Center & Storage Cloud servers, flash cache acceleration, and compute offload tasks leveraging the device’s logic density and on-chip RAM.
• Broadcast & Media Studio switches, video transport, and professional audio/video processing where flexible I/O and timing control are essential.
• Medical & Defense Systems Diagnostic imaging and mission-critical signal processing that benefit from industrial temperature range and robust FPGA resources.

Unique Advantages

• High Logic Density: 320,000 logic elements enable large-scale custom hardware implementations without external ASIC development.
• Significant On‑Chip Memory: Over 21 million bits of embedded RAM to minimize external memory dependence and support deep buffering.
• Broad I/O Count: 384 I/Os accommodate complex system interfaces and multi-channel connectivity.
• Industrial Temperature Rating: −40 °C to 100 °C operation supports deployment in harsh and temperature-sensitive environments.
• Compact, High‑Density Package: 1152-ball FCBGA (35×35) package offers a compact footprint for space-constrained board designs.
• Family-Level Integration: Arria 10 series features such as DSP blocks, clocking resources, PCIe hard IP, and low-power transceivers provide a versatile foundation for diverse communication and compute applications.

Why Choose 10AX032H2F34I2LG?

The 10AX032H2F34I2LG positions itself as a robust mid-range FPGA option for designs that require substantial logic capacity, large embedded memory, and flexible I/O in an industrial temperature-rated package. It is appropriate for engineering teams building network equipment, compute accelerators, broadcast systems, and medical or defense electronics that demand programmable hardware with proven Arria 10 family capabilities.

With its combination of logic density, memory resources, industrial operating range, and compact FCBGA packaging, this device offers a scalable hardware platform supported by Intel’s Arria 10 documentation and ecosystem for system development and long-term deployment.

Request a quote or submit an inquiry to begin procurement or to get detailed availability and pricing information for the 10AX032H2F34I2LG device.
