5AGXMA5D6F27C6N

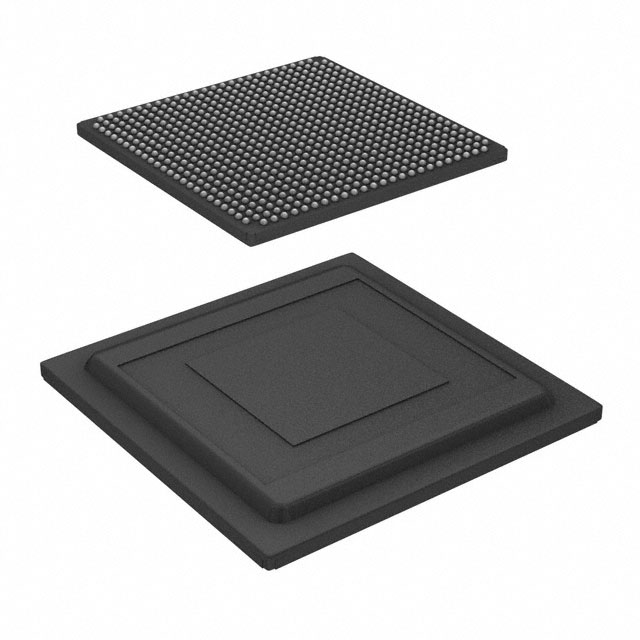

The 5AGXMA5D6F27C6N is an Intel Arria V GX Field Programmable Gate Array (FPGA) supplied in a 672‑BBGA (672‑FBGA, 27×27) surface‑mount package. The device delivers 190,000 logic elements and approximately 12.7 Mbits of embedded memory, along with 336 user I/O pins for flexible system interfacing.

Offered as a commercial‑grade device, this Arria V GX part is specified with a core voltage supply range of 1.07 V to 1.13 V and an operating temperature range of 0 °C to 85 °C. The Arria V device datasheet provides detailed electrical, switching, configuration, and I/O timing information to support system design and integration.

Key Features

• Logic Capacity — 190,000 logic elements to implement large, complex programmable logic designs and custom hardware functions.
• Embedded Memory — Approximately 12.7 Mbits of on‑chip RAM for buffering, frame storage, and local data processing.
• I/O Resources — 336 user I/O pins to support flexible interfacing with peripherals, mezzanine cards, and system buses.
• Package & Mounting — 672‑BBGA (supplier package 672‑FBGA, 27×27) in a surface‑mount form factor for dense board integration.
• Power — Specified core supply voltage range of 1.07 V to 1.13 V for predictable power budgeting.
• Commercial Temperature Grade — Rated for 0 °C to 85 °C operation for standard commercial applications.
• Regulatory — RoHS compliant to support regulatory and environmental requirements.
• Documented Specifications — Arria V device datasheet includes comprehensive sections on electrical characteristics, switching characteristics, configuration timing, and I/O timing to aid design validation.

Typical Applications

• High‑bandwidth communications — FPGA logic and documented transceiver/switching characteristics support custom protocol handling and packet processing.
• Hardware acceleration and DSP — Large logic capacity and on‑chip RAM enable implementation of custom datapaths and real‑time signal processing functions.
• Custom I/O and protocol bridging — 336 I/O pins provide flexibility to interface with diverse peripherals and bridge between system buses.
• Prototyping and system integration — The Arria V datasheet’s configuration and timing detail supports board bring‑up and integration of programmable logic into larger systems.

Unique Advantages

• High integration density: 190,000 logic elements combined with substantial embedded RAM reduce the need for multiple discrete components.
• Flexible I/O count: 336 user I/O pins allow adaptable board designs and multiple peripheral connections without external GPIO expanders.
• Compact surface‑mount package: 672‑FBGA (27×27) enables dense PCB layouts while keeping a single‑device footprint for complex logic.
• Predictable power envelope: Narrow core voltage range (1.07 V–1.13 V) simplifies power supply design and budgeting.
• Commercial temperature rating: Specified 0 °C–85 °C operation for applications targeting standard commercial deployments.
• Comprehensive documentation: Arria V device datasheet provides detailed electrical, switching, configuration, and I/O timing information for engineering validation.

Why Choose 5AGXMA5D6F27C6N?

The 5AGXMA5D6F27C6N Arria V GX FPGA combines substantial programmable logic capacity with meaningful embedded memory and a high I/O count in a compact 672‑FBGA package. Its commercial temperature rating and RoHS compliance make it suitable for a wide range of commercial electronic systems where on‑chip resources and flexible interfacing are required.

Engineers and procurement teams will find this device appropriate for designs that demand scalable logic density, on‑chip data storage, and documented electrical and timing characteristics to support reliable integration and validation over the product life cycle.

Request a quote or submit an inquiry to obtain pricing, availability, and delivery information for the 5AGXMA5D6F27C6N. Include required quantities and any technical questions to help evaluate fit for your design.
