5CGTFD5F5M11I7N

The 5CGTFD5F5M11I7N is an Intel Cyclone V GT field-programmable gate array (FPGA) in a 301-TFBGA package (supplier package: 301-MBGA, 11×11). This industrial-grade, surface-mount FPGA integrates a high logic density and embedded memory to address bandwidth- and integration-driven designs.

As a Cyclone V GT device, it leverages family-level features such as low-power 28 nm process technology, integrated transceivers and hard memory controller options described for the Cyclone V family, making it suitable for industrial, wireless/wireline, military, and related applications that require robust, low-voltage programmable logic.

Key Features

• Logic Capacity — 77,000 logic elements to implement medium-to-high complexity FPGA designs.
• Embedded Memory — Approximately 5 Mbits of on-chip RAM (total RAM bits: 5,001,216) to support local buffering, FIFOs, and logic-state storage.
• I/O Resources — 129 I/O pins for flexible peripheral interfacing and system connectivity.
• Power and Core Voltage — Operates with a core supply range of 1.07 V to 1.13 V consistent with Cyclone V low-voltage core operation.

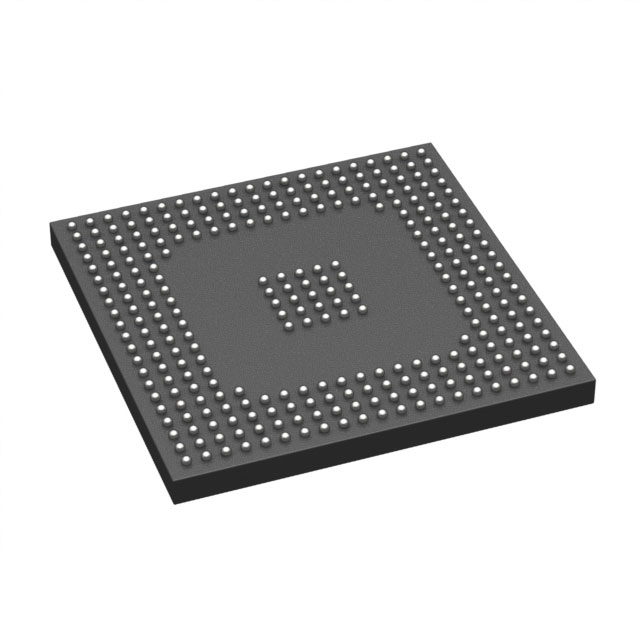

• Package and Mounting — 301-TFBGA package (301-MBGA, 11×11) designed for surface-mount assembly and compact board integration.
• Industrial Temperature Range — Rated for −40 °C to 100 °C operation for deployment in demanding environments.
• RoHS Compliant — Conforms to RoHS environmental requirements.
• Cyclone V Family Capabilities — Family-level features include TSMC 28-nm low-power process, 1.1 V core design, enhanced adaptive logic modules, M10K memory blocks with ECC, variable-precision DSP blocks, and available integrated transceivers and hard memory controllers.

Typical Applications

• Industrial Control — Programmable logic for motor control, factory automation, and real-time I/O handling using industrial-grade temperature tolerance and substantial I/O resources.
• Wireless and Wireline Infrastructure — Network processing and protocol handling where on-chip memory and Cyclone V GT transceiver capabilities are applicable.
• Embedded SoC and HPS-Assisted Designs — FPGA fabric for custom acceleration, buffering, and peripheral bridging in systems leveraging Cyclone V family hard IP and processor integration options.
• Military and Ruggedized Systems — Logic and memory resources in an industrial-rated package suitable for deployment in demanding environments.

Unique Advantages

• High Logic Density: 77,000 logic elements enable implementation of substantial custom logic functions and complex state machines.
• On-Chip Memory: Approximately 5 Mbits of embedded RAM reduces reliance on external memory for many buffering and lookup-table needs.
• Industrial Reliability: −40 °C to 100 °C operating range and surface-mount BGA packaging support deployment in harsh and tightly constrained systems.
• Low-Voltage Operation: Narrow core supply range (1.07–1.13 V) aligned with Cyclone V low-power design practices for power-sensitive deployments.
• Flexible I/O Count: 129 I/Os provide ample connectivity for sensors, actuators, and external peripherals without excessive external logic.
• Family-Level Integration: Access to Cyclone V features—such as M10K memory blocks with ECC, variable-precision DSP blocks, and integrated transceiver/memory-controller options—supports system-level integration and simplified BOM.

Why Choose 5CGTFD5F5M11I7N?

The 5CGTFD5F5M11I7N positions the Cyclone V GT architecture in a compact, industrial-grade BGA package, delivering substantial logic resources and on-chip memory with low-voltage operation. It is well suited for engineers designing mid-density, performance-conscious systems that require reliable operation across a wide temperature range and flexible I/O.

Choosing this part gives access to Cyclone V family capabilities—low-power 28 nm process benefits, embedded memory and DSP resources, and integrated transceiver/memory-controller options—providing a scalable platform for long-term deployment and design migration within the Cyclone V portfolio.

Request a quote or submit an inquiry to receive pricing, availability, and additional technical support for the 5CGTFD5F5M11I7N Cyclone V GT FPGA.
