5CGTFD7B5M15C7N

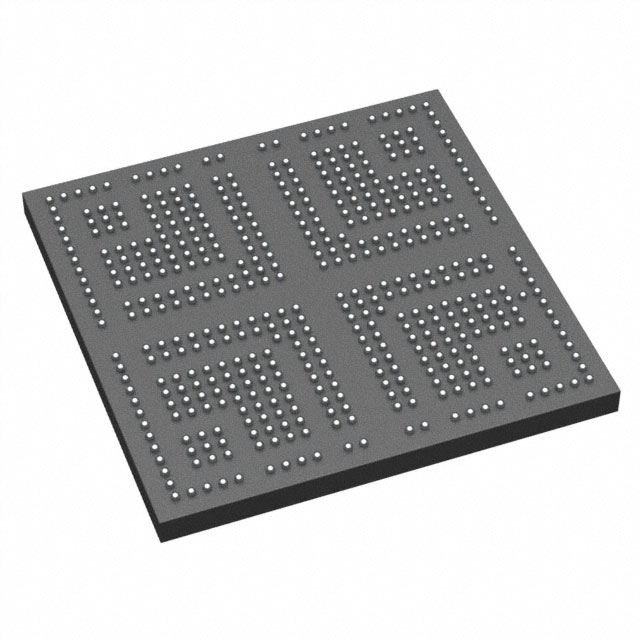

The 5CGTFD7B5M15C7N is an Intel Cyclone® V GT field programmable gate array (FPGA) in a 484‑LFBGA (15×15 mm) package. It combines reprogrammable logic, on‑chip embedded memory, and high‑speed transceiver capability to address applications that require flexible data‑path architecture and system integration.

Designed for cost‑sensitive, performance‑oriented markets such as industrial, wireless/wireline, and military applications, this device provides a balance of logic capacity, embedded RAM, and I/O density while operating from a 1.07 V to 1.13 V core supply.

Key Features

• Logic Capacity  149,500 logic elements to implement complex state machines, glue logic, and custom datapaths.
• Embedded Memory  Approximately 7.88 Mbits of on‑chip RAM for buffering, frame storage, and local data structures.
• I/O and Package  240 user I/O pins in a 484‑LFBGA (484‑MBGA, 15×15) surface‑mount package for dense board integration.
• Power  Core supply range of 1.07 V to 1.13 V, supporting low‑voltage operation consistent with the Cyclone V device family.
• Operating Range  Commercial temperature range, 0 °C to 85 °C, for standard ambient‑temperature applications.
• Integrated Transceivers & Memory Controllers  Series‑level Cyclone V features include integrated multigigabit transceivers and hard memory controllers for high‑bandwidth interfaces and external memory connectivity.
• SoC Integration Options  Cyclone V family devices provide optional hard processor system (HPS) integration with an Arm Cortex‑A9 processor in series documentation for SoC designs.
• Process & Standards  Built on TSMC 28 nm low‑power process technology and compliant with RoHS environmental requirements.

Typical Applications

• Industrial Control  Implement motor control, machine I/O consolidation, and protocol bridging using on‑chip logic and ample I/O density.
• Wireless and Wireline Infrastructure  Support data path processing and high‑speed serial links with integrated transceivers and hard memory controllers.
• SoC and Embedded Platforms  Combine programmable logic and embedded memory for custom accelerators, pre‑processing, and system glue in heterogeneous designs.

Unique Advantages

• Significant Logic Resources: 149,500 logic elements provide design headroom for mid‑to‑large complexity functions without external logic.
• On‑Chip Memory for Low‑Latency Data: Approximately 7.88 Mbits of embedded RAM reduces dependence on external memory for buffering and fast local storage.
• High I/O Density in a Compact Package: 240 I/Os in a 484‑LFBGA package deliver a compact footprint with broad connectivity for board‑level integration.
• Low‑Voltage Operation: Narrow core supply window (1.07 V–1.13 V) aligns with low‑power system designs and the Cyclone V family’s 1.1 V core architecture.
• Proven Series Features: Series documentation highlights integrated transceivers, hard memory controllers, and optional HPS integration for scalable system designs.
• RoHS Compliant: Environmentally compliant manufacturing status to meet regulatory requirements for many product lines.

Why Choose 5CGTFD7B5M15C7N?

The 5CGTFD7B5M15C7N delivers a balanced combination of logic capacity, embedded memory, and I/O density in a compact 484‑LFBGA package, suited for applications that require flexible hardware acceleration and reliable board‑level integration. With support for integrated transceivers and hard memory controllers at the Cyclone V family level, it is a practical choice for engineers building mid‑range FPGA‑based systems where efficiency, integration, and predictable supply‑voltage operation matter.

This device is well suited to design teams needing scalable FPGA resources with series‑level SoC options and industry‑documented features—providing a clear upgrade path within the Cyclone V family and access to vendor documentation and design resources.

Request a quote or submit a pricing inquiry to receive availability and lead‑time information for part number 5CGTFD7B5M15C7N.
