5CGTFD5F5M11C7N

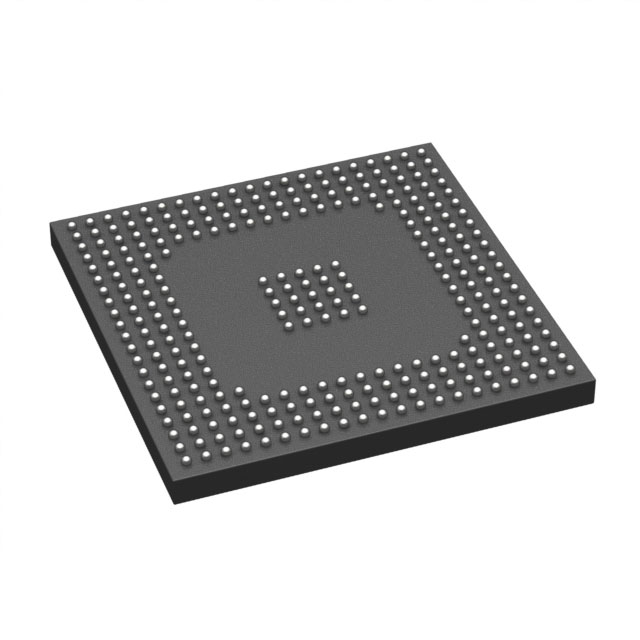

The 5CGTFD5F5M11C7N is a Cyclone® V GT field-programmable gate array (FPGA) packaged in a 301‑TFBGA (301‑MBGA, 11×11) surface-mount package. It delivers a balance of programmable logic capacity, embedded memory, and high-speed interfacing suitable for cost-sensitive, high-bandwidth designs.

Built on the Cyclone V family architecture, this device targets markets requiring integrated transceivers and hard memory controllers, with a commercial operating temperature range and low-voltage core operation for efficient system-level power management.

Key Features

• Logic Capacity — 77,000 logic elements for mid-density FPGA designs, enabling complex combinational and sequential logic implementation.
• Embedded Memory — Approximately 5 Mbits of on-chip RAM (5,001,216 bits) to support buffering, lookup tables, and embedded data storage.
• I/O Density — 129 user I/O pins to support multiple interfaces and peripheral connections in a compact footprint.
• Integrated Transceivers & Memory IP — Cyclone V GT family features include integrated transceivers and hard memory controllers for high-bandwidth interface tasks and simplified external memory integration.
• Process & Core Voltage — Family-level implementation on a 28 nm low-power process with a core supply requirement of 1.07 V to 1.13 V.
• Package & Mounting — 301‑TFBGA package (supplier package 301‑MBGA, 11×11), surface-mount mounting for compact PCB implementations.
• Operating Range — Commercial temperature grade with specified operating range of 0 °C to 85 °C.
• Regulatory — RoHS compliant.

Typical Applications

• Wireless & Wireline Infrastructure — Use integrated transceivers and embedded memory to implement high-bandwidth protocol interfaces and signal-processing blocks.
• Industrial Systems — Mid-density programmable logic and on-chip RAM for control logic, data aggregation, and interface bridging in commercial industrial equipment.
• Military Systems — Programmable architecture and embedded resources suitable for communications and processing tasks where Cyclone V family features are required.
• High-volume, Cost-sensitive Electronics — Packaging and family-level features aimed at lowering system cost while maintaining necessary bandwidth and integration.

Unique Advantages

• Balanced Logic and Memory — 77,000 logic elements combined with approximately 5 Mbits of embedded memory to support mid-range processing and buffering needs without external RAM dependency.
• Integrated High-speed Interfaces — Family-level integrated transceivers and hard memory controllers reduce external component count and simplify high-bandwidth interface design.
• Low-voltage Core Operation — Narrow supply voltage range (1.07 V–1.13 V) aligned with the Cyclone V low-power 28 nm process to help optimize system power delivery.
• Compact Surface-mount Package — 301‑TFBGA (11×11) packaging enables dense PCB layouts for space-constrained applications.
• Commercial Temperature and RoHS Compliance — Specified 0 °C to 85 °C operation and RoHS compliance for broad commercial deployment.

Why Choose 5CGTFD5F5M11C7N?

This Cyclone V GT FPGA model offers a practical mix of programmable logic, embedded memory, and integrated interface IP suited to designs that demand mid-range logic capacity and high-bandwidth connectivity while controlling system cost. Its package and supply requirements make it appropriate for compact, surface-mounted commercial products.

Designers building cost-sensitive, high-volume digital systems or communications interfaces will find the 5CGTFD5F5M11C7N provides scalable FPGA resources from the Cyclone V family with the integration necessary to reduce BOM and simplify board-level routing and power design.

Request a quote or submit an inquiry for availability and pricing for 5CGTFD5F5M11C7N to get started on your design evaluation and procurement.
