5CGTFD5C5M13I7N

The 5CGTFD5C5M13I7N is an Intel Cyclone V GT field programmable gate array (FPGA) in a 383-TFBGA package intended for industrial applications. Built on the Cyclone V device family foundation, it combines programmable logic, on-chip embedded memory, and a broad I/O count to address bandwidth‑sensitive and integration‑focused designs.

Targeted at markets such as industrial control, wireless and wireline communications, and military applications, this device offers a balance of logic capacity, embedded RAM, and a package and temperature rating suited for industrial deployments.

Key Features

• FPGA Fabric (Cyclone V architecture) Built on Cyclone V device technology with architecture features described in the Cyclone V device overview.
• Logic Capacity Approximately 77,000 logic elements to implement medium‑to‑large custom logic and control functions.
• Embedded Memory Approximately 5.0 Mbits of on‑chip RAM (5,001,216 total RAM bits) for buffering, lookup tables, and state storage.
• I/O Density 175 general‑purpose I/O pins to support multiple interfaces and peripheral connectivity.

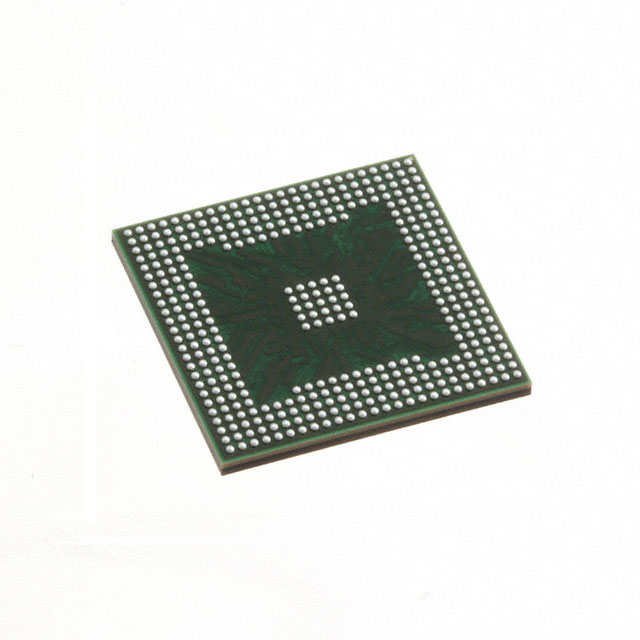

• Package and Mounting 383‑TFBGA package; supplier device package listed as 383‑MBGA (13×13). Surface‑mount mounting type.
• Power Core supply range: 1.07 V to 1.13 V, matching the low‑voltage FPGA core requirements.
• Industrial Temperature Grade Qualified for operation from −40 °C to 100 °C for deployment in industrial environments.
• RoHS Compliant Meets RoHS environmental compliance requirements.

Typical Applications

• Industrial Control and Automation High I/O count and industrial temperature rating make the device suitable for sensor aggregation, protocol bridging, and control logic in factory and process automation systems.
• Wireless and Wireline Infrastructure Cyclone V family features (as described in the device overview) align with designs that require integrated transceivers and hard memory controllers for data‑path and link implementations.
• Defense and Rugged Systems The industrial grade temperature range and high logic and memory resources support custom signal processing and interface functions in ruggedized equipment.

Unique Advantages

• Substantial Logic Density: ~77,000 logic elements allow consolidation of multiple functions into a single device, reducing board complexity and BOM.
• On‑Chip Memory: Approximately 5.0 Mbits of embedded RAM supports local buffering and state machines without immediate need for external memory.
• Industrial‑Ready Thermal Range: −40 °C to 100 °C operation enables reliable performance across a wide range of environmental conditions.
• Compact, Surface‑Mount Package: 383‑TFBGA (383‑MBGA 13×13) packaging provides a compact footprint for space‑constrained PCB designs.
• Low‑Voltage Core: Narrow core supply window (1.07–1.13 V) supports power‑sensitive system designs and consistent core operation.
• RoHS Compliance: Meets environmental regulations for lead‑free assemblies.

Why Choose 5CGTFD5C5M13I7N?

The 5CGTFD5C5M13I7N positions itself as an industrial‑grade Cyclone V GT FPGA that balances logic capacity, embedded memory, and I/O density in a compact BGA package. Its core voltage range, RoHS compliance, and extended operating temperature make it suitable for designers who need a reliable, integrated programmable logic device for industrial, communications, and rugged systems.

Engineers seeking a device that supports consolidation of custom logic, local memory needs, and substantial I/O connectivity will find this Cyclone V GT part a practical choice for mid‑to‑high complexity FPGA designs, with the device family support and documentation available for system integration.

Request a quote or submit an inquiry to receive pricing, availability, and technical support information for 5CGTFD5C5M13I7N.
