5CGTFD5C5M13C7N

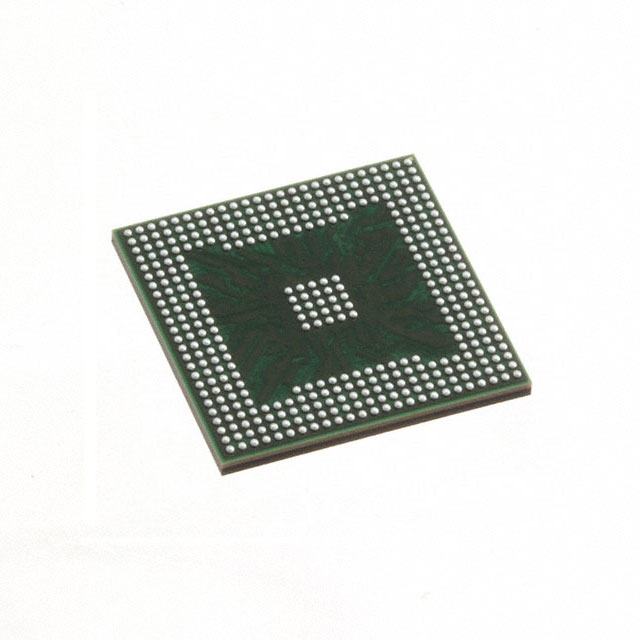

The 5CGTFD5C5M13C7N is an Intel Cyclone® V GT field programmable gate array (FPGA) in a 383-TFBGA package. It combines a high-density FPGA fabric with on-chip embedded memory and extensive I/O to address cost-sensitive, bandwidth-focused designs.

As part of the Cyclone V family, this GT variant emphasizes integration for applications that require serial connectivity and hard memory controller functionality while maintaining a commercial-grade operating range and low-power core supply requirements.

Key Features

• Logic Fabric  Approximately 77,000 logic elements provide the core programmable fabric for custom digital functions and control logic.
• Embedded Memory  Approximately 5 Mbits of on-chip embedded memory (total RAM bits: 5,001,216) for buffering, LUT-based storage, and local data processing.
• I/O Density  175 general-purpose I/O pins enable broad interfacing to peripherals, sensors, and external devices.
• High-speed Transceivers (Series Feature)  Cyclone V GT devices incorporate low-power serial transceivers with supported data rates in the family up to 3.125 Gbps and 6.144 Gbps for high-bandwidth links.
• Power  Designed to operate with a core voltage range of 1.07 V to 1.13 V, aligning with the Cyclone V family’s low-power 28 nm process characteristics.
• Package & Mounting  383-TFBGA (supplier device package: 383-MBGA, 13×13) in a surface-mount form factor for compact board-level integration.
• Commercial Temperature Grade  Rated for 0 °C to 85 °C operation and specified as Commercial grade.
• Environmental Compliance  RoHS-compliant construction.

Typical Applications

• High-bandwidth serial links  Use the GT transceiver capability for multi-gigabit serial communications in wireline and wireless backhaul or high-speed board-to-board links.
• Memory interface acceleration  On-chip memory combined with Cyclone V hard memory controller capability (family feature) is suitable for designs requiring external memory management and buffering.
• Industrial control and automation  Leverage the device’s I/O count and programmable fabric for motor control, sensor aggregation, and real-time control tasks in commercial industrial applications.
• Custom protocol and peripheral bridging  Implement protocol translation, custom interfaces, and glue logic between heterogeneous subsystems using the array of I/O and programmable logic.

Unique Advantages

• High-density programmable fabric: The ~77,000 logic elements enable complex custom logic and multiple concurrent functions on a single device, reducing PCB complexity.
• Embedded memory for local buffering: Approximately 5 Mbits of on-chip RAM supports look-up tables, FIFOs, and temporary storage without immediate reliance on external memory.
• Integrated high-speed connectivity (family-level): The Cyclone V GT family’s transceiver integration reduces the need for discrete SERDES components and simplifies high-speed link design.
• Low-voltage core operation: A tight core voltage range (1.07–1.13 V) consistent with low-power 28 nm process operation helps plan power distribution and thermal budgets.
• Compact, surface-mount packaging: The 383-TFBGA (383-MBGA 13×13) package supports dense board layouts and automated assembly processes.
• Commercial-grade robustness: Specified operation from 0 °C to 85 °C accommodates a wide range of commercial applications and environments.

Why Choose 5CGTFD5C5M13C7N?

The 5CGTFD5C5M13C7N positions itself as a high-density, integrated FPGA solution for designs that require substantial programmable logic, embedded memory, and broad I/O in a compact surface-mount package. Its alignment with the Cyclone V GT family brings the benefits of integrated transceivers and memory controller capabilities, helping reduce external component count and simplify system architecture.

This part is well-suited for engineering teams developing cost- and power-sensitive commercial products that demand multi-gigabit connectivity, flexible peripheral interfacing, and scalable logic capacity backed by Intel’s Cyclone V device family documentation and ecosystem.

Request a quote or submit an RFQ to begin procurement for the 5CGTFD5C5M13C7N and evaluate how it fits into your next FPGA-based design.
