A3PN020-2QNG68

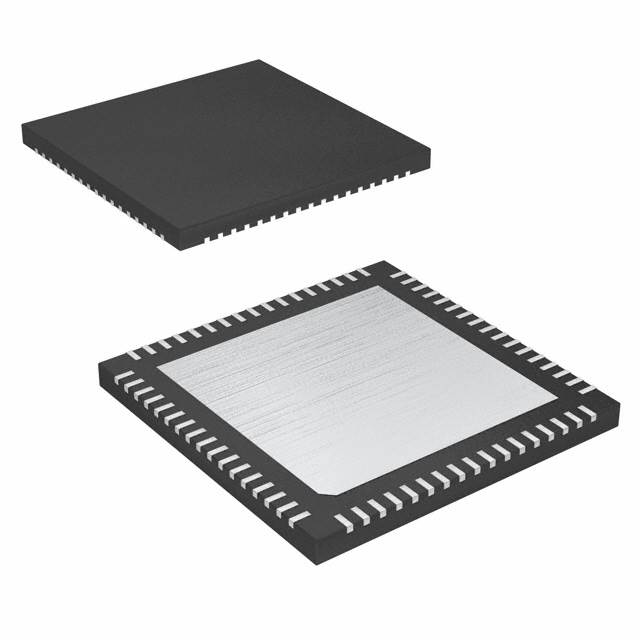

The A3PN020-2QNG68 is a ProASIC3 nano Field Programmable Gate Array (FPGA) from Microchip Technology in a 68-VFQFN exposed pad package. It provides 520 logic elements (cells), approximately 20,000 gates and 49 I/O pins in a compact surface-mount 68-QFN (8x8) footprint.

Designed for commercial-grade embedded designs, the device operates from a 1.425 V to 1.575 V supply and is specified for an operating temperature range of −20 °C to 85 °C. The device is RoHS compliant.

Key Features

• Core Logic 520 logic elements (cells) delivering roughly 20,000 gates for moderate digital integration and custom logic implementation.
• I/O Count 49 I/O pins to support multiple external interfaces and peripheral connections.
• Memory Total RAM bits: 0, suitable for designs that rely on distributed logic or external memory.
• Power Supply Low-voltage operation with a specified supply range of 1.425 V to 1.575 V to match tight power domains.
• Package and Mounting 68-VFQFN exposed pad, Supplier Device Package: 68-QFN (8x8); surface-mount for compact PCB implementations and thermal pad support.
• Temperature and Grade Commercial grade device rated for −20 °C to 85 °C operating temperature.
• Compliance RoHS compliant for environmental regulatory requirements.

Unique Advantages

• Compact, board-friendly package: 68-VFQFN with exposed pad in a 68-QFN (8x8) footprint reduces PCB area while providing a thermal path.
• Moderate logic capacity: 520 logic elements and ~20,000 gates enable implementation of custom glue logic, control state machines, and moderate combinational/sequential functions.
• Generous I/O count: 49 I/O pins allow integration with multiple peripherals or bus interfaces without immediate need for external multiplexing.
• Low-voltage operation: Tight supply range (1.425 V–1.575 V) simplifies power-domain integration in systems with specific voltage requirements.
• Commercial temperature range: Specified −20 °C to 85 °C supports standard commercial embedded applications.
• Regulatory readiness: RoHS compliance supports environmentally conscious product development and supply fulfillment.

Why Choose A3PN020-2QNG68?

The A3PN020-2QNG68 provides a balanced combination of logic capacity, I/O density, and a compact QFN package tailored for commercial embedded designs that require configurable digital logic in a small form factor. Its defined supply and temperature specifications make it straightforward to integrate into systems with controlled power domains and standard operating environments.

For designers seeking a Microchip ProASIC3 nano FPGA with moderate gate count and a 68-VFQFN exposed pad package, the A3PN020-2QNG68 offers a predictable, RoHS-compliant option that aligns with compact PCB layouts and routine commercial applications.

Request a quote or submit an inquiry to check pricing and availability for the A3PN020-2QNG68.
