A3PN015-QNG68

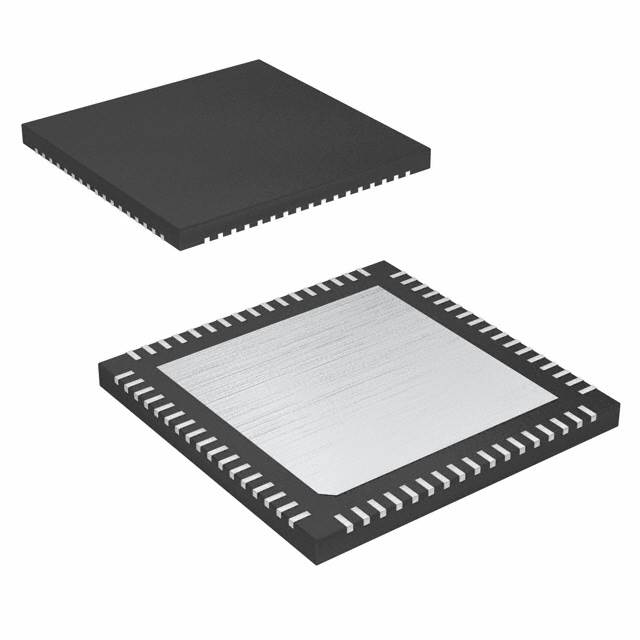

The A3PN015-QNG68 is a ProASIC3 nano field programmable gate array (FPGA) IC from Microchip Technology designed for commercial-grade electronic designs. It delivers a compact, low-profile solution with 384 logic elements (approximately 15,000 gates) and 49 general-purpose I/O in a 68-VFQFN exposed pad package.

Targeted at applications that need configurable logic in a small surface-mount form factor, this device provides defined supply and thermal operating ranges to support reliable integration into board-level designs.

Key Features

• Core / Logic 384 logic elements (≈15,000 gates) to implement custom logic, state machines, and glue-logic functions.
• I/O 49 user I/O pins suitable for interfacing with peripherals, sensors, and other digital subsystems.
• Package & Mounting 68-VFQFN exposed pad package (supplier device package: 68-QFN 8×8) optimized for surface-mount assembly on compact PCBs.
• Power Supply Core supply voltage range of 1.425 V to 1.575 V, enabling straightforward power rail planning for the FPGA core.
• Operating Range Commercial operating temperature from −20°C to 85°C for typical commercial-environment deployments.
• Compliance RoHS compliant to support lead-free manufacturing processes.
• Manufacturer Built by Microchip Technology and offered as a commercial-grade FPGA option.

Typical Applications

• Embedded control and glue logic — Implement custom control state machines and board-level interfacing using the device’s 384 logic elements and 49 I/O pins.
• I/O expansion and protocol adaptation — Use the FPGA to adapt signals and expand digital I/O for modular commercial systems.
• Compact, surface-mount designs — The 68-VFQFN exposed pad package supports small form-factor PCBs and surface-mount assembly processes.

Unique Advantages

• Compact integration: The 68-VFQFN exposed pad package and surface-mount mounting enable high-density PCB layouts and small module footprints.
• Moderate logic capacity: 384 logic elements (≈15,000 gates) provide sufficient programmable resources for common control and interfacing tasks without excessive footprint.
• Clear supply requirements: A defined core voltage range (1.425–1.575 V) simplifies power supply selection and board-level power design.
• Commercial temperature rating: Specified −20°C to 85°C operation aligns with typical commercial electronic product environments.
• RoHS compliant: Supports lead-free manufacturing and regulatory requirements for commercial electronics.

Why Choose A3PN015-QNG68?

The A3PN015-QNG68 positions itself as a compact, commercially graded FPGA option for designers who need a small-footprint programmable device with a defined logic capacity and a clear supply and thermal envelope. Its combination of 384 logic elements, 49 I/O, and a 68-VFQFN exposed pad package makes it suitable for board-level integration where space and predictable electrical requirements matter.

Backed by Microchip Technology, this device is a practical choice for engineers developing commercial electronic products that require configurable logic, moderate gate density, and a compact surface-mount package.

Request a quote or submit your requirements to receive pricing and availability for the A3PN015-QNG68.
