A3PN015-1QNG68

The A3PN015-1QNG68 is a ProASIC3 nano FPGA IC from Microchip Technology, providing reconfigurable digital logic in a compact 68-VFQFN exposed pad package. With 384 logic elements (LEs), approximately 15,000 gates and 49 user I/Os, it targets commercial electronic designs that require on-board programmable logic and interface flexibility.

Designed for surface-mount assembly and RoHS-compliant production, this commercial-grade FPGA operates from a 1.425 V to 1.575 V core supply and supports an operating temperature range of −20 °C to 85 °C.

Key Features

• Core Logic  384 logic elements provide fixed, indexed logic capacity for implementing custom digital functions; the device lists 15,000 gates of equivalent capacity.
• I/O Count  49 available I/O pins suitable for interfacing with sensors, peripherals, and external logic in compact designs.

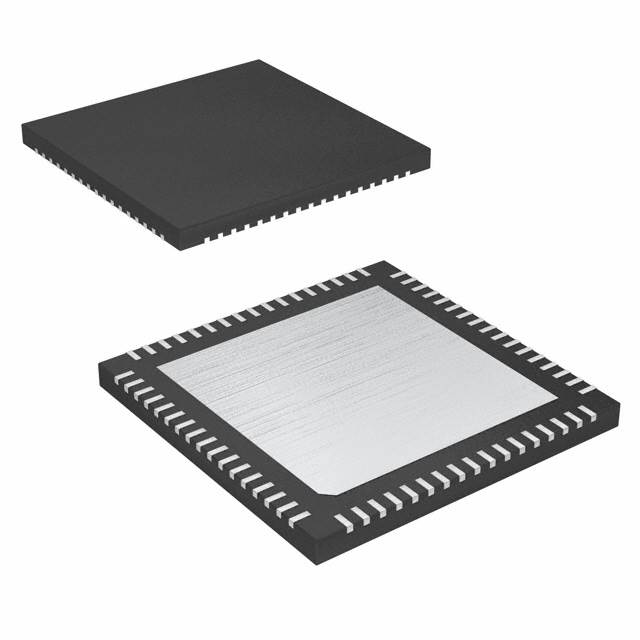

• Package and Mounting  68-VFQFN exposed pad (supplier device package: 68-QFN 8×8) optimized for surface-mount PCB assembly and thermal conduction through the exposed pad.
• Power  Core supply range of 1.425 V to 1.575 V to match system power budgets that use narrow-voltage FPGA cores.
• Temperature and Grade  Commercial-grade device rated for −20 °C to 85 °C operation, suitable for a wide range of commercial electronic products.
• Environmental Compliance  RoHS compliant for conformity with common environmental and manufacturing requirements.

Typical Applications

• Commercial Embedded Systems  Use the A3PN015-1QNG68 to implement control logic and custom timing in compact, commercial electronic products.
• Interface and Glue Logic  Leverage 49 I/Os and programmable logic resources to bridge peripherals and create custom protocol adapters on-board.
• Consumer Electronics  Compact 68-QFN packaging and surface-mount compatibility make the device suitable for space-constrained consumer designs requiring configurable logic.
• Prototyping and Development  Provide a reconfigurable platform for validating digital logic functions and small-scale system integration in commercial projects.

Unique Advantages

• Compact, thermally capable package: 68-VFQFN with exposed pad supports small form-factor PCB layouts while offering a thermal path via the exposed pad.
• Right-sized logic capacity: 384 logic elements and 15,000 gates deliver measurable programmable logic resources for focused commercial designs without excessive area or power overhead.
• Ample I/O for integration: 49 I/Os enable flexible interfacing to sensors, peripherals, and external controllers in a single device.
• Narrow core voltage: 1.425 V to 1.575 V supply range aligns with low-voltage system power rails often used in modern commercial electronics.
• Regulatory-friendly manufacturing: RoHS compliance supports environmental and assembly requirements for commercial products.

Why Choose A3PN015-1QNG68?

The A3PN015-1QNG68 combines a proven ProASIC3 nano FPGA architecture with a compact 68-VFQFN exposed pad footprint and a focused set of programmable resources. Its 384 logic elements, 49 I/Os, and approximately 15,000 gates make it well suited for designers seeking a commercial-grade, reconfigurable logic device for compact systems and interface-centric applications.

For teams balancing PCB space, power, and programmable capability, this Microchip Technology FPGA offers a clear, verifiable specification set and RoHS compliance to support volume manufacturing and product lifecycle requirements.

Request a quote or submit an inquiry to obtain pricing and availability information for the A3PN015-1QNG68.
