A3PN010-2QNG48

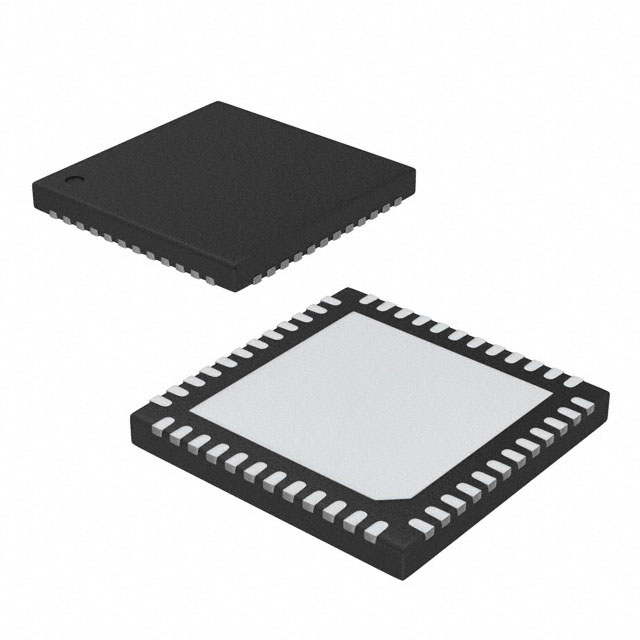

The A3PN010-2QNG48 is a ProASIC3 nano Field Programmable Gate Array (FPGA) IC from Microchip Technology, delivered in a compact 48-VFQFN exposed pad package. It provides a low-density programmable logic option with defined I/O and logic capacity for commercial designs.

With 260 logic elements, 34 general-purpose I/O pins and a narrow supply voltage range, this device is suited to compact control, interface and glue-logic functions where known electrical and thermal packaging details are important.

Key Features

• Logic Capacity 260 logic elements provide a defined resource set for implementing small to medium control and glue-logic functions.
• Gate Count Approximately 10,000 gates for combinational and sequential logic implementation.
• I/O 34 user I/O pins to support multiple peripheral and interface connections in compact systems.
• Power Supply Single-core voltage range of 1.425 V to 1.575 V for consistent power design and system compatibility.
• Package 48-VFQFN with exposed pad (supplier package: 48-QFN 6×6) for a compact surface-mount footprint and defined board-mounting form factor.
• Mounting Surface-mount device suitable for automated PCB assembly processes.
• Operating Temperature Rated for commercial temperature operation from −20 °C to 85 °C.
• Compliance RoHS compliant.

Typical Applications

• Control and Glue Logic Implement state machines, protocol translators and peripheral control where a modest number of logic elements and I/O are required.
• Interface Bridging Provide level translation and interface adaptation using the available 34 I/O pins in compact assemblies.
• Consumer and Commercial Devices Use in commercial-grade products that operate within the specified temperature and supply voltage ranges.
• Prototyping and Evaluation Rapidly validate small FPGA-based functions or replace discrete logic with a single programmable device.

Unique Advantages

• Compact Form Factor: 48-VFQFN exposed pad package (6×6 QFN) minimizes PCB area while providing a consistent surface-mount solution.
• Predictable Logic Resources: 260 logic elements and ~10,000 gates make resource planning straightforward for low-density designs.
• Clear Power Specification: Narrow supply voltage range (1.425–1.575 V) simplifies power-supply selection and validation.
• Commercial Temperature Rating: −20 °C to 85 °C rating matches a wide range of non-industrial applications.
• RoHS Compliant: Meets lead-free and hazardous-substance compliance expectations for modern commercial electronics.
• Manufacturer Backing: Supplied by Microchip Technology, providing continuity within a known FPGA product family.

Why Choose A3PN010-2QNG48?

The A3PN010-2QNG48 offers a compact, commercially rated programmable-logic option with defined logic capacity and I/O count, making it a practical choice for designers implementing control, interfacing or glue-logic functions in space-constrained PCBs. Its 48-VFQFN exposed pad package and surface-mount mounting support modern assembly flows, while the specified supply and temperature ranges allow for straightforward system integration.

This device is well suited to customers who need a small, verifiable FPGA resource set from Microchip Technology for commercial products and prototypes, providing predictable electrical and packaging characteristics for reliable design planning.

Request a quote or submit an inquiry to obtain pricing and availability for the A3PN010-2QNG48.
