A3PN010-QNG48

The A3PN010-QNG48 is a ProASIC3 nano field programmable gate array (FPGA) IC from Microchip Technology, offered in a 48-VFQFN exposed pad package. It provides 260 logic elements (approximately 10,000 gates) and 34 user I/O pins in a compact surface-mount form factor.

Designed for commercial-grade applications, this device operates from a 1.425 V to 1.575 V supply and across an operating temperature range of −20°C to 85°C, with RoHS compliance for environmental compatibility.

Key Features

• Core FPGA ProASIC3 nano programmable logic device providing 260 logic elements for implementing custom combinational and sequential logic.
• Logic Capacity Approximately 10,000 gates of logic capacity suitable for low- to moderate-density designs.
• I/O Resources 34 general-purpose I/O pins available for interfacing with peripherals and external circuitry.
• Memory No embedded RAM bits are present in this device.
• Power Single supply voltage range of 1.425 V to 1.575 V for core operation.

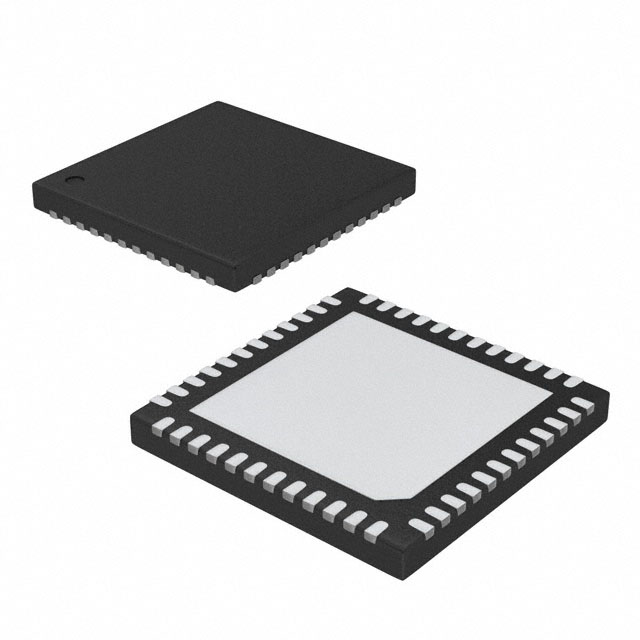

• Package & Mounting 48-VFQFN exposed pad (48-QFN, 6×6 mm) surface-mount package for compact PCB layouts and thermal grounding via exposed pad.
• Operating Range & Grade Commercial-grade device specified for −20°C to 85°C ambient operation.
• Environmental Compliance RoHS compliant to support regulatory and environmental requirements.

Typical Applications

• Commercial Embedded Systems — Use as on-board programmable logic for control, signal routing, or custom interfaces within commercial products that operate within the specified temperature and supply ranges.
• I/O Consolidation — Implement glue logic and interface adaptation using the 34 available I/O pins to reduce external components.
• Prototyping and Development — Suitable for low- to moderate-density FPGA prototypes where 260 logic elements meet design needs.
• Compact PCB Designs — 48-VFQFN exposed pad package enables space-efficient placement and thermal management on compact boards.

Unique Advantages

• Compact, surface-mount package: 48-VFQFN (6×6 mm) with exposed pad supports small-board implementations and improved thermal dissipation.
• Predictable logic resource: 260 logic elements and approximately 10,000 gates provide defined capacity for designers planning resource budgets.
• Defined I/O count: 34 I/O pins simplify interface planning for peripheral and system integration.
• Tight core voltage spec: Narrow supply range (1.425 V–1.575 V) enables consistent power planning and margin control.
• Commercial-grade operating range: Specified for −20°C to 85°C to match typical commercial application environments.
• RoHS compliant: Meets common environmental and manufacturing requirements for lead-free assembly.

Why Choose A3PN010-QNG48?

The A3PN010-QNG48 positions itself as a compact, commercially graded FPGA option for designs that require a modest amount of programmable logic, a clear I/O count, and a small footprint. Its exposed-pad 48-VFQFN package and defined electrical and thermal characteristics make it straightforward to integrate into space-constrained boards.

Choose this device when you need a verifiable, low- to moderate-density FPGA solution with predictable resource allocation, simple power requirements, and RoHS compliance for commercial product designs.

Request a quote or submit an inquiry to obtain pricing and availability for the A3PN010-QNG48.
