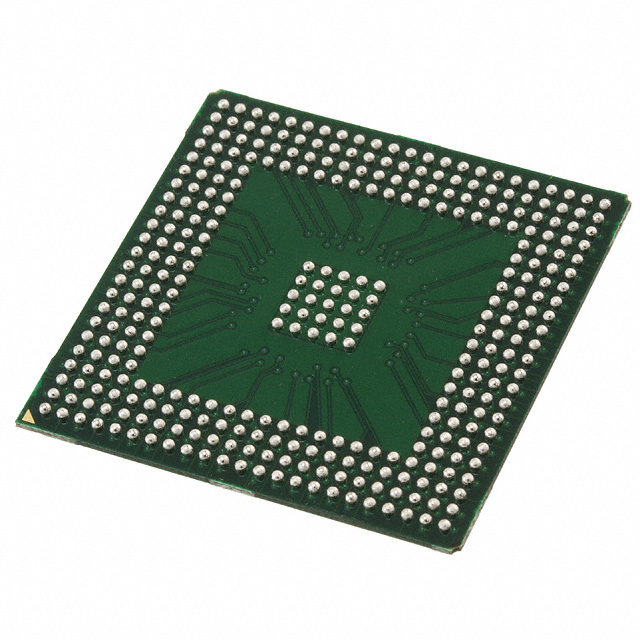

A54SX32A-2BG329I
| Part Description |
SX-A Field Programmable Gate Array (FPGA) IC 249 329-BBGA |
|---|---|
| Quantity | 792 Available (as of October 8, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | Microchip Technology |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 20 Weeks |
| Datasheet |
Specifications & Environmental
| Device Package | 329-PBGA (31x31) | Grade | Industrial | Operating Temperature | -40°C – 85°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 329-BBGA | Number of I/O | 249 | Voltage | 2.25 V - 5.25 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | RoHS non-compliant | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 3 (168 Hours) | Number of LABs/CLBs | 2880 | Number of Logic Elements/Cells | 2880 | ||
| Number of Gates | 48000 | ECCN | 3A991D | HTS Code | 8542.39.0001 | ||
| Qualification | N/A |
Overview of A54SX32A-2BG329I – SX-A Field Programmable Gate Array (FPGA) IC, 249 I/O, 329-BBGA
The A54SX32A-2BG329I is an industrial-grade SX-A family FPGA from Microchip Technology. It delivers a nonvolatile, single-chip FPGA architecture with 48,000 system gates, 2,880 logic elements and up to 249 user-programmable I/O pins.
Designed for mixed-voltage embedded and industrial designs, this device supports a wide supply range (2.25 V to 5.25 V) and an operating temperature of −40 °C to 85 °C, making it suitable for deployments that require high I/O density, configurable I/O standards and secure, in-system programmability.
Key Features
- Performance: SX-A family performance metrics include up to 250 MHz system performance and 350 MHz internal performance (series-level specification).
- Capacity: 48,000 system gates with 2,880 logic elements and device-level support for a large number of registers and flip-flops appropriate to the A54SX32A class.
- I/O and Voltage Support: 249 user I/Os with configurable I/O support for multiple standards; device-level mixed-voltage operation and a supply range of 2.25 V to 5.25 V enable flexible interfacing.
- No Embedded RAM: Total on-chip RAM bits reported as 0, for designs that rely on logic and external memory resources.
- Secure, Nonvolatile Configuration: Nonvolatile single-chip FPGA architecture and Actel Secure Programming Technology with FuseLock™ to protect designs against reverse engineering (series-level feature).
- System Integration and Reliability: Hot-swap–compliant I/Os, power-up/power-down friendly operation without supply sequencing, boundary-scan (IEEE 1149.1 JTAG) and deterministic, user-controllable timing.
- I/O Control and Flexibility: Configurable weak pull-up/pull-down at power-up, individual output slew-rate control, 5 V input tolerance and drive capability supported at the device-family level.
- Package and Mounting: 329-BBGA package (supplier device package: 329-PBGA, 31×31) in a surface-mount form factor; RoHS compliant.
- Temperature and Grade: Industrial grade with operating temperature range −40 °C to 85 °C.
Typical Applications
- Industrial Control: High I/O count and industrial temperature rating make this FPGA suitable for motor control, PLC front-ends and factory automation interfaces that require reliable operation across −40 °C to 85 °C.
- Mixed-Voltage System Interfaces: Configurable I/O and mixed-voltage operation allow bridging and protocol adaptation between 2.5 V, 3.3 V and 5 V domains in embedded systems.
- Secure, In-System Programmable Logic: Nonvolatile single-chip configuration and FuseLock™ security support applications that require field-programmable updates while protecting IP.
Unique Advantages
- High I/O Density: 249 user-programmable I/Os provide extensive external connectivity for complex interface and signal routing tasks, reducing the need for external glue logic.
- Deterministic Timing: User-controllable timing resources help deliver predictable behavior for time-critical control and interface applications.
- Robust Power Handling: Wide supply voltage range (2.25 V–5.25 V) and power-up/power-down friendly behavior simplify system power sequencing and mixed-voltage board designs.
- Nonvolatile, Secure Configuration: Single-chip nonvolatile FPGA architecture with secure programming minimizes external configuration components and protects IP in the field.
- Industry-Grade Thermal Range: Industrial temperature rating (−40 °C to 85 °C) supports deployment in demanding environmental conditions.
- Compliance and Testability: Boundary-scan (IEEE 1149.1) support improves board-level testability and manufacturing diagnostics.
Why Choose A54SX32A-2BG329I?
The A54SX32A-2BG329I positions itself as a practical choice for industrial and embedded designs that require a nonvolatile FPGA with a high I/O count, mixed-voltage interfacing and secure, in-system programmability. Its 48,000 system gates and 2,880 logic elements provide substantial logic capacity in a compact 329-pin BBGA package, while family-level performance characteristics and deterministic timing support responsive system behavior.
This device suits teams looking for a robust, production-ready FPGA solution for industrial control, I/O bridging and secure programmable logic. The combination of mixed-voltage support, hot-swap–compliant I/Os and RoHS-compliant packaging delivers integration and long-term deployment benefits for board-level designs.
Request a quote or submit an inquiry to receive pricing and availability information for the A54SX32A-2BG329I.
