A54SX32A-2BGG329I

The A54SX32A-2BGG329I is an SX‑A family FPGA from Microchip Technology offering a nonvolatile, single‑chip reconfigurable logic solution in a 329‑ball BGA package. It delivers approximately 48,000 system gates and 2,880 logic elements with a high I/O count (249 pins), making it suitable for industrial embedded designs that require deterministic timing, high I/O density and in‑system programmability.

Key attributes include multi‑voltage I/O support, wide supply range, industrial temperature grading, and features for in‑system verification and security as documented in the SX‑A family datasheet.

Key Features

• Logic Capacity Approximately 48,000 system gates and 2,880 logic elements provide reconfigurable logic resources for moderate‑complexity designs.
• I/O Density 249 user‑programmable I/O pins enable designs that require extensive external interfacing and signal routing.
• Nonvolatile Single‑Chip Configuration Device stores configuration on‑chip, removing the need for external configuration memory and supporting immediate system operation after power‑up.
• Voltage and I/O Flexibility Supply range 2.25 V to 5.25 V with configurable I/O support and 5 V input tolerance as described in the SX‑A family documentation.
• Performance SX‑A family performance metrics include up to 250 MHz system performance and up to 350 MHz internal performance (family characteristics per datasheet).
• System Reliability & Test Boundary‑scan testing compliant with IEEE 1149.1 (JTAG) and in‑system diagnostic/verification capabilities are provided by the SX‑A family toolset.
• Security Actel Secure Programming Technology with FuseLock™ is included in the SX‑A family to protect design IP (family feature).

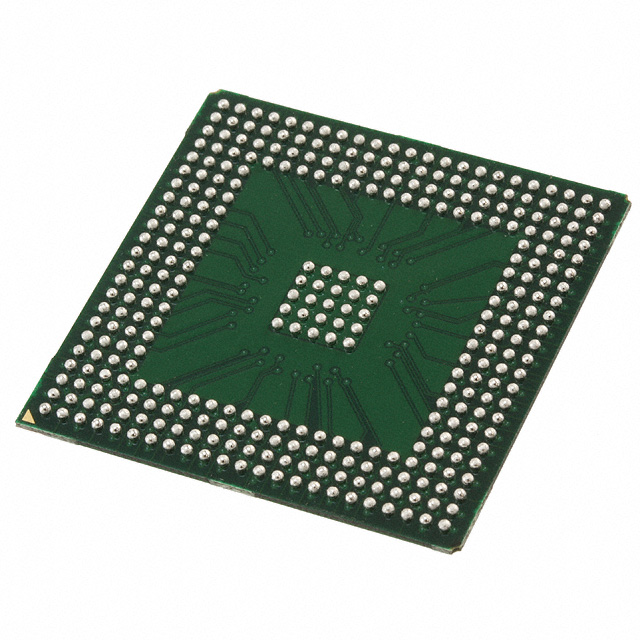

• Package & Mounting 329‑ball PBGA (329‑PBGA, 31×31) package, surface mount mounting type suitable for compact board designs.
• Industrial Grade Temperature grade: Industrial with operating range −40 °C to 85 °C.
• RoHS Compliant Device is RoHS compliant.
• On‑Chip Memory No embedded RAM bits (Total RAM Bits: 0), which is relevant when planning external memory for designs that require storage.

Typical Applications

• Industrial Control Reconfigurable control logic and I/O aggregation for factory automation and motion control systems that require operation across an industrial temperature range.
• Embedded Systems Custom peripheral interfacing and glue logic in compact, single‑board embedded systems leveraging high I/O count and nonvolatile configuration.
• In‑System Verification & Diagnostics Designs that require in‑system diagnostic capability and boundary‑scan testability during production test and field maintenance.

Unique Advantages

• Nonvolatile, single‑chip solution: Eliminates external configuration memory, simplifying BOM and system boot sequence.
• High I/O count: 249 user I/Os support dense external interfacing without the need for external I/O expanders.
• Multi‑voltage I/O and wide supply range: 2.25 V to 5.25 V supply range and configurable I/O levels provide flexibility for mixed‑voltage system designs.
• Industrial temperature rating: Qualified for −40 °C to 85 °C operation to meet typical industrial environment requirements.
• Security and testability: FuseLock™ secure programming and IEEE 1149.1 boundary‑scan support help protect IP and simplify production test flows.
• Documented family performance: SX‑A family datasheet documents system and internal performance figures and design guidance to accelerate integration.

Why Choose A54SX32A-2BGG329I?

A54SX32A-2BGG329I positions itself as a compact, nonvolatile FPGA option for industrial embedded designs that require a balance of reconfigurable logic, substantial I/O, and reliable operation across a wide supply and temperature range. Its integration of on‑chip configuration, configurable I/O levels, and built‑in security and test features reduces system complexity and supports predictable, deterministic behavior.

As part of the SX‑A family from Microchip Technology, this device is supported by family documentation and tooling for in‑system verification and programming, helping teams accelerate development and manage long‑term product deployments.

If you would like pricing, availability, or to request a quote for A54SX32A-2BGG329I, submit an inquiry or request a quote and include your required quantity and target lead time.
