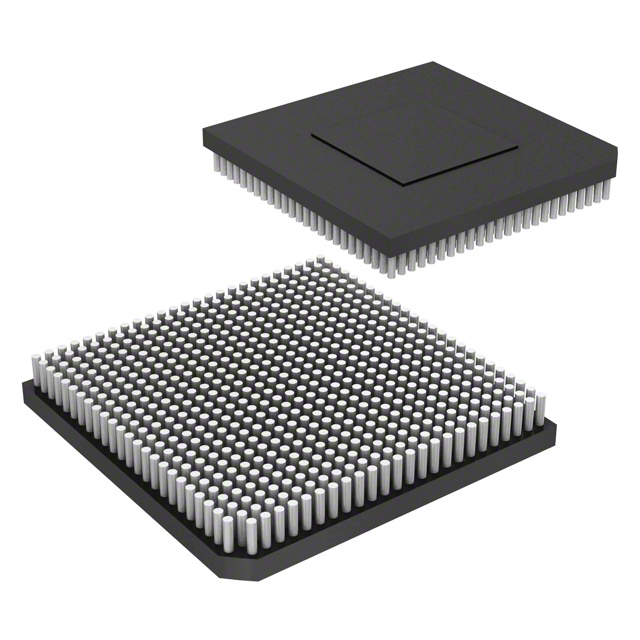

APA1000-LG624M

The APA1000-LG624M is a ProASICPLUS field programmable gate array (FPGA) from Microchip Technology designed for applications that require high logic density and extended environmental capability. This surface-mount device combines a large number of logic elements, substantial embedded RAM, and a high I/O count in a compact 624-BCLGA package.

With MIL-STD-883 qualification and an operating range from -55 °C to 125 °C, the device targets designs where military-grade qualification and wide temperature operation are required while providing significant on-chip resources for complex digital functions.

Key Features

• Logic Capacity — 56,320 logic elements provide substantial programmable logic resources for implementing complex digital designs.
• On‑Chip Memory — Approximately 0.20 Mbits (202,752 bits) of embedded RAM for buffering, state storage, and data manipulation within the fabric.
• Gate Count — 1,000,000 gates to support dense logic implementations and custom digital functions.
• I/O Density — 440 I/O pins to support multiple peripherals, high-channel-count interfacing, and parallel bus implementations.
• Package and Mounting — 624-BCLGA (supplier device package: 624-CLGA, 32.5 × 32.5 mm) in a surface-mount form factor for compact board integration.
• Power — Operates from a 2.3 V to 2.7 V supply range to match system power rails.
• Environmental and Qualification — Military grade with MIL-STD-883 qualification and RoHS compliance; rated for operation from -55 °C to 125 °C.

Typical Applications

• Military systems — Suitable for designs requiring MIL-STD-883 qualification and extended-temperature operation.
• High-density I/O concentrators — Ideal where large numbers of external interfaces must be routed and managed from a single FPGA.
• Complex digital control and processing — Used for custom logic, protocol handling, and control functions leveraging the device’s logic capacity and on-chip memory.

Unique Advantages

• High logic density: 56,320 logic elements enable implementation of sizeable custom digital functions without external logic expansion.
• Substantial embedded memory: Approximately 0.20 Mbits of on-chip RAM reduces dependence on external memory for many buffering and state-storage needs.
• Large I/O availability: 440 I/O pins allow high-channel-count interfacing and flexible system connectivity.
• Military-grade qualification: MIL-STD-883 qualification and a -55 °C to 125 °C operating range support deployment in demanding environments.
• Compact BCLGA package: 624-BCLGA (32.5 × 32.5 mm) surface-mount package balances high pin count with a space-conscious footprint.
• Controlled supply range: 2.3 V to 2.7 V operation aligns with common system power rails for straightforward integration.

Why Choose APA1000-LG624M?

The APA1000-LG624M combines significant programmable logic, embedded memory, and a high I/O count in a military‑qualified package from Microchip Technology. Its combination of resources and qualification makes it suitable for designers building mission-focused systems that require robust operation across extreme temperatures.

This device is suited for customers who need a high-density, qualified FPGA platform that simplifies board-level integration through a compact BCLGA package while offering ample on-chip resources for complex digital designs.

Request a quote or submit a procurement inquiry to receive pricing and availability information for the APA1000-LG624M.
