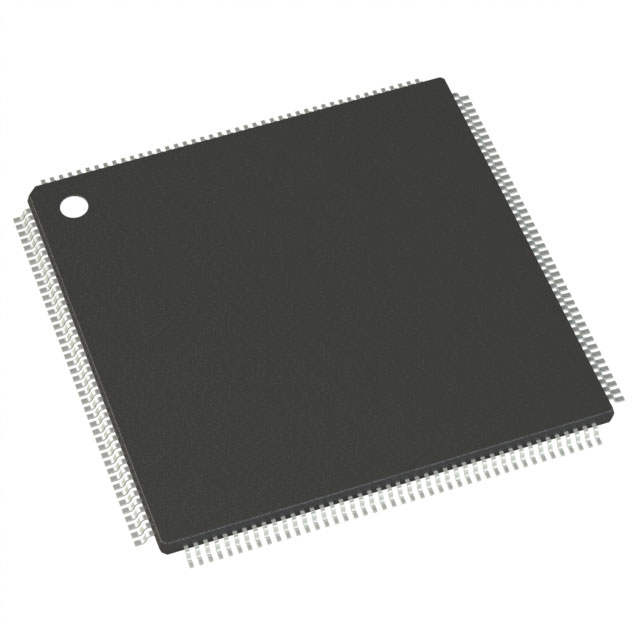

AT40K20AL-1BQU
| Part Description |
AT40KAL Field Programmable Gate Array (FPGA) IC 114 8192 1024 144-LQFP |
|---|---|
| Quantity | 37 Available (as of May 5, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | Microchip Technology |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheet |
Specifications & Environmental
| Device Package | 144-LQFP (20x20) | Grade | Commercial | Operating Temperature | 0°C – 70°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 144-LQFP | Number of I/O | 114 | Voltage | 3 V - 3.6 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | ROHS3 Compliant | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 3 (168 Hours) | Number of LABs/CLBs | 1024 | Number of Logic Elements/Cells | 1024 | ||
| Number of Gates | 30000 | ECCN | 3A991D | HTS Code | 8542.39.0001 | ||
| Qualification | N/A | Total RAM Bits | 8192 |
Overview of AT40K20AL-1BQU – Field Programmable Gate Array (FPGA), 1,024 logic elements, 8,192-bit RAM, 144-LQFP
The AT40K20AL-1BQU is an SRAM-based FPGA from the AT40KAL family, manufactured by Microchip Technology. It provides a mid-range programmable fabric with 1,024 logic elements, approximately 8,192 bits of distributed on-chip RAM, and up to 114 I/O pins in a 144‑LQFP surface-mount package.
Designed for high-performance, reconfigurable logic tasks, the device targets DSP-accelerated processing and multimedia functions where on-chip RAM, fast clocking and in-system reconfigurability are beneficial. Its combination of distributed 10 ns SRAM, cache-logic reconfiguration capability and array multiplier support addresses use cases that require adaptable arithmetic and memory resources.
Key Features
- Core Logic 1,024 logic elements (cells) delivering approximately 30,000 equivalent gates for mid-range programmable logic integration.
- Embedded Memory (FreeRAM) Approximately 8,192 bits of distributed SRAM usable as single/dual-port, synchronous or asynchronous memory with 10 ns access characteristics.
- I/O and Package 114 I/O pins in a 144‑LQFP (20 × 20 mm) surface-mount package, supporting flexible pin assignments for board-level integration.
- Clocking Architecture includes support for global clock resources (8 global clocks as specified for the AT40KAL family) enabling low-skew clock distribution and controlled clock management.
- Reconfigurability (Cache Logic) Supports dynamic full or partial in-system reconfiguration (Cache Logic), enabling unlimited re-programmability via serial or parallel modes for adaptive designs.
- On-chip Multiplier Support Cell-to-cell connections and array multiplier structures enable efficient implementation of arithmetic functions used in DSP and signal processing.
- Power and I/O Levels Supply range 3.0 V to 3.6 V with documented 3.3 V operation; family-level documentation also indicates 5 V I/O tolerance where applicable.
- Commercial Grade & RoHS Commercial temperature grade (0 °C to 70 °C) and RoHS compliant.
Typical Applications
- DSP and Coprocessor Acceleration Implement FFTs, FIR filters and other arithmetic-heavy functions to offload processors and improve system throughput.
- Video and Multimedia Processing Use embedded SRAM and array multipliers for tasks such as compression, decompression, and format-specific transforms.
- Encryption and Signal Processing Implement custom crypto engines, convolvers and other high-speed data-path logic where reconfigurability enables rapid algorithm updates.
- Adaptive and Reconfigurable Systems Systems that benefit from partial or full in-field reconfiguration for feature updates or runtime optimization.
Unique Advantages
- Flexible On-chip RAM Distributed FreeRAM architecture provides low-latency, 10 ns accessible memory without consuming standard logic resources, simplifying FIFO and scratch-pad implementations.
- In-System Reconfigurability Cache Logic enables dynamic partial or full reconfiguration, allowing design adaptation and rapid updates without removing the device from the board.
- Efficient Arithmetic Resources Built-in array multiplier topology and dense cell interconnects allow compact, high-speed implementation of DSP kernels.
- Board-level Integration 144‑LQFP surface-mount package with 114 I/Os supports straightforward PCB integration and pin assignments for a variety of systems.
- Commercial Temperature and RoHS Compliance Designed for commercial deployments with documented 0 °C to 70 °C operation and RoHS conformity for modern manufacturing.
Why Choose AT40K20AL-1BQU?
The AT40K20AL-1BQU positions itself as a capable mid-range FPGA solution for designs that require on-chip SRAM, reconfigurability and efficient DSP building blocks. Its blend of 1,024 logic elements, approximately 8,192 bits of distributed RAM and support for in-system partial reconfiguration makes it suitable for embedded signal processing, multimedia acceleration and adaptable logic functions.
For engineers and procurement teams seeking a RoHS-compliant, commercial-grade FPGA in a 144‑LQFP package with well-defined supply and thermal parameters, this device offers a balanced combination of performance, memory flexibility and board-level integration characteristics.
Request a quote or submit a procurement inquiry to receive pricing, availability and lead-time information for the AT40K20AL-1BQU.
